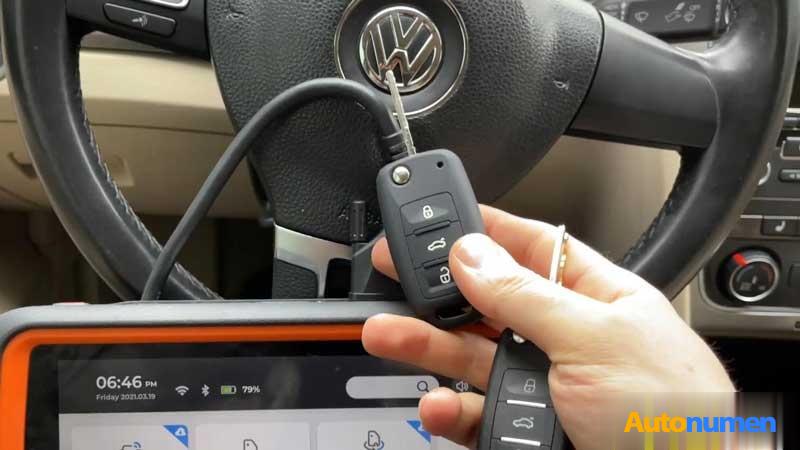

Here is a Volkswagen Passat 2015 original key & a new key, need to program the new key with Xhorse VVDI Key Tool Plus Pad via OBD.
Connect VVDI Key Tool Plus with OBD, let’s start:
1 Read & Save Data (EEPROM, IMMO)

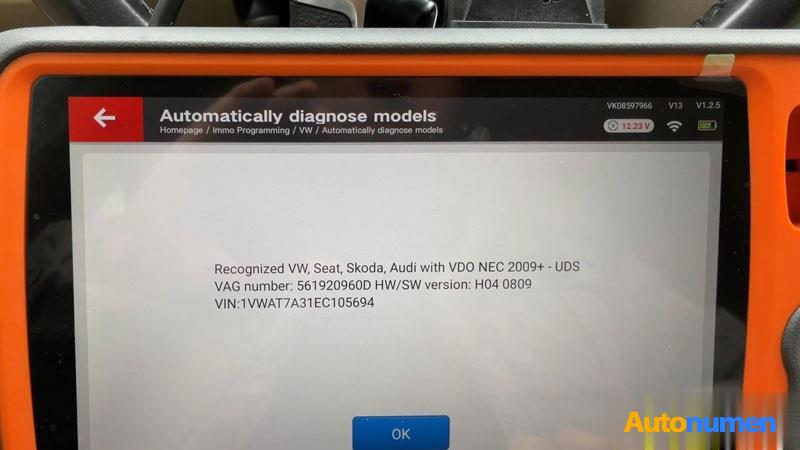

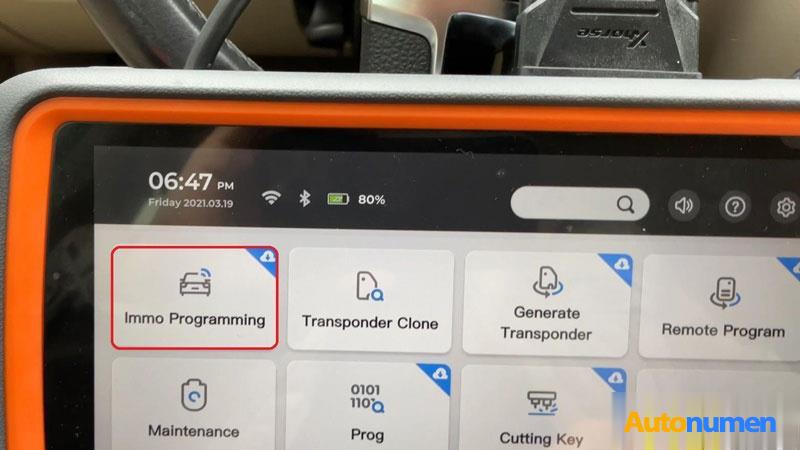

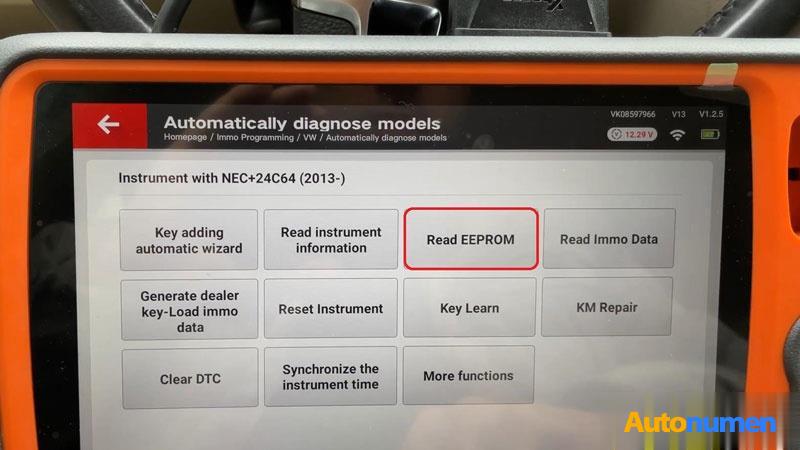

Immo programming >> Europe >> VW >> Automatically diagnose models >> Start programming >> OK >> Read EEPROM
Switch on with working key before press “OK”.
If car has keyless GO, put the working key nearby car coil and switch on.
Follow the notes to operate in next steps, press “OK”.
Note: the dashboard will remain dark until “Reset Instrument”.

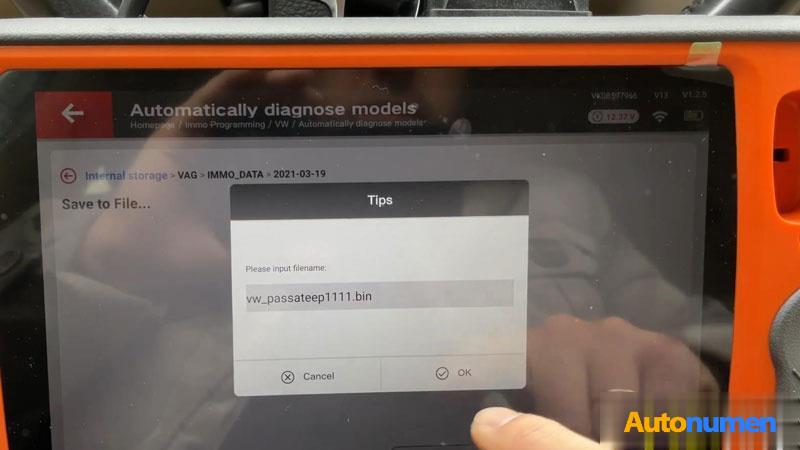

OK >> OK >> Save here >> Rename, OK
Save file success.

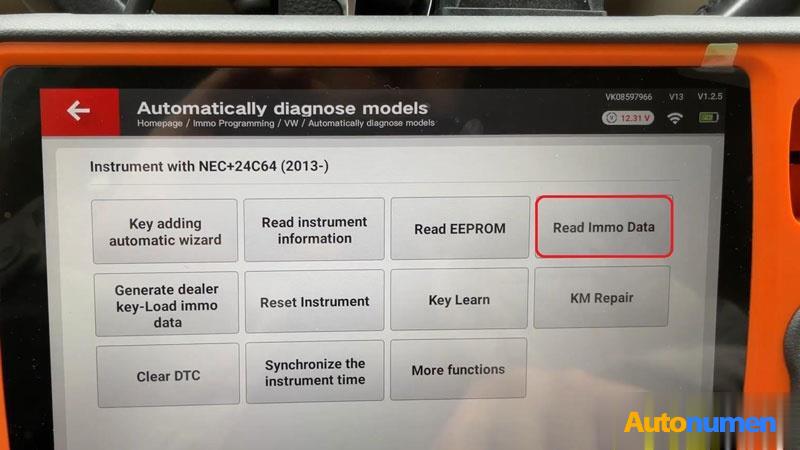

Read immo data >> Continue >> OK >> OK >> Save here >> Rename, OK
Save file success.
2. Make Dealer Key & Key Learn

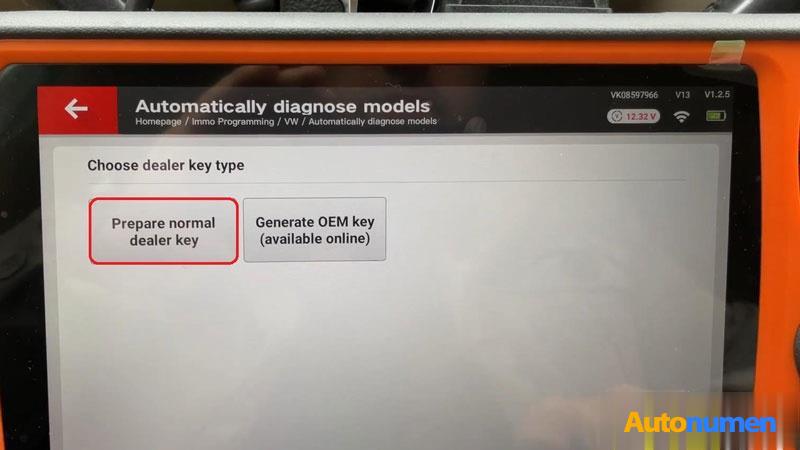

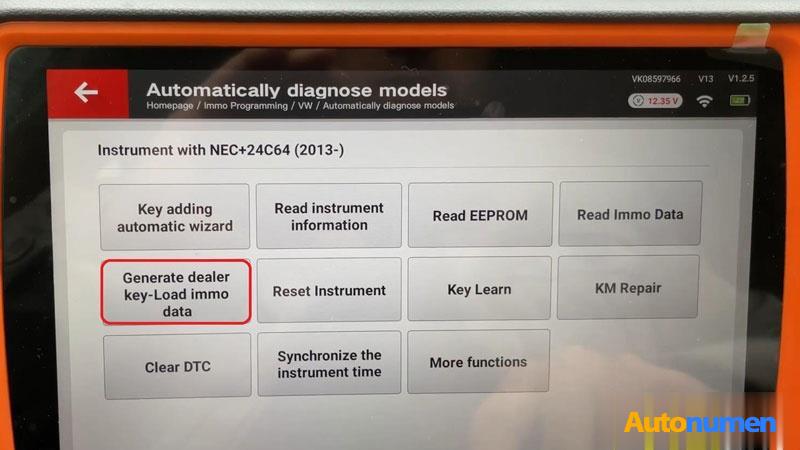

Generate dealer key – load immo data >> Select data file, open >> Continue >> Prepare normal dealer key >> Yes

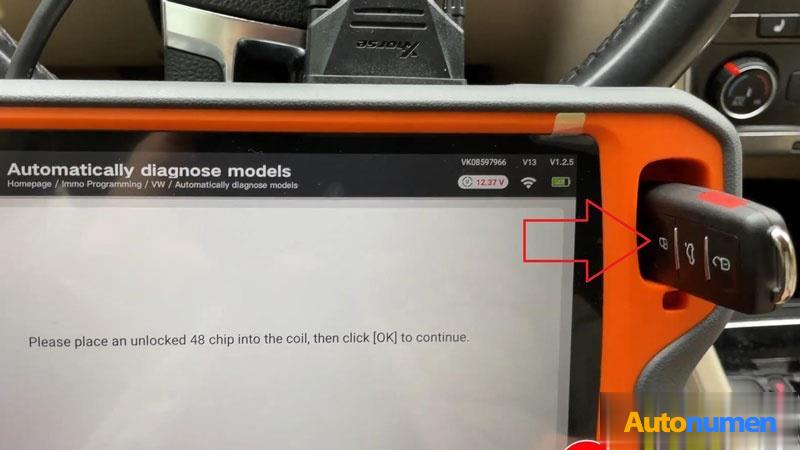

Please place an unlocked 48 chip into the VVDI Key Tool Plus coil, press “OK”.
Key make okay and locked!

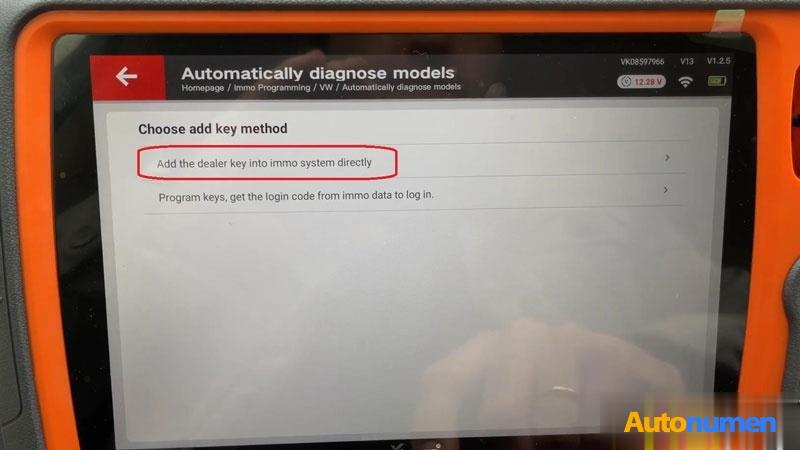

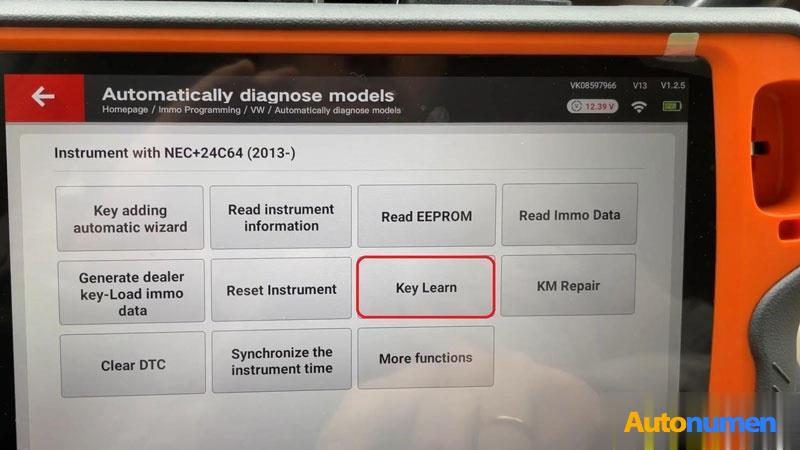

Key learn >> Yes >> Add the dealer key into immo system directly

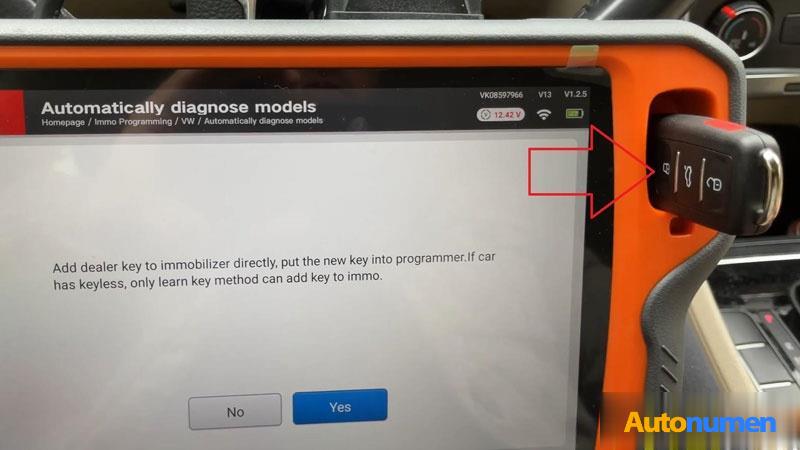

Put the new key into Key Tool Plus programmer. If car has keyless, only learn key method can add key to immo.
Press “Yes”.
Add key success. Reset instrument after all operation is finished.

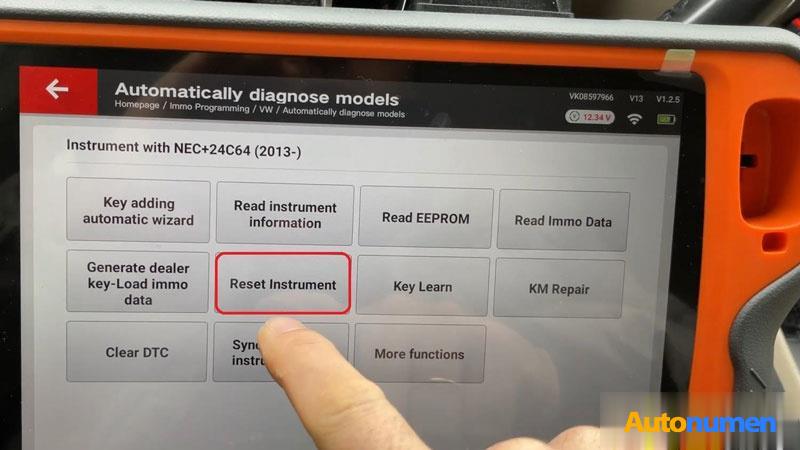

Press “Reset Instrument”.
Reset success.
3. Program Remote
Go back to

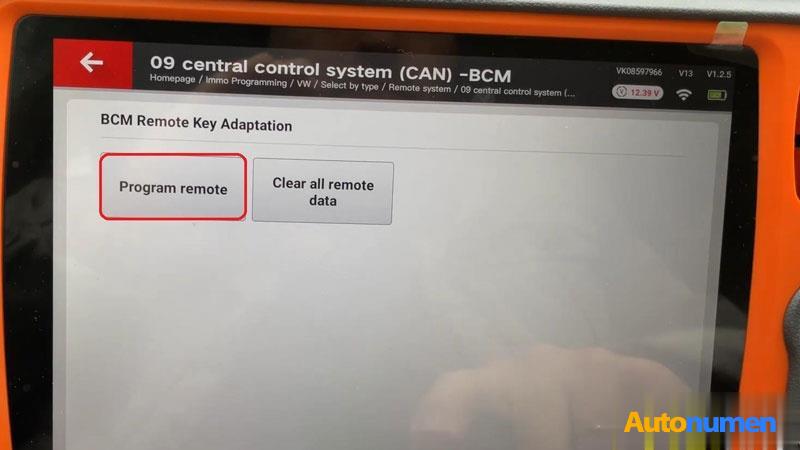

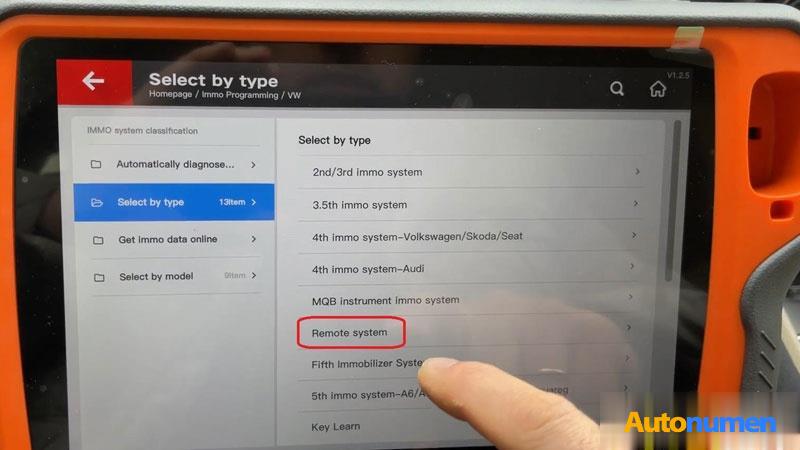

Select by type >> Remote system >> 09 central control system (CAN) – BCM >> Start programming >> Program remote
Learn remote control. You need prepare all key that you want to learn remote control.
The key will not remote control car if it is not learned.
Press “OK”.
Input learning key numbers, press “OK”.

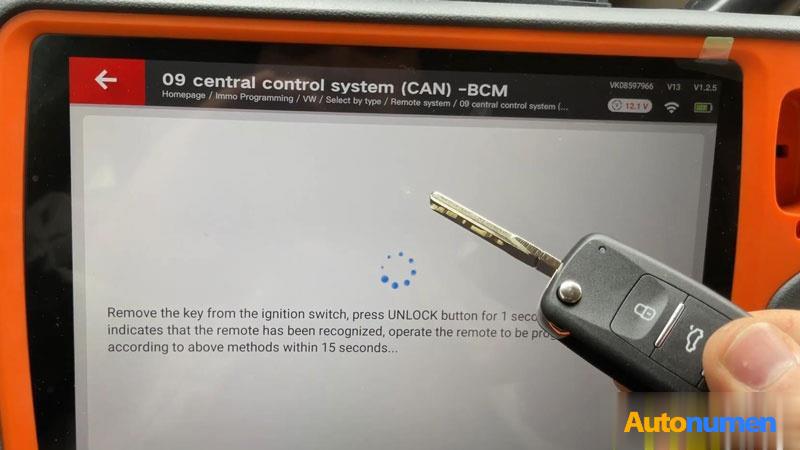

Remove the key from the ignition switch, press UNLOCK button for 1s, double flashing indicates that the remote has been recognized, operate the remote to be programmed in order according to above methods within 15s…
Remote control completed!
Note: some vehicles can only match one key at a time. If need to program multiple keys, please perform this function again.
Let’s test the key now, both can work well.
Adding key has done!
2015 VW Passat key programming via Xhorse Key Tool Plus is successful!
