Used Xhorse VVDI Key Tool Plus Pad to unlock Nissan Micra smart key, it worked like a charm!
It’s Nissan smart key.

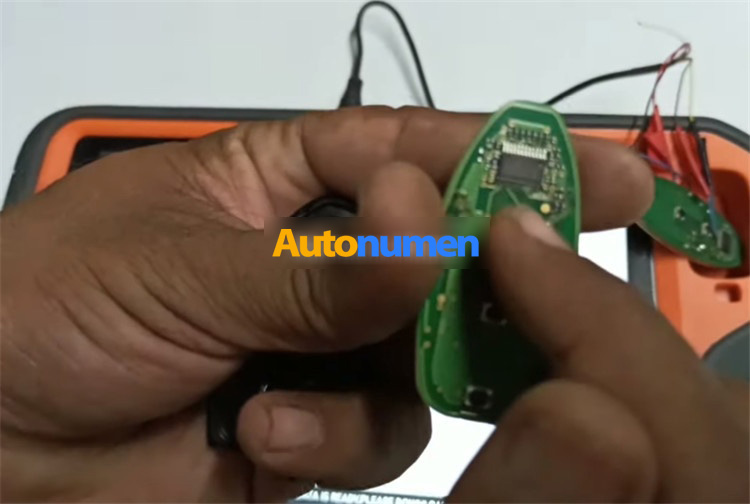

Open the key shell and take out the PCB
Connect the PCB with Key Tool Plus properly with the professional cable
Put it into the keyhole of Xhorse Tablet
Select “Transponder Clone” on the VVDI Key Tool Plus Pad main menu

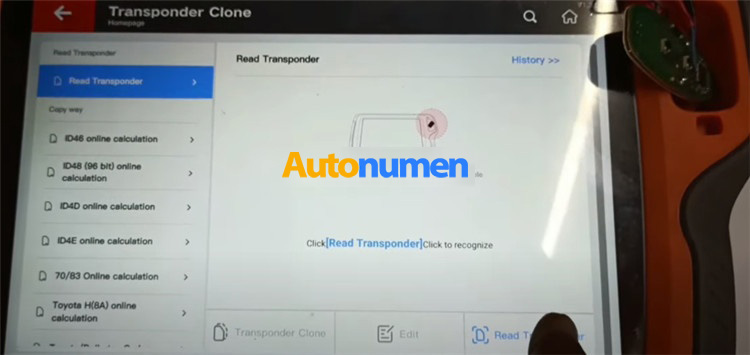

Click “Read Transponder”

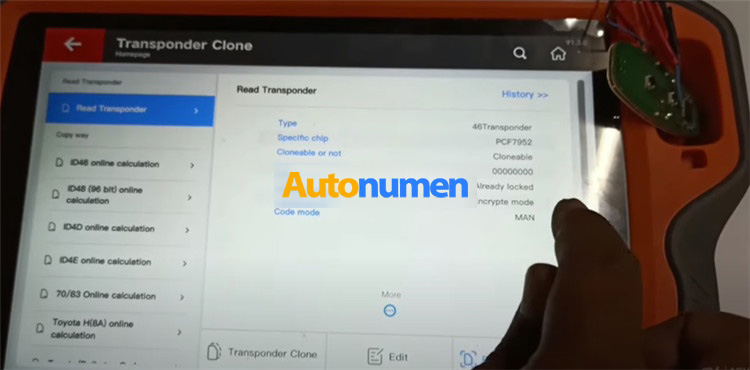

Read out the transponder info
It’s a 46 transponder (PCF7952) and already locked.
Back to the main menu and select “Special Function”

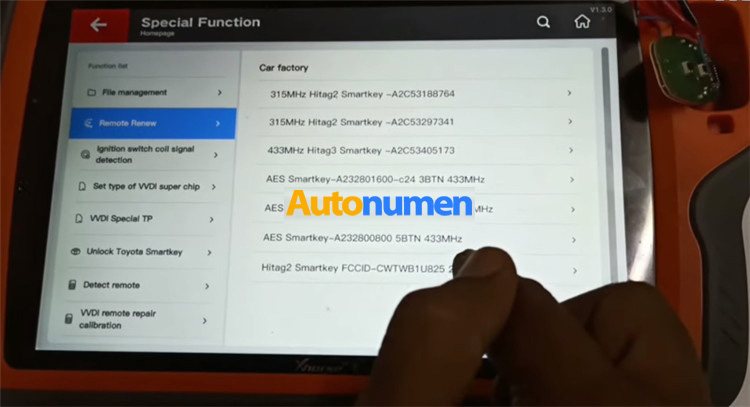

Tap “Remote Renew”-> “Nissan”-> “Hitag2 Smartkey FCCID- CWTWB1U825 2BTN”

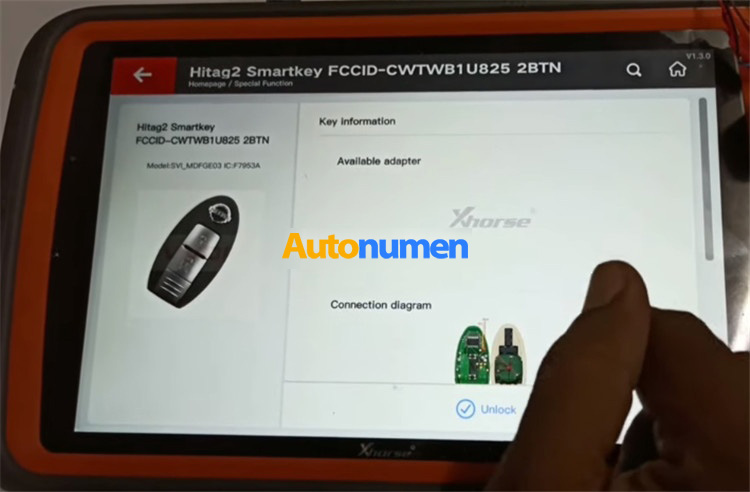

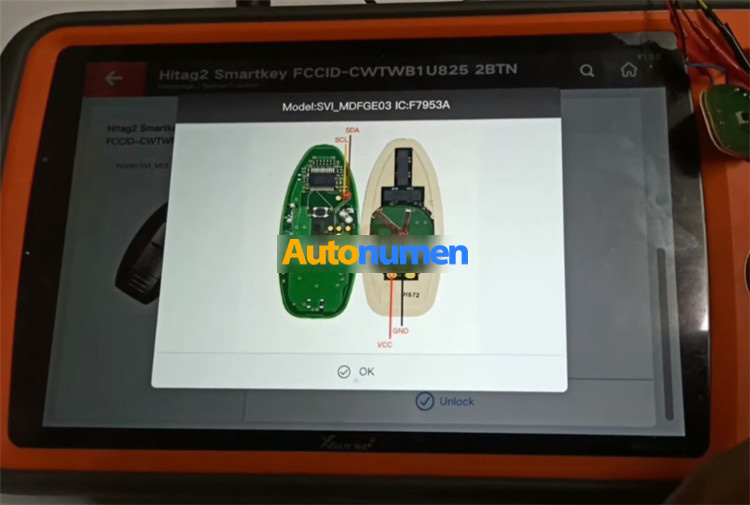

You can see the correct connection diagram.
Click “Unlock” to continue

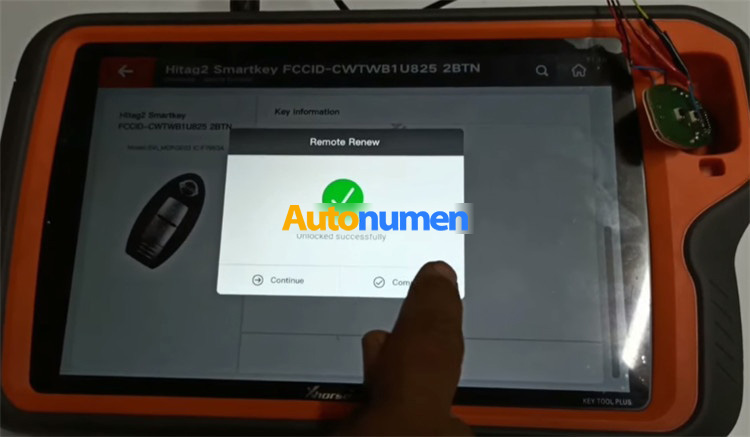

Unlock the key successfully
Disconnect the wiring cable and make sure the key PCB is put into the keytool plus coil properly
Then read transponder again
Now the transponder state is “Already locked”.
Awesome! Xhorse Key Tool Pad can successfully unlock Nissan Micra Smart Key!
