Volkswagen Tiguan DSR System Programming via Launch X431

Vehicle in high speed when horizontal wind will affect the stability of vehicle, the DSR’s role is to generate a support torque, can help the vehicles to meet horizontal wind improve vehicle stability (steering system, the first area 003 groups of data flow value is 0 indicates the DSR is not active, 1 said DSR activation).Here show you the method how to use Launch X431 to activate DSR system for Volkswagen Tiguan 2003.

Before testing, please follow instructions as follow

– If the vehicle equipped with manual transmission, please step down and release the clutch pedal.

– Vehicle keeping static.

The parking brake must be applied.

– For the manual transmission, Change the shift lever to a neutral position

For the auto transmission, Change the shift level to P position.



Operation Procedures:

  1. Switch on the ignition;
  2. Select VW v27.71 above;

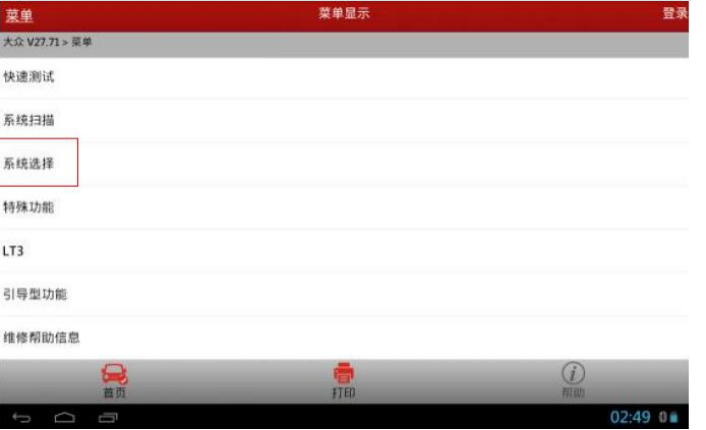

  3. Select system selection

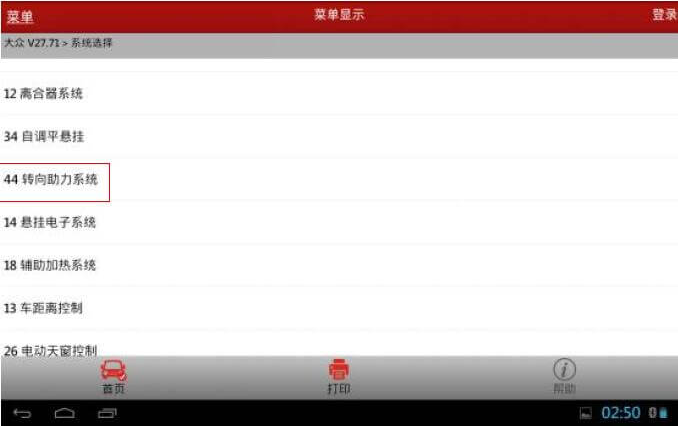

  1. Select 44 Steering booster system

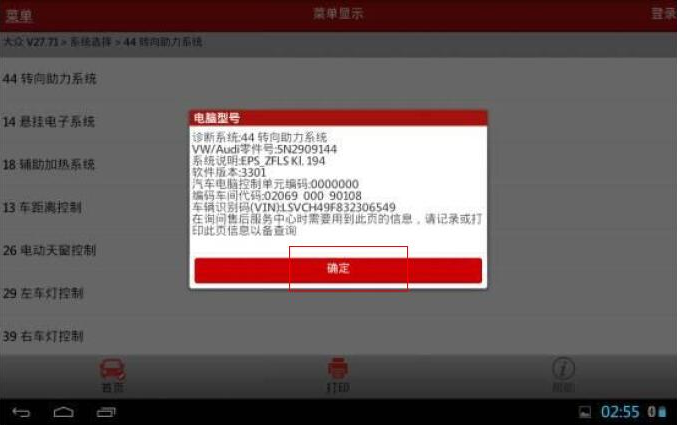

  1. Prompt Version information

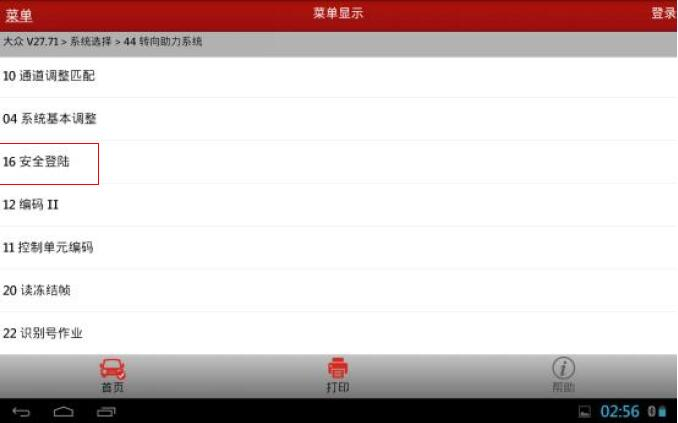

  1. Select 16Secure login

  1. Input login password:51541

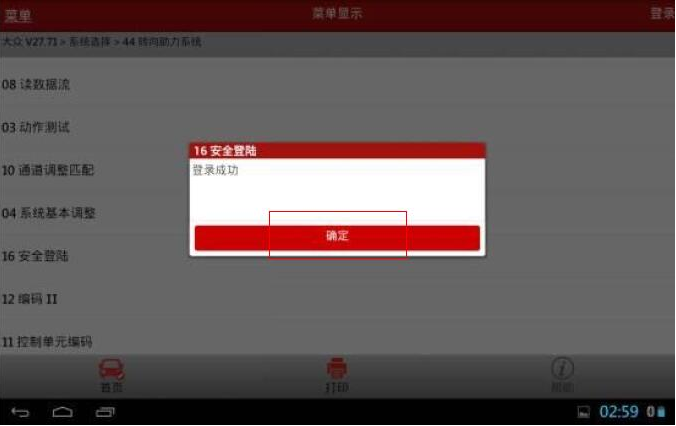

  1. Execute [secure login], and prompt login success,

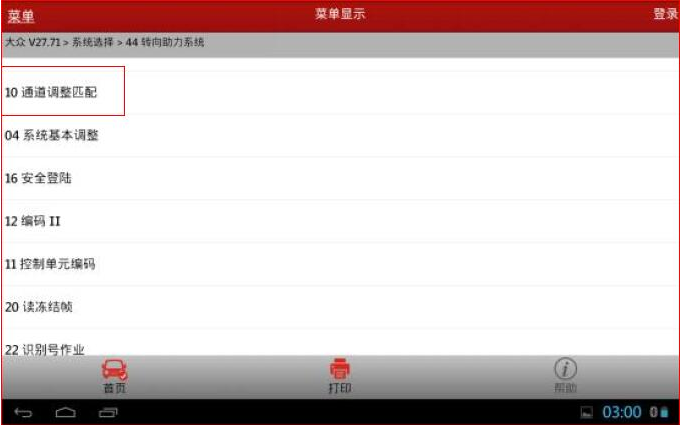

  1. Select [10 channel adjustment match

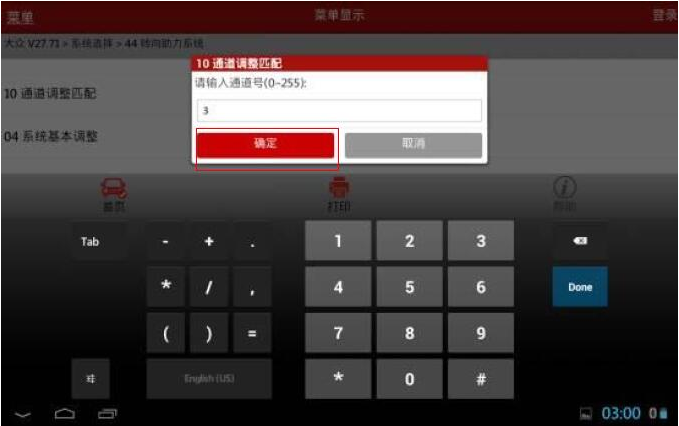

  1. Input Chanel number:3,

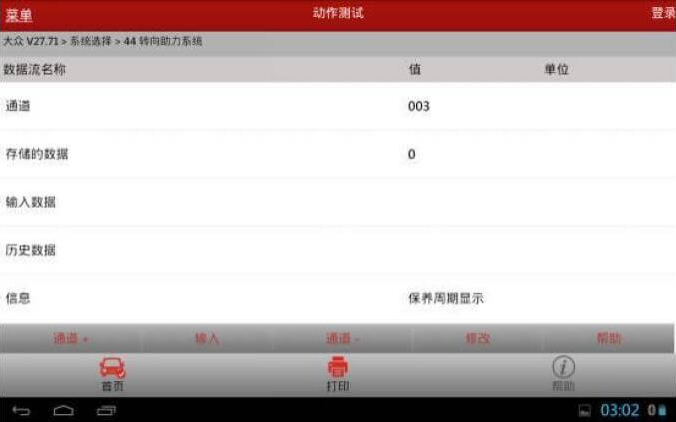

  1. Click”confirm”display data stream

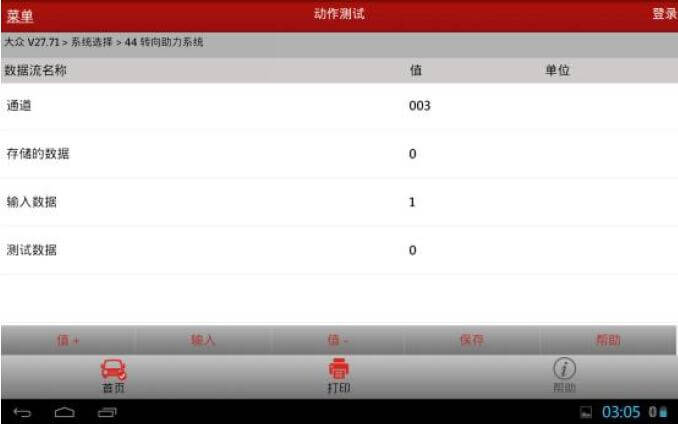

  1. Click [modify] and click [value +] to display the input data and test data

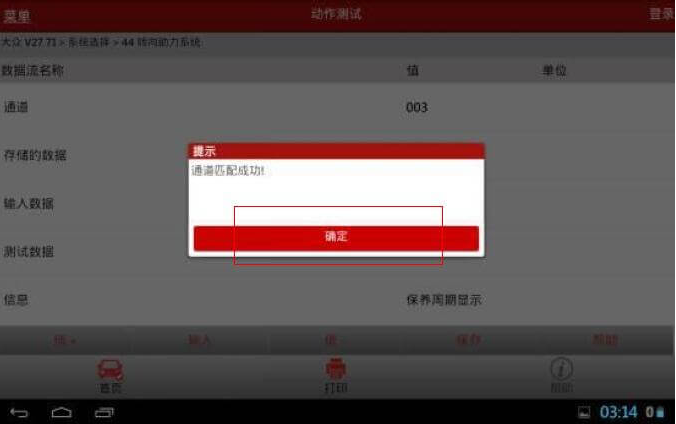

  1. Click [save] to show that the channel matched successfully
