Latest Version X-PROG Box V6.12 with USB Dongle
New Xprog V6.12 more functions than old version,New Generation Hardware, runs more steady and faster than old version.

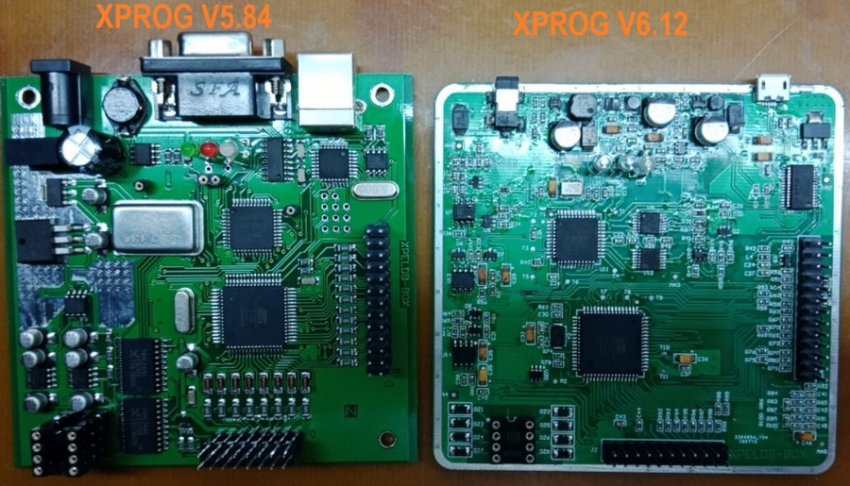

XPROG V5.84 PCB VS XPROG V6.12 PCB
XPROG-M V6.12 Highlights:
1. Latest Software Version: V6.12, Firmware: V4.4
2. With USB Dongle, No need activation
3. Add new authorization: AUTH-0028-3 Renesas RL78 Authorized and AUTH-0028-4 Renesas M32C Authorized
4. Operating System: WinXP/Win7/Win8
5.Language: English only
Notice:
1. XPROG V6.12 dongle isn’t compatible with older version Xprog. So you are not allowed to update from the older version Xprog V5.84 to this newest V6.12 XPROG-M Dongle.
2. Please make sure anti-virus program closed. Or X-prog software may be killed.
3. Disconnect the internet. If not, V6.12 XPROG-M hardware may be damaged.
4. Uninstall all the old version XPROG software before you install V6.12 software, because XPROG V6.12 hardware is not compatible with other version XPROG software.
5. Never try to UPDATE it, the hardware will be damaged if you try to update it online.
XPROG-M V6.12 Install Notice:
Please windows system required as below:
1. Windows system should be windows XP 32bit or windows7 64 bit, all the patch software for the windows system should be installed already and the windows properly works well.
2. The windows system should be with at lest 2 partitions (except the CD ROM.)
3. Can not be working with virtual harddisk.
XPROG-M 6.12 Installing Steps:
1. Click the file “installation.reg”, get the file information to the regedit.
2. Install the file “AdbeRdr11000_zh_CN.exe”, it is a must, otherwise the Xprog software will not start.
3. Plug the Xprog main interface to the computer, install the USB driver.
4. Copy the folder “XPROG-BOX6.12” to the desktop, and open it, and run the “xprogdesktop.exe”, then software open.
XPROG M V6.12 Authorizations included:
AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)
AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
AUTH-0008 BMW EWS3 authorization
AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)
AUTH-0010 MB ZGS001 authorization
AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0020 ARM (Micronas, …) Family authorization (allows to read/write internal flash and external serial EEPROM)
AUTH-0021 ARM (Micronas, …) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage, Chassis number (VIN), serial number and PIN code).
AUTH-0023-1 MAC7xxx
AUTH-0023-2 XC23xx
AUTH-0024-1 MC9S12Cxx
AUTH-0024-2 MC9S12XE
AUTH-0024-3 9S12XE SECURITY
AUTH-0024-4 MC9S12HA/HY/P
AUTH-0025-1 MPC/SPC5xxx Authorized 2016/3/13
AUTH-0027-1 HC(S)908 update Authorized 2016/3/13
AUTH-0027-2 HC(S)908 sercurity Authorized 2016/3/13
AUTH-0028-1 Renesas V850 Authorized 2017/10/9
AUTH-0028-2 Renesas SuperH Authorized 2017/10/9
AUTH-0028-3 Renesas RL78 Authorized —New!
AUTH-0028-4 Renesas M32C Authorized —New!

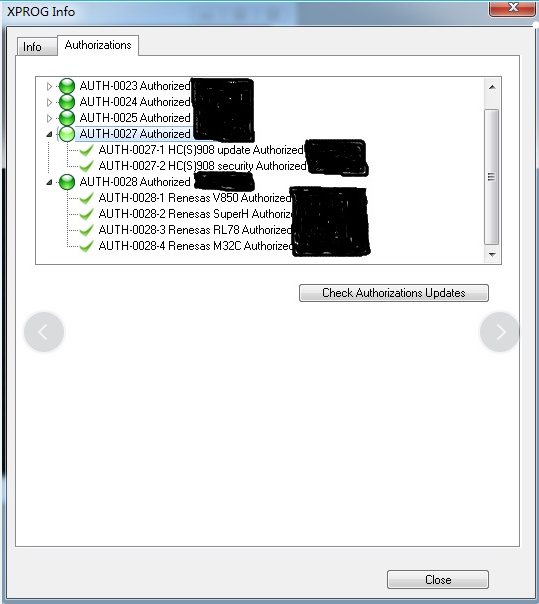

Xprog m 6.12 Newly added authorized:
AUTH-0028-3 Renesas RL78 Authorized
AUTH-0028-4 Renesas M32C Authorized
XPROG-M V6.12 Adapters included:
ADP-0001 TMS370 PLCC28 programming adapter
ADP-0002 TMS370 PLCC44 programming adapter
ADP-0003 TMS370 PLCC68 programming adapter
ADP-0004 Motorola HC05B/X PLCC52 programming adapter
ADP-0005 Motorola HC05B/X QFP64 programming adapter
ADP-0006 ST M35080 in-circuit programming adapter
ADP-0008 TMS374 family in-circuit programming adapter
ADP-0009 MC68HC05V12 programming adapter
ADP-0010 TMS374 on-board programming adapter
ADP-0011 HC11EA9/E9 programming adapter
ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter
Additional adaptor for 5M48H P-Flash
ADP-0019 Rev.A
EWS3 adaptor
EEPROM adaptor
QFP28 adaptor
QFP64 adaptor
QFP80 adaptor
QFP112 adaptor
QFP144 adaptor

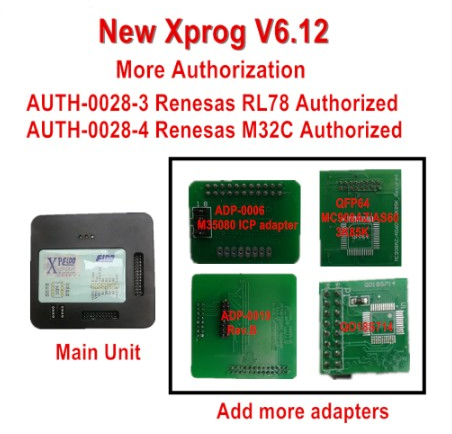

In addition, X-PROG V6.12 Newly Added 4 Adapters
ADP-0019 Rev.B —-New!
ADP-0006 M35080 ICP adapter —New!
QFP64 MC908AZ/AS60 3K85K adapter —New!
QO18S714 —New!

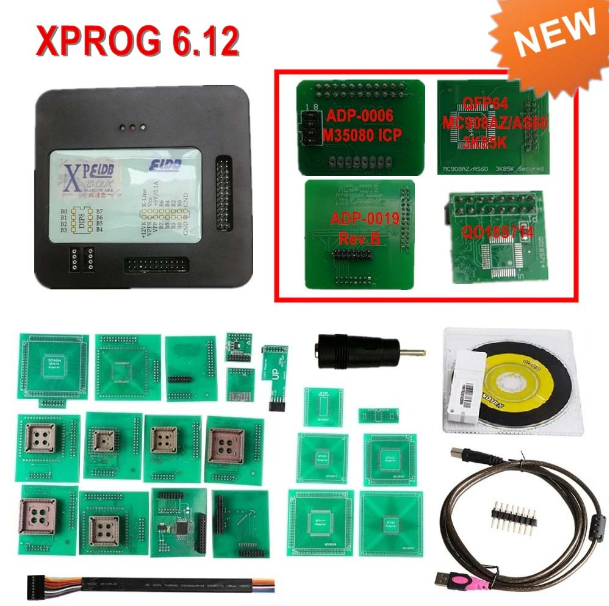

Package Includes:
1pc x XPROG-Box Hardware (Aluminum Enclosure)
19pc x Adapters Set
1pc x USB Cable
1pc x 16Pin cable
1pc x CD with XPROG-Box Software (V6.12)

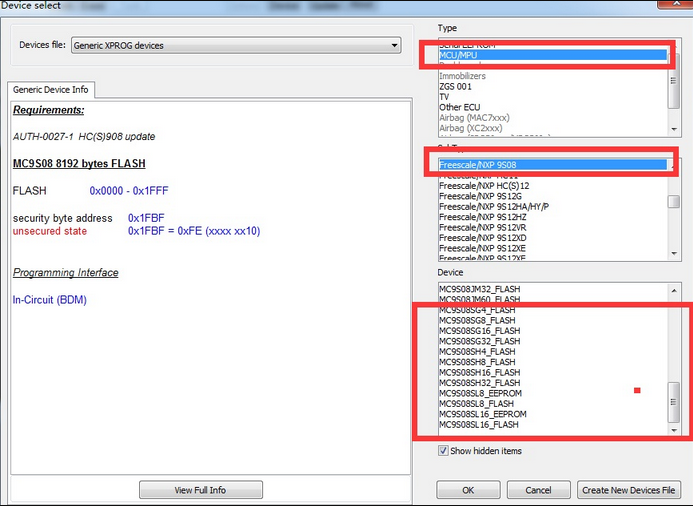

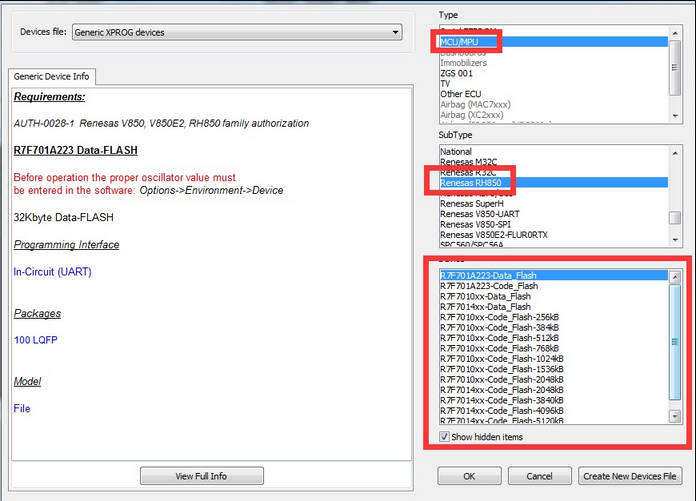

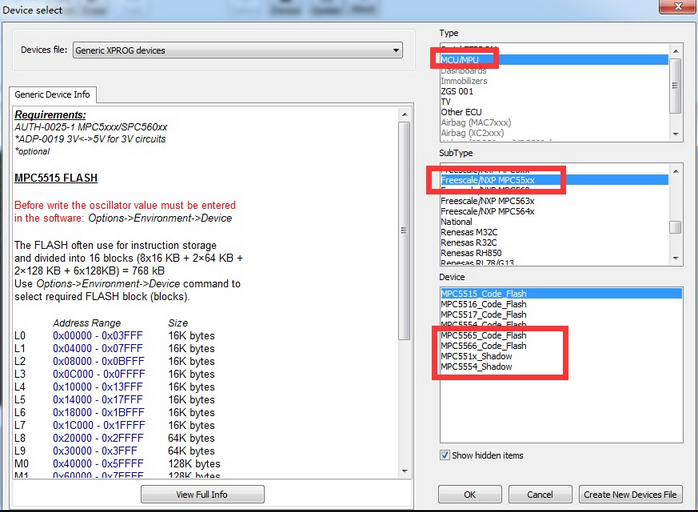

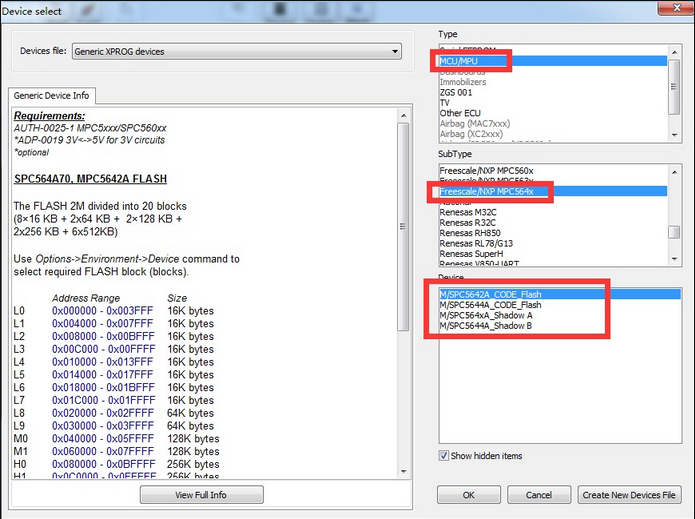

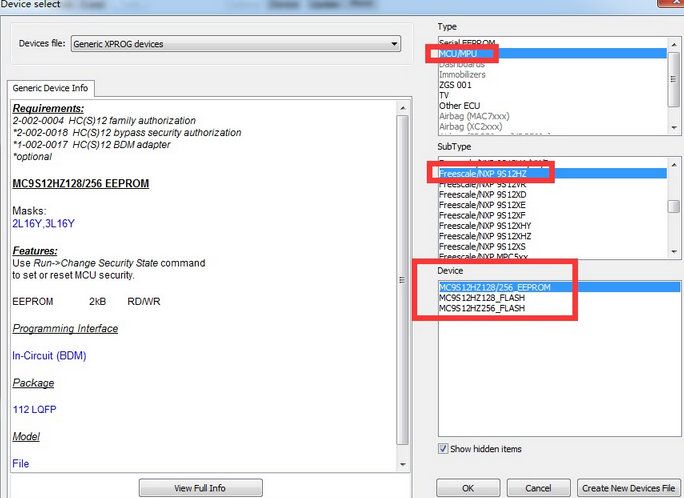

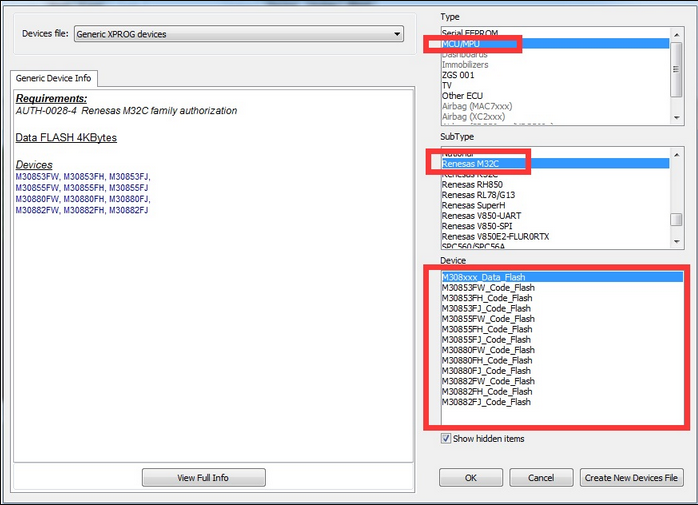

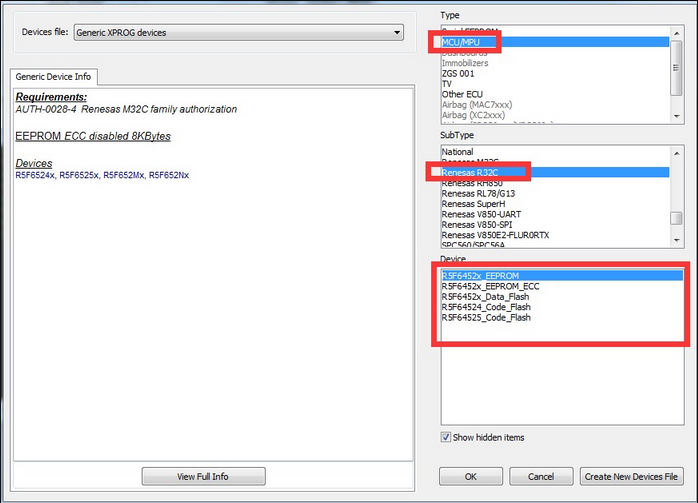

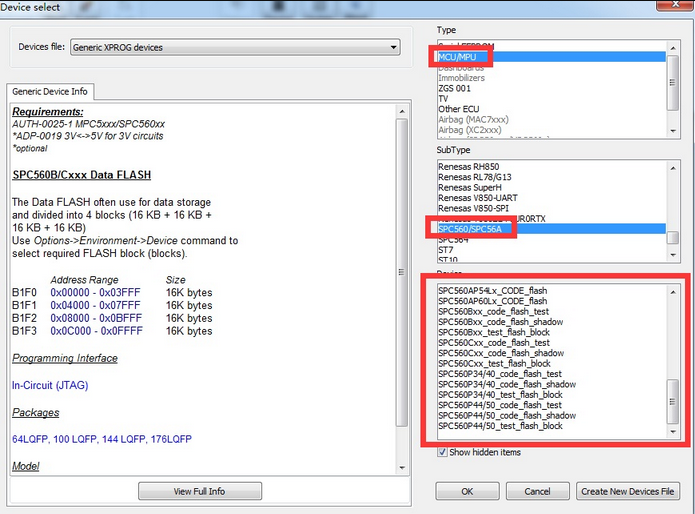

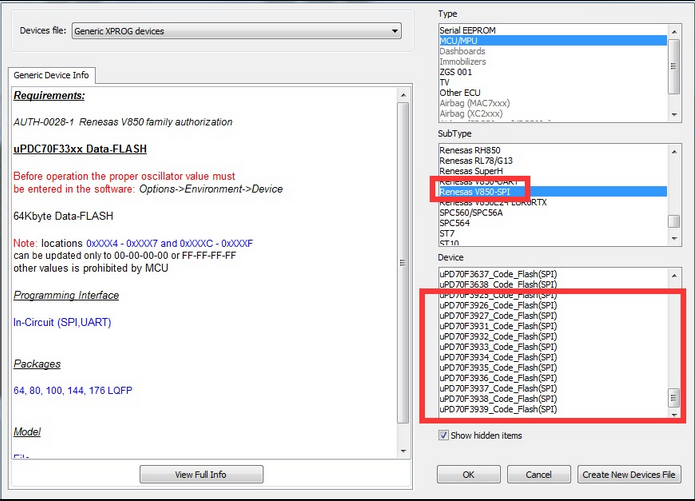

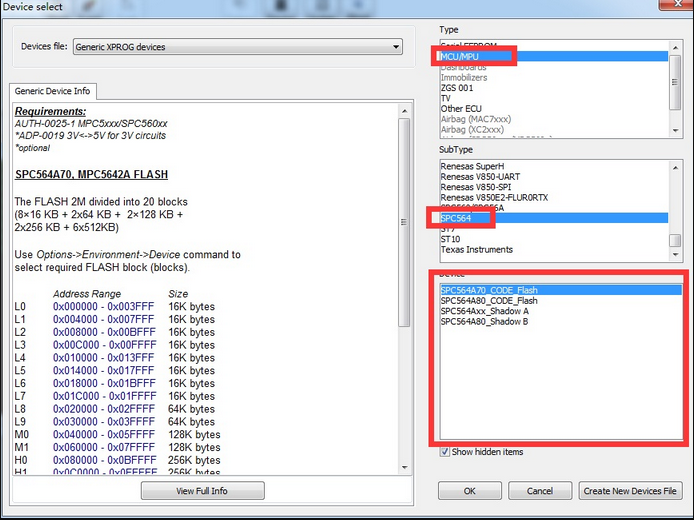

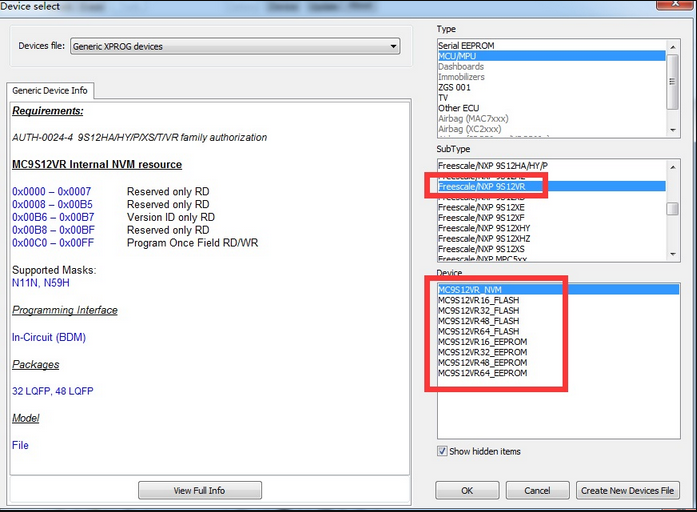

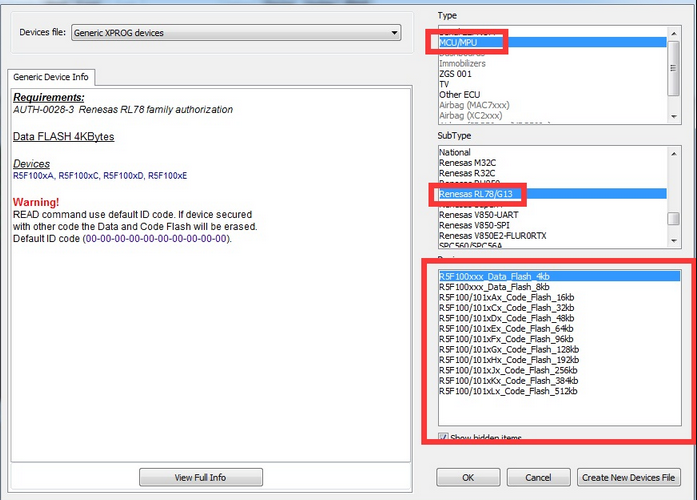

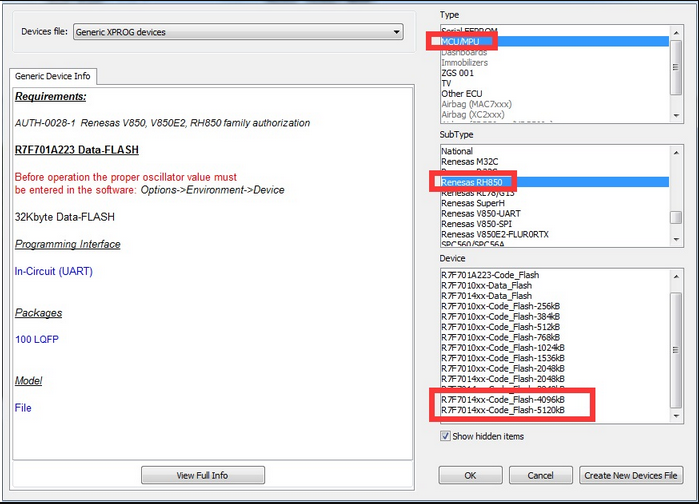

X-PROG Box V6.12 Software Display:
