Perkins EST Software Perform ECM Flash for 404F-22T Engine

In this instruction,Autonumen.com show you guide on how to use Perkins EST diagnostic software to perform ECM flash for Perkins 404F-22T engine.

Preparations:

Perkins EST 2023A & 2019A Software Free Download

How to Install & Activate Perkins EST Diagnostic Software

Perkins 2306C-E14 Engine ECM Flash by Perkins EST Diagnostic Tool

Procedures:

Connect Perkins EST interface to ECM and then run Perkins EST diagnostic software

After communication build,click “Service”–>”Copy Configuration”–>”ECM Replacement”

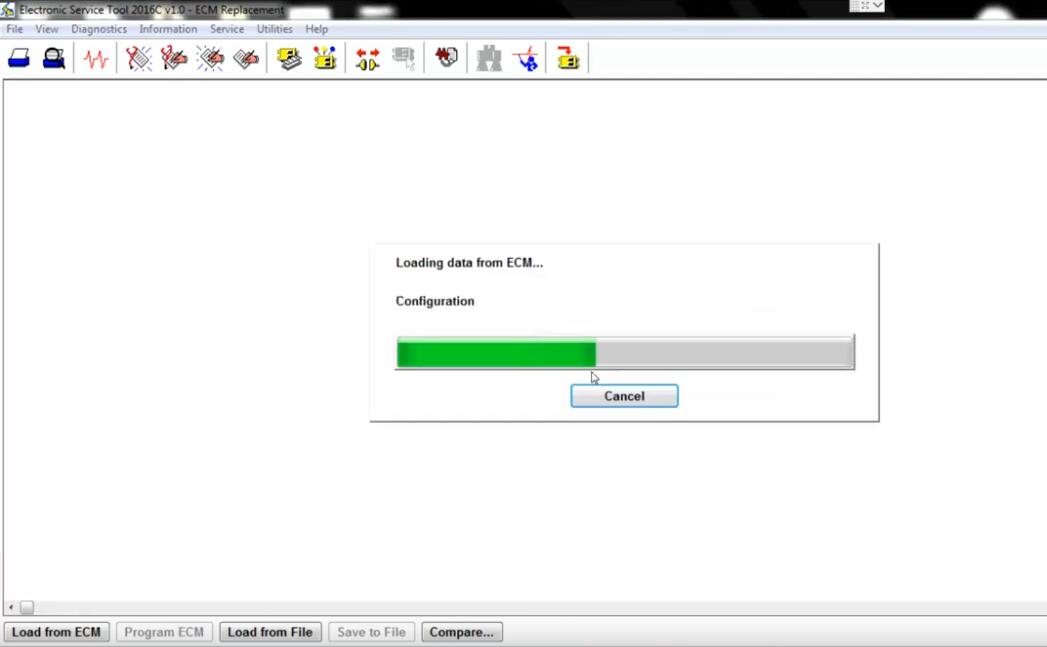

Here we load the data from ECM,and save the data on your PC

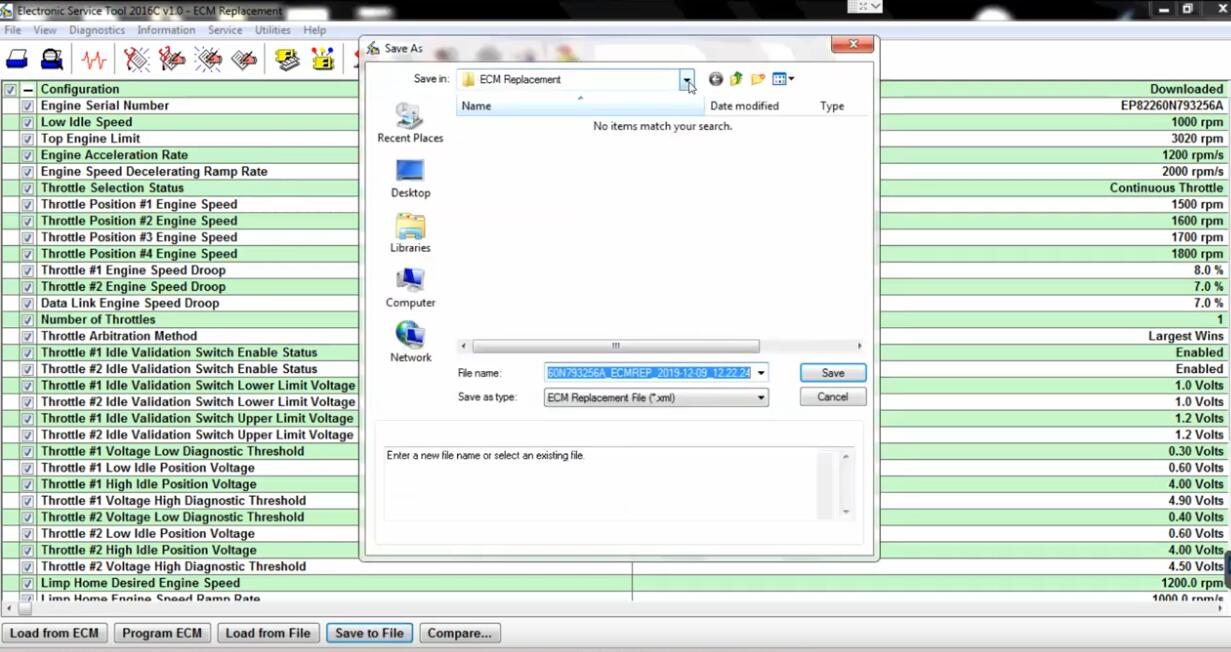

Click “Save to File”

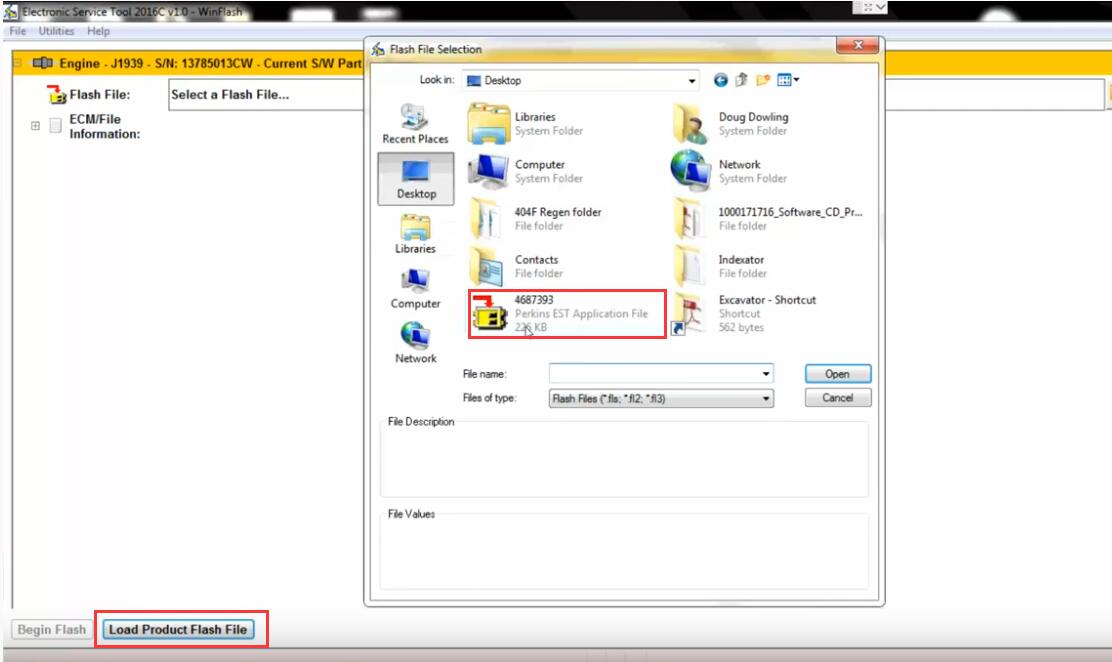

Now we go to Flash window,click “Load Product Flash File”,then select flash file.(Go to Perkins.com official to download or Perkins Engine ECM Flash Collection )

After then it will show you

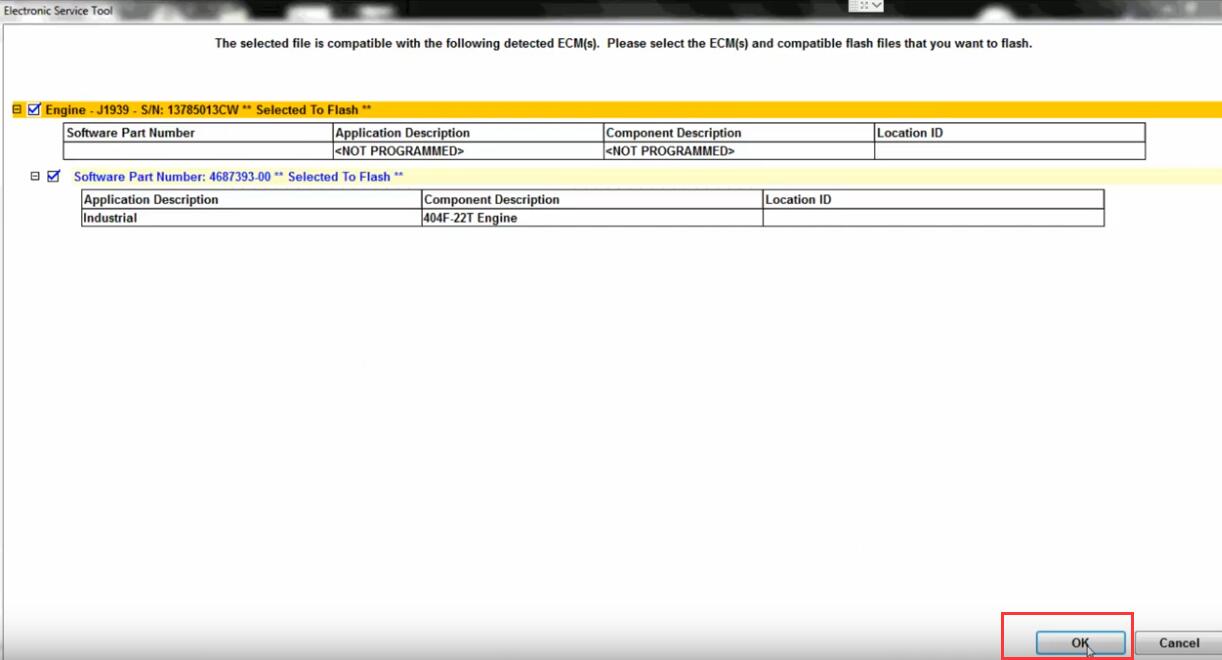

“The selected file is compatible with the following detected ECM(s).Please select the ECM and compatible flash file that you want to flash”

Click “OK”

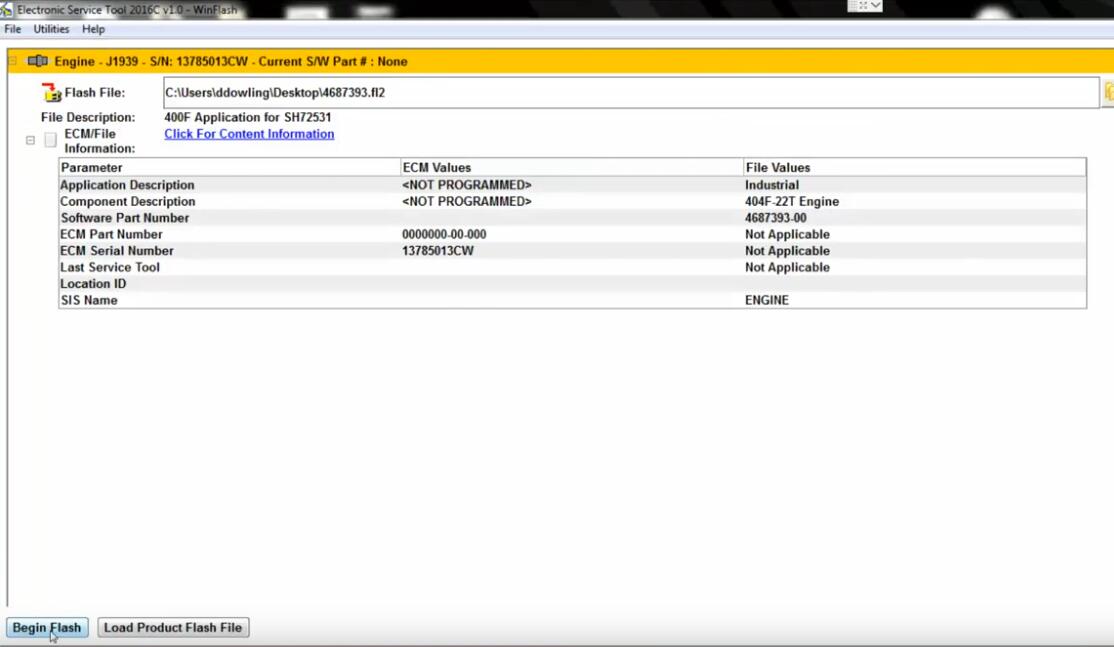

Click “Begin Flash”

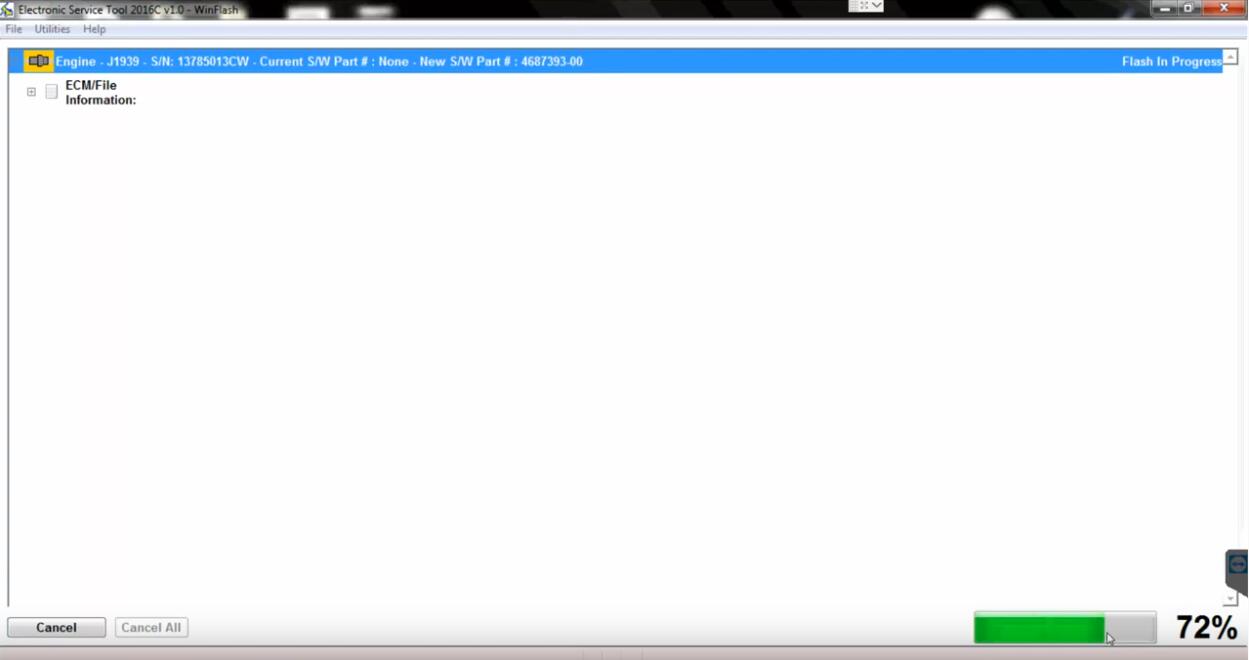

Wait flash process

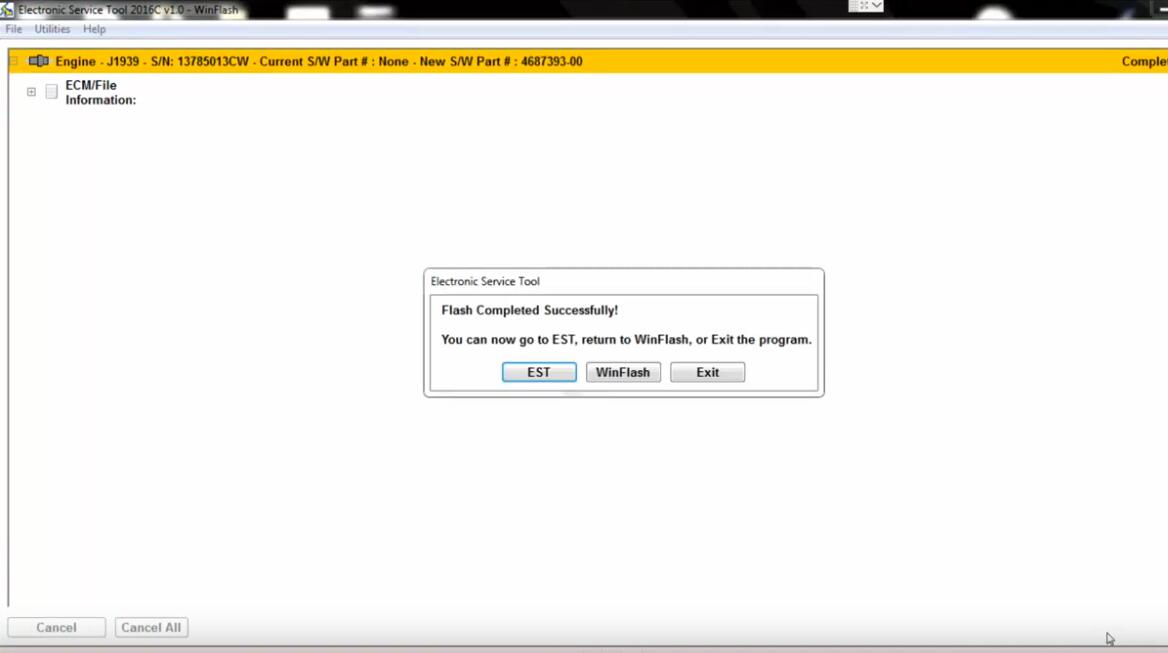

Flash Completed Successfully!
