Perkins 2306C-E14 Engine ECM Flash by Perkins EST Diagnostic Tool

Here is a instruction show you steps on how to use Perkins EST diagnostic software to do ECM flashing for Perkins 2306C-E14 engine.

Procedures:

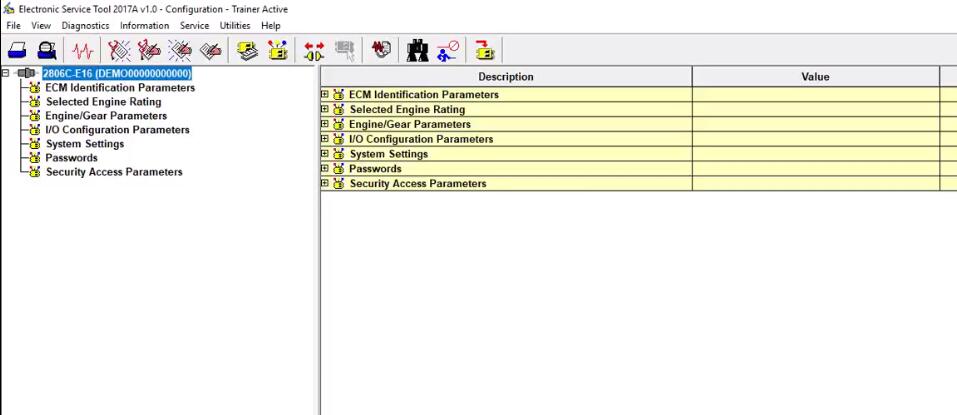

Connect Perkins EST interface to Perkins 2806C-E16 Engine ECM,the run software to identification

Click Flash button,it will ask “Do you want to perform ECM Replacement before running the WinFlash utility?”.Click “Yes” to continue

Connection

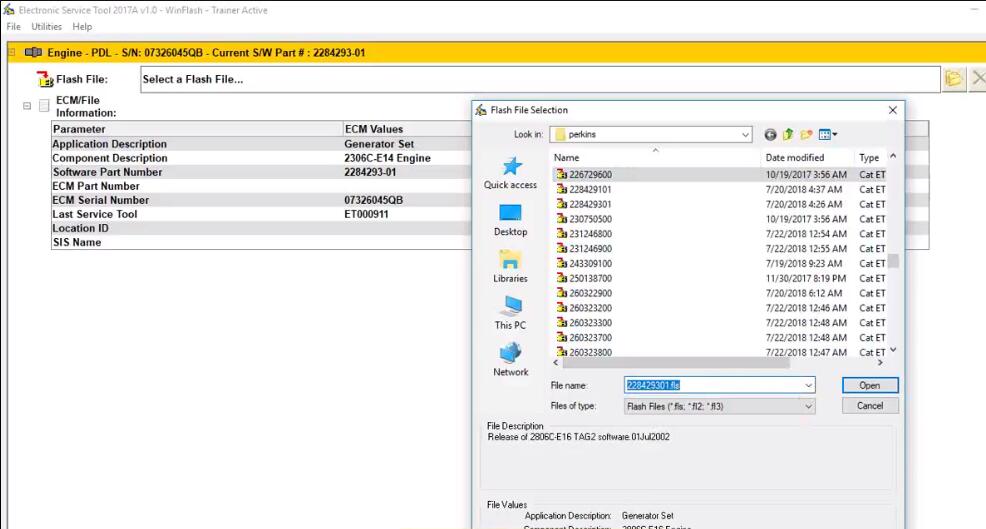

After then select a “Flash File”,then click “Begin Flash”

Wait for flashing proceed..

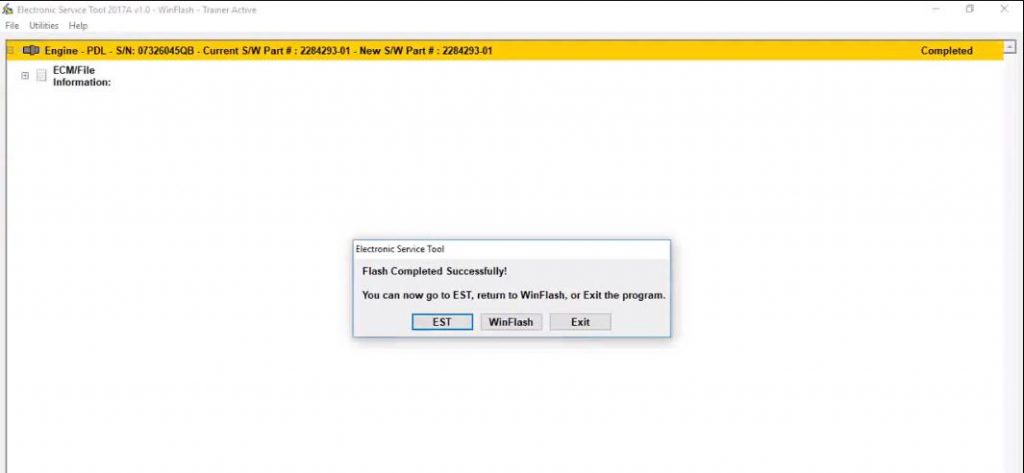

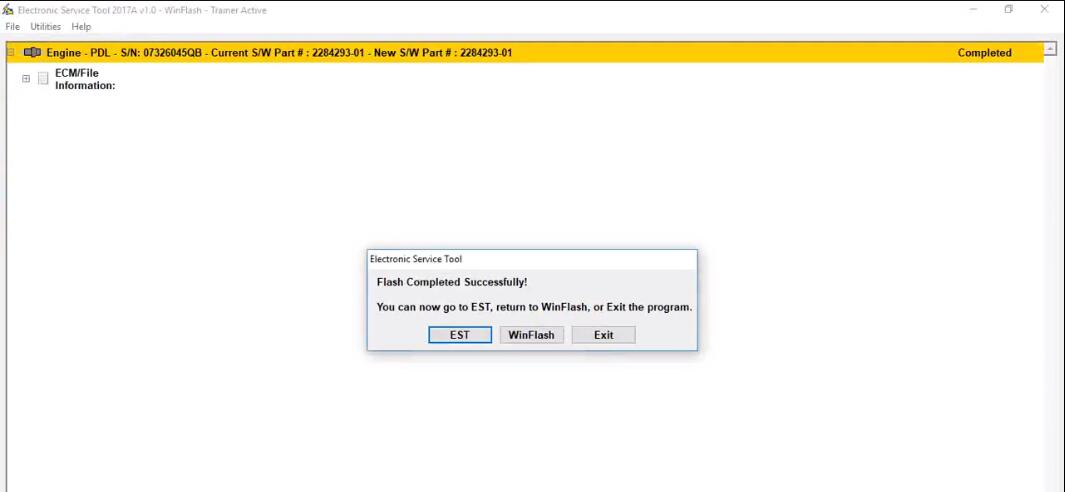

Flash Completed Successfully!

You can now go to EST,return to WinFlash,or Exit the program

Done!
