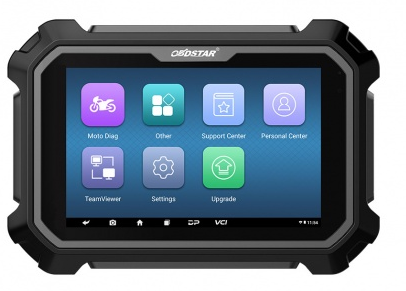

The Factory had conform that OBDSTAR MS80 Motorcycle scanner could work well in BMW all systems diagnosis. Here share the related test reports.
Test 1: diagnose 2018 BMW S1000R
Test 2: Diagnose 2015 BMW R1200 Motorbike
https://www.youtube.com/watch?v=VYgb2OvoMWw
Connection:

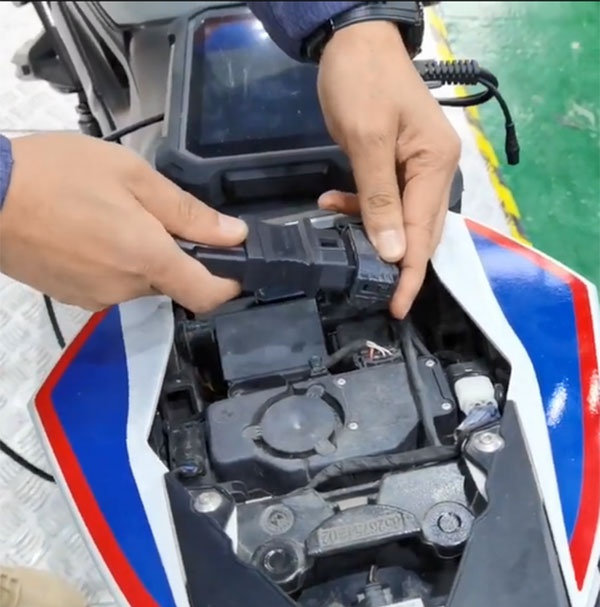

1. Use the main cable to connect OBDSTAR MS80 to the OBD2 port of BMW Motorbike (located under the back seat)
Operation:
Step 1: Start the Motor and the MS80 tablet will start automatically

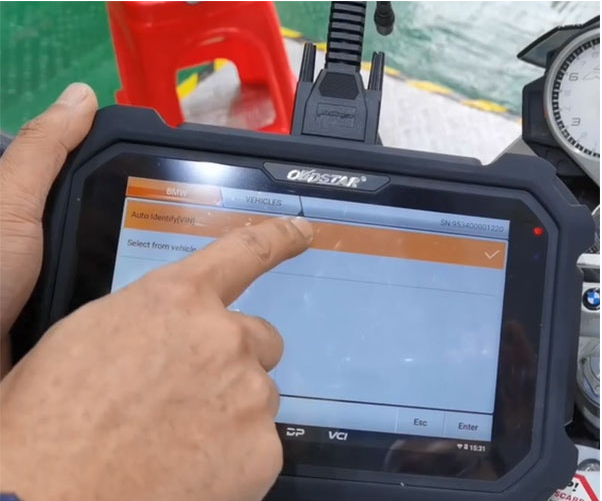

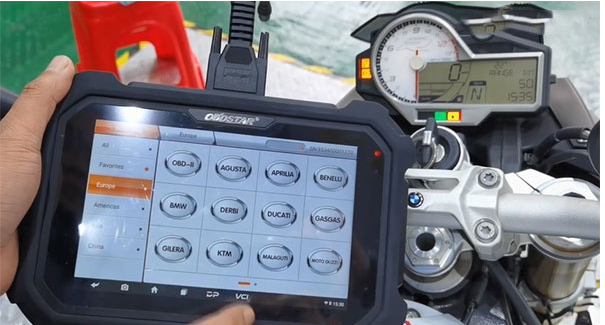

Step 2: Tap “DP” – > “Moto Diag” -> “Europe” -> “BMW” -> “BMW V30.02”-> “Auto identify (VIN)”
It will identify the VIN code and then confirm the correctness.

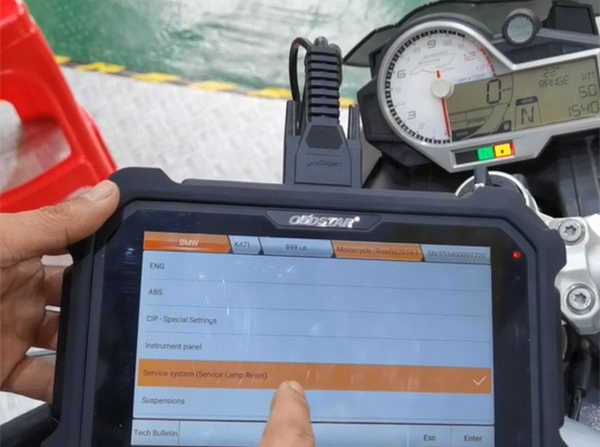

Step 3: It will enter all of the following systems one by one: ENG, ABS, TPMS, Alarm, Clip-Special Settings, Chassis management system, Instrument Panel, Service system, Suspension.

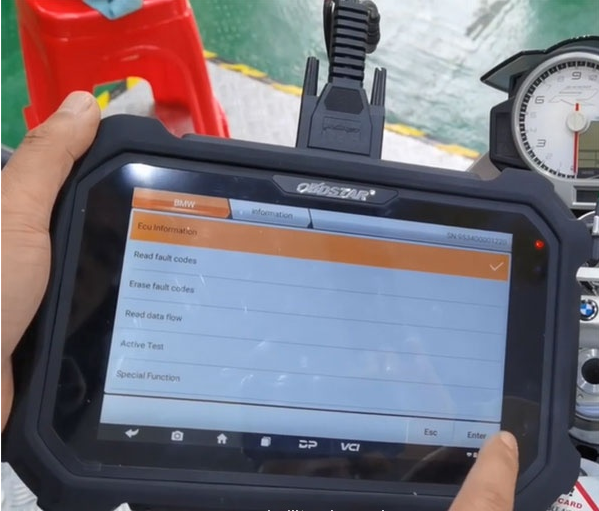

Step 4: What can OBDSTAR MS80 Motorcycle scanner do after entering the following systems incl. ECU information, read fault codes, erase fault codes, read data flow, active test, special function such as throttle valve adaptation values reset, gear position adaptation values reset, etc.
Note: The function supported by MS80 for each system is different, check the detailed info from the related video above.
FYI…
MS80 adds more car models for BMW diagnosis. Check the newest OBDSTAR MS80 BMW V30.04 Upgrade info as below.
| Model | Year | System |
| C400GT (K08) | 2018- | Instrument panel |
| C400 GT (K08)_Scooter | 2018- | Engine |
| C 400 X (K09)_Scooter | 2018- | Engine |
| C400 X (K09) | 2018- | Instrument panel |
| K 1200 R (K43)_Motorcycle (Road) | 2004-2008 | TPMS |
| K 1200 R Sport (K43/HV)_Motorcycle (Road) | 2005-2007 | TPMS |
| K 1300GT (K44/31)_Motorcycle (Road) | 2007-2010 | TPMS |
| K 1300 R (K43/11)_Motorcycle (Road) | 2007-2015 | TPMS |
| K 1300S (K40/11)_Motorcycle (Road) | 2007-2015 | TPMS |
| R 1200R (K27)_ Motorcycle (Road) | 2005-2014 | TPMS |
| R 1200RT (K26)_ Motorcycle (Road) | 2003-2014 | TPMS |
| R 1200 RT-P (K26)_ Motorcycle (Road) | 2006-2014 | TPMS |
| S 1000 XR (K49)_ Motorcycle (Road) | 2016- | Alarm |
| R 1200 R (K53)_Liquid Cooled)_ Motorcycle (Road) | 2015-2016 | Chassis management system |
| K 1600 Bagger (K61)_Motorcycle (Road) | 2017- | Instrument panel, Diagnosis of left side handlebar electric switch, CIP-Special settings, Radio, Alarm, Suspensions, Chassis management system, ABS, Infotainment interface, Engine, PMS, Headlight adjustment |
| K 1600GT (K48)_ Motorcycle (Road) | 2016- | Instrument panel, Diagnosis of left side handlebar electric switch, CIP-Special settings, Radio, Alarm, Suspensions, Chassis management system, ABS, Service system (Service Lamp Reset), Infotainment interface, Engine, TPMS, Headlight adjustment |
| K 1600GTL (K48)_ Motorcycle (Road) | 2016- | Instrument panel, Diagnosis of left side handlebar electric switch, CIP-Special settings, Radio, Alarm, Suspensions, Chassis management system, ABS, Infotainment interface, Engine, TPMS, Headlight adjustment |
| K 1600 Grand America (K61)_Motorcycle (Road) | 2017- | Instrument panel, Diagnosis of left side handlebar electric switch, CIP-Special settings, Radio, Alarm, Suspensions, Chassis management system, ABS, Infotainment interface, Engine, TPMS, Headlight adjustment |
| F900R (K83)_Motorcycle (Road) | 2018- | Service system (Service Lamp Reset), Suspensions, TPMS, Chassis management system, ABS, Engine, Instrument panel |
