Top 6 Reasons to Get for MDI for GM:
1.Multi-Languages available:English, French, German,Italian.etc. Total 30 languages to choose.
2.Can do cars from 1990-2016 Year
3.Operating system:Windows XP,you can connect the computer through the USB or the ethernet cable.
4.Support with WIFI
5.Support 2010-2012 year Australia Holden cars.
6.Software Version:
For GM MDI Software version: 2016.03
GDS2 packet
For SAAB:V2011.10.0
For OPEL/VAUXHALL:V2011.10.0
For GM PREPROUTION:2011.11.3
For GDS2 software version:V9.1.01001

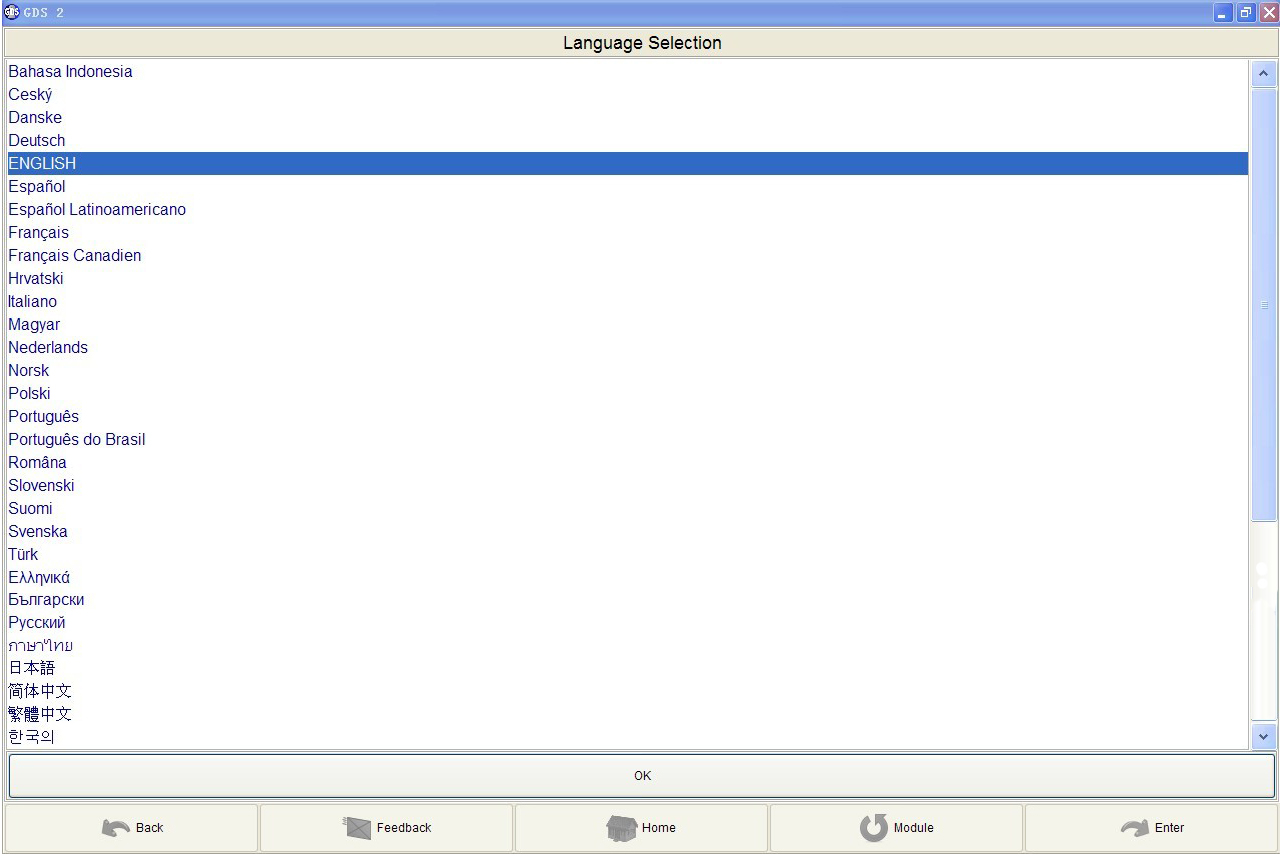

Display For MDI for GM Language:
Newest features for MDI for GM :
1. With opel Global tis global diagnostic system
2. Support offline lease function
3. Support Opel offline programming function
4. With GDS2 diagnostic system
5. Tech2win diagnostic software support adding latest software
6. support programming online
7. support cable communication
8. support wireless communication
9. support original factory latest software
10. With European Chevetl Global tis, Supports European Chevetl offline programming
11. All Chip are new and original
General Motors Global Electrical Architecture (Global A) and Global Diagnostic Hardware &Software
Global Diagnostic System DGS& Mutiple diagnostic Interface MDI
How will The MDI for GM Be Used?
The new GM MDI can be used only in the Pass-Thru method. This means you can use it as your programming tool, while your Tech 2/CANDY remains available for diagnostics and other duties.
The GM MDI is initially being introduced with Pass-Thru programming capabilities only. It can be used to perform Pass-Thru programming on all vehicles built since 1996 and will support all vehicles into the future.
The GM MDI will be required to perform diagnostics on selected NAO vehicles for model year 2009. Diagnostic software is scheduled to be released for the GM MDI during the fourth quarter of 2008. Regulations require programming procedures to be compliant with SAE Recommended Practice J2534.
The GM SPS is compliant with SAE Recommended Practice J2534, and the GM MDI is compliant with the portions of SAE J2534 that are applicable for GM vehicles.
What Protocols Does The MDI for GM Support?
For immediate use — At present, vehicles have two buses on the 16 pin connector (high speed and low speed GMLAN). The GM MDI communicates using all of the existing GM protocols, the same as the Tech 2:
– UART
– Class 2
– KWP2000
– GMLAN (CAN)
Beginning with the 2008 model year vehicles, Pass-Thru will be the only programming method available. (Remote will continue to be available for previous vehicles)
