Land Rover 2014 Program Tire Pressure Sensor with Launch X431

After replacing new tire pressure sensors for cars, it requires to perform programming TPMS. So here i will show you guide on how to use Launch X431 to program tire pressure sensors for Land Rover 2014. More about Land Rover projects, please contact us.

What You Need?

Launch X431 Device
Land Rover TPMS

Procedures:

1. Please remember new ID:0F001100 that we get, then start to replace. Use auto search function, make sure all information is right choose “Yes”

2. Choose “System selection”

3. Choose “Body control module”

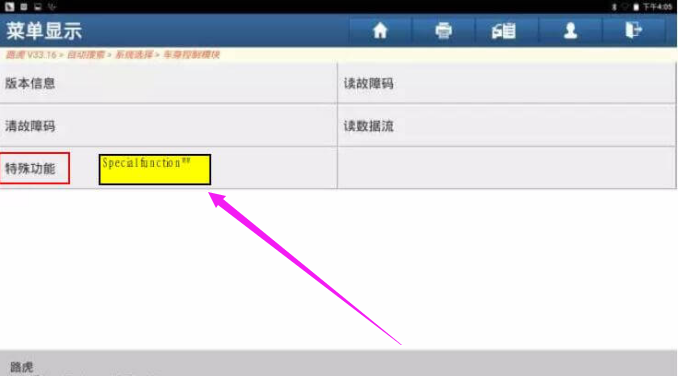

4. Choose “Special function”

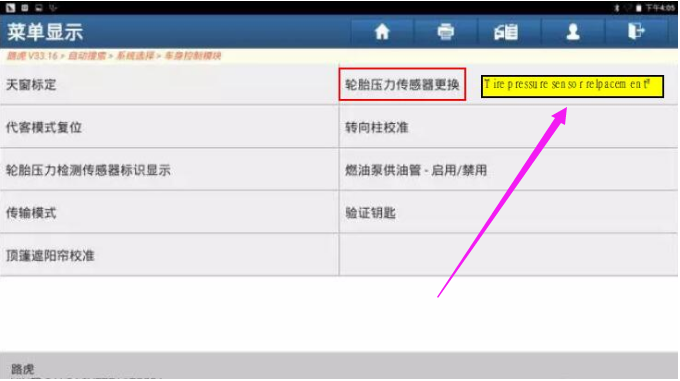

5. Choose ”Tire pressure sensor replacement”

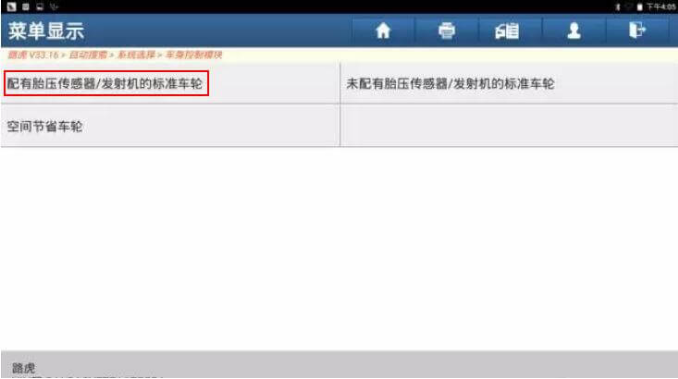

6. Choose “Standard wheel with tire pressure sensor / transmitter”

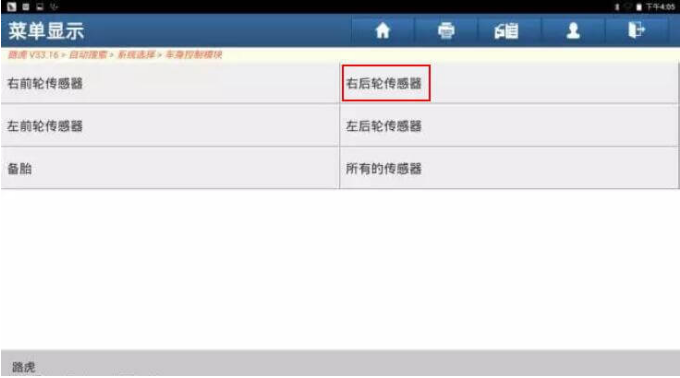

7. Choose “Right rear tire sensor”

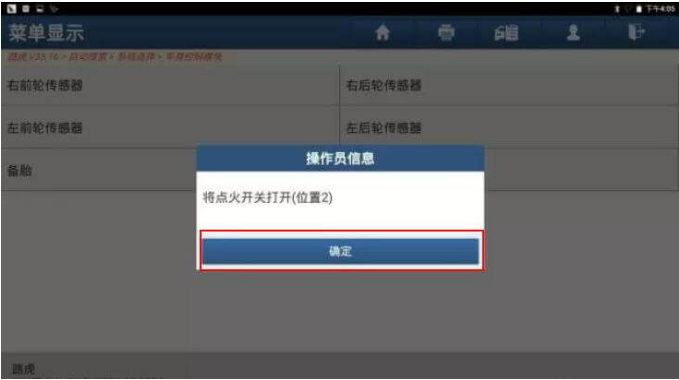

8. Switch on ignition press “Yes”

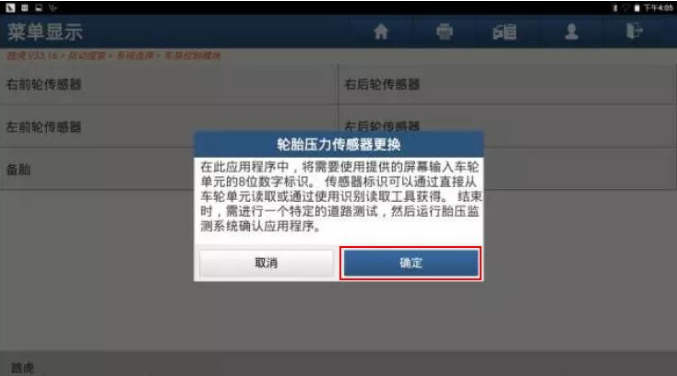

9. Press “Yes” to continue

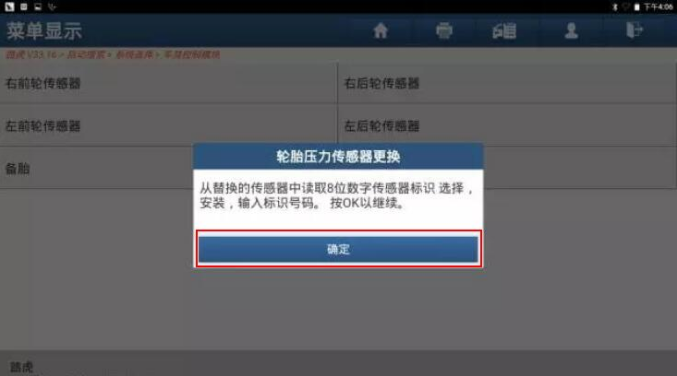

10. Press “Yes”

11. Input new sensor ID:0F001100

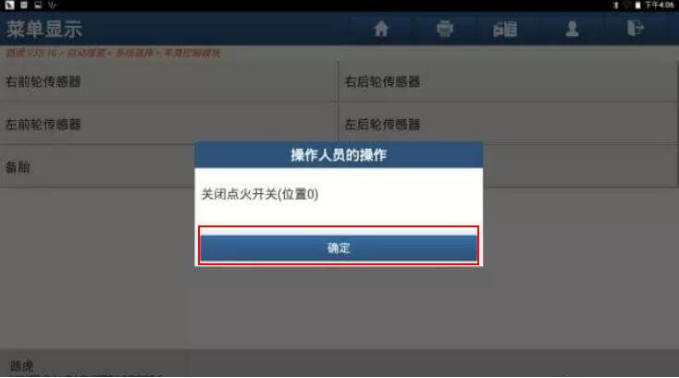

12. Turn off the ignition press “Yes”

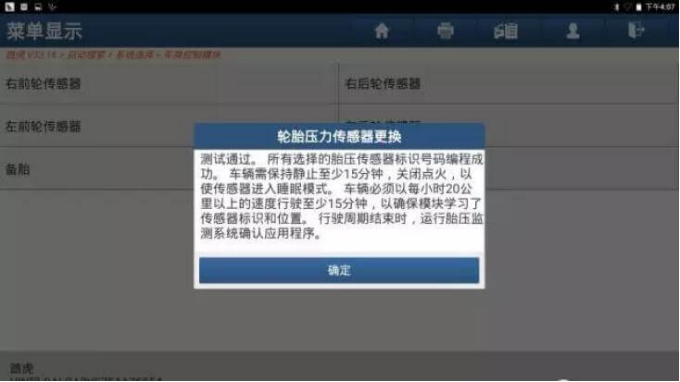

13. After turn off ignition 15 minutes, drive the car above 20KM/H for 15 minutes least to test

14. The fault light goes out.
