Autel MaxiIM IM608 is the most advanced and the unique all in one key programming and diagnostic tool that combines advanced key programming, all systems diagnostics, and advanced services in one Android based 10.1-inch touchscreen tablet. It is equipped with XP400 key programmer and MaxiFlash ECU programmer to provide complete coverage of IMMO and programming functions. Together with the ability to quickly diagnose all modules of the majority of the makes and models on the market, IM608 provides you with all special functions. It is the unprecedented key programming and diagnostic tool that you ever wanted
- Extraordinarily powerful Cortex A7+A15 six-core processor
- 10.1-inch LED capacitive touch screen with 1920×1200 resolution
- Internal reliable 64GB On-board Memory for better performance
- Built-in 8-megapixel rear camera with autofocus and flashlight
- 802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources
- Open source Android Operating System for fast boot-up and multitasking
- Powerful combination of advanced key programming/all systems diagnostics/advanced maintenance services
- Professional key programming equipped with XP400 key programmer and MaxiFlash ECU programmer for complete Immo coverage
- Smart mode for guided and automated key learning
- Expert mode for advanced key learning
- Read PIN/CS (all key lost), generate key, key learning, remote learning
- IMMO ECU reset/adaptation, refresh/coding
- Read/write transponder data, ECU/MCU/EEPROM data (eg. 9S12 encryption chip), IC card, detect remote frequency
- Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
- Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.
- All special functions, EPB, DPF, SAS, Oil reset, BMS, TPMS sensor ID relearn, etc.
How to Connect with the Autel IM608 remotely
To remotely connect to the Autel tablet device, here we use Autel IM608 as a demo to show the procedure.
Step 1: Open the teamview program(make sure that your tablet is connected to the network before doing the teamview.

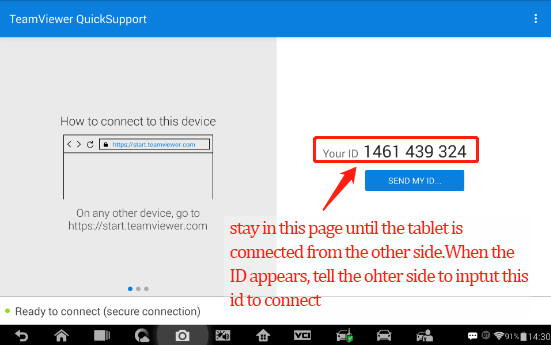

After entering the software, stay in the below page until the end. (Stay in this page until the tablet is connected from the other side. When the ID appears,tell the other side to input this id to connect)

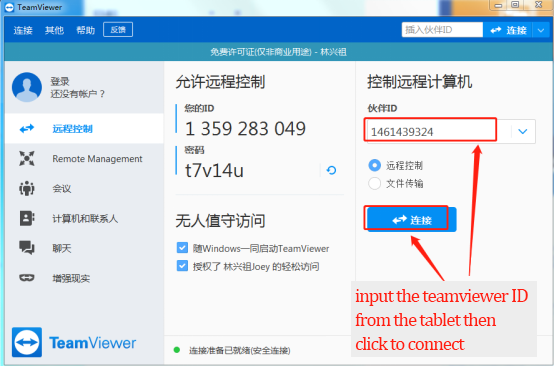

Page from the other side (PC end)to connect your tablet shown as below.(Input the teamviewer ID from the tablet then click connect)

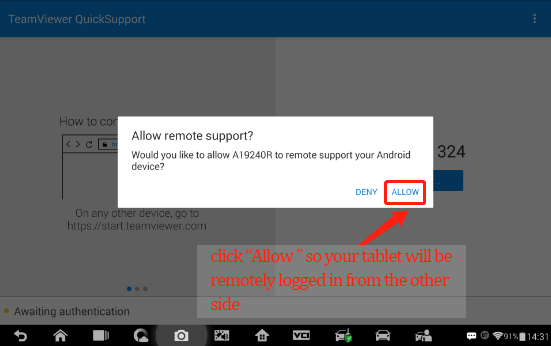

Click “Allow” so your tablet will be reomotely logged in from the other side.

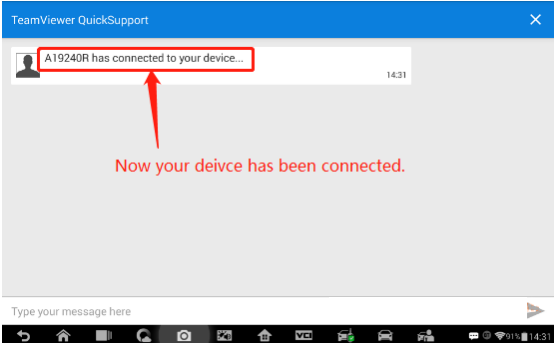

Now your device has been connected.
