OBDSTAR PD plus / ODOmaster is a decent Peugeot Citroen mileage programmer via OBD. Its operation is friendly because it comes with a help file, images, and tips. This article is available with the using guide and vehicle coverage.
Part 1. obdstar X300 dp plus Peugeot Citroen mileage programming coverage

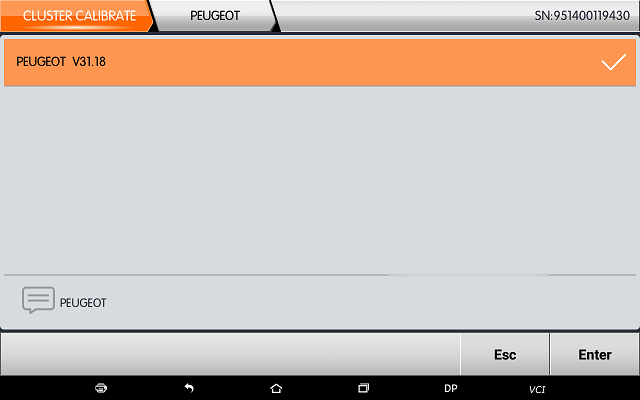

Peugeot coverage (both OBDSTAR key master plus and ODO Master are the same)

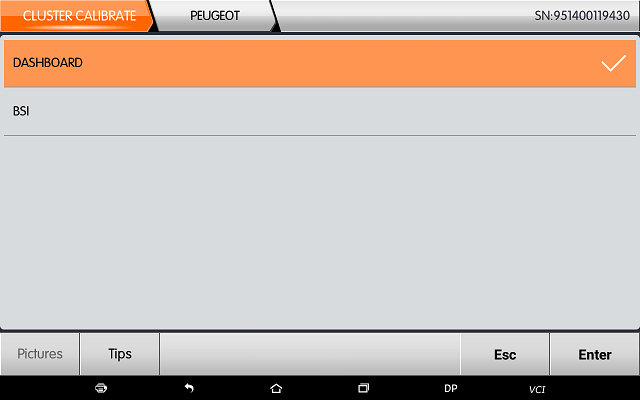

Dashboard or BSI.

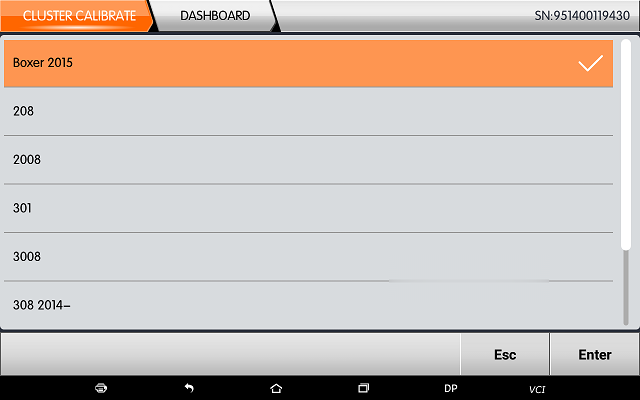

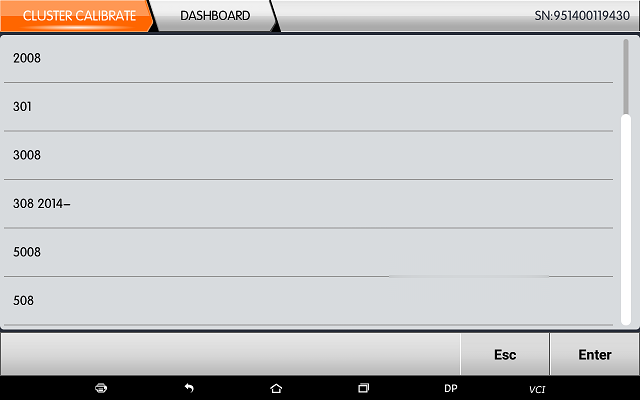

Peugeot Dashboard coverage:
Boxer 2015
208
2008
C-ElySee
3008
308 2014-
2008
301
5008
508
Peugeot BSI coverage
BSI
Auto Select
Manual Select
Continental SC67050 + 95256 CAN (BSI-Q0X-00)
JC easyCAN4F1M-32 + 95128 CAN (BSI04EV-K0X)
JC easyCAN4 + 29LV400BB + 95128 CAN
JC SPC560B60 + 95128 CAN (BSI04EV2-KEX)
SIEMENS 1L00M + 95128/95256 CAN (BSI-S0X)
SIEMENS D76F0018 + 95160 KLINE (BSI-E0X/BSI-F0X)
VALEO SC667152 + 95256 CAN (BSI-N0X)
VALEO 2M48H +24c128 CAN (BSIEV-X0X-00)
VALEO 4L00M + 95128/25128 CAN (BSI2004-P0X-00)
Citroen coverage (both OBDSTAR X300 DP plus and Odomaster are the same)
Citroen: dashboard and BSI.

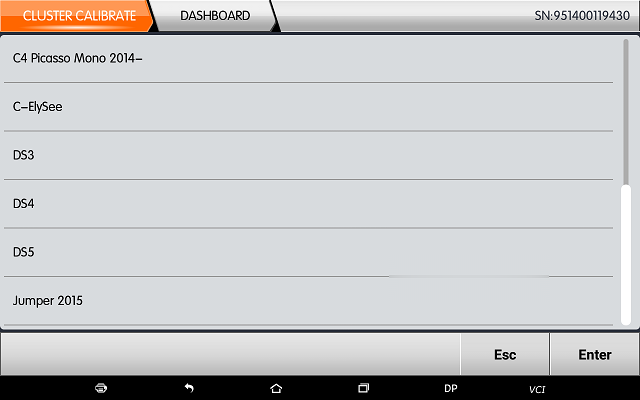

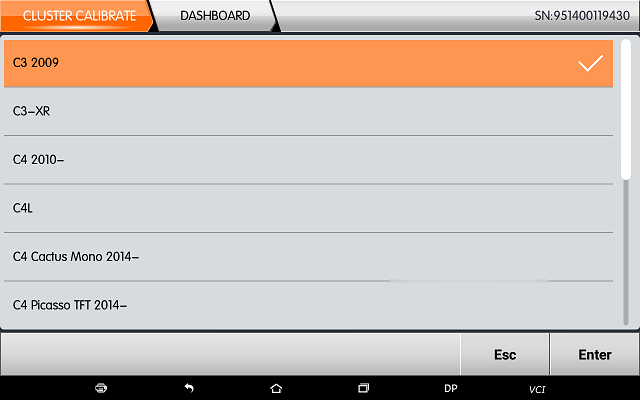

DASHBOARD:
C3 2009

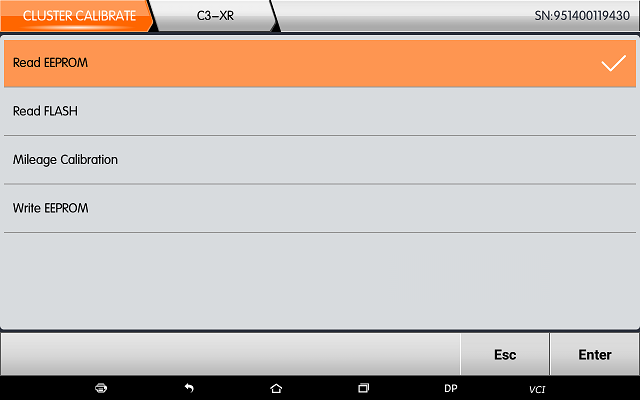

C3-XR
C4 2010-
C4L

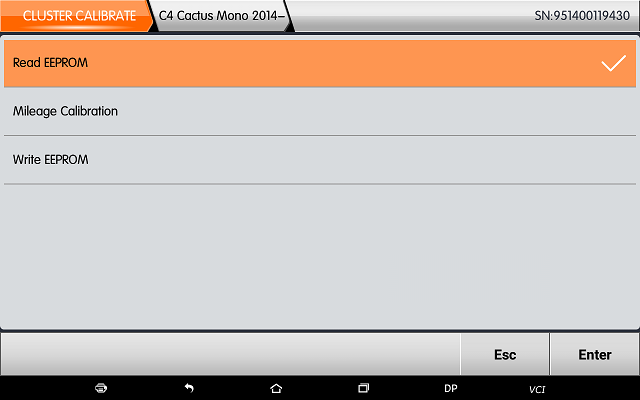

C4 Cactus Mono 2014-
C4 Picasso TFT 2014-
C4 Picasso Mono 2014-
C-Elysee
DS3
DS4
DS5
Jumper 2015

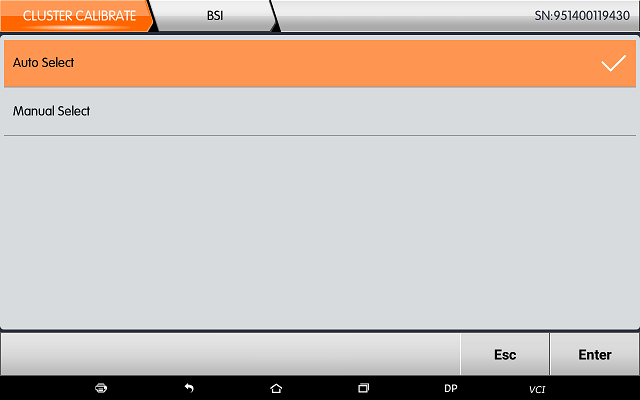

After selecting “BSI” and have options “Auto select” and “Manual select”.
BSI
Auto Select
Manual Select

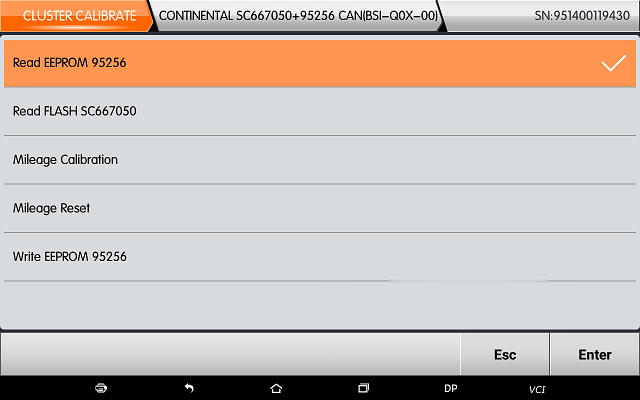

Continental SC67050 + 95256 CAN (BSI-Q0X-00)

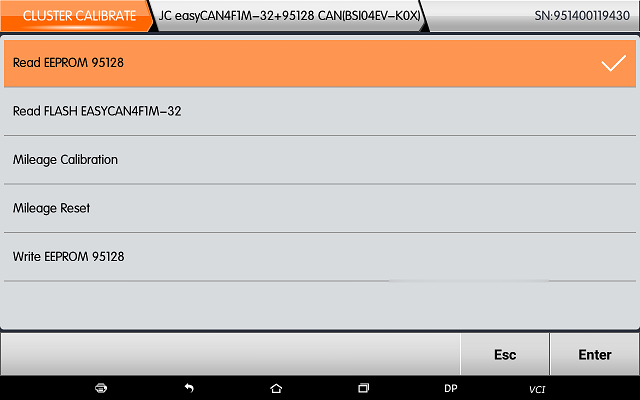

JC easyCAN4F1M-32 + 95128 CAN (BSI04EV-K0X)
JC easyCAN4 + 29LV400BB + 95128 CAN
JC SPC560B60 + 95128 CAN (BSI04EV2-KEX)

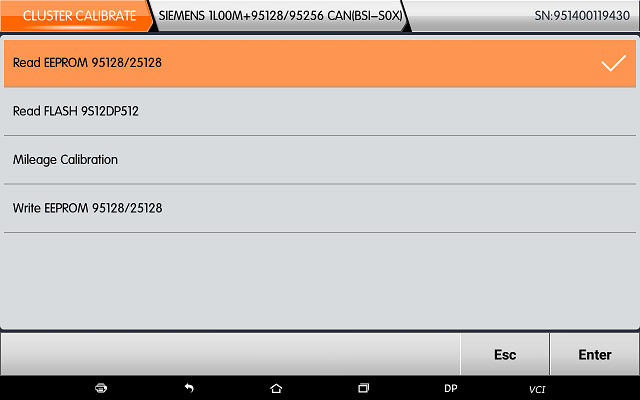

SIEMENS 1L00M + 95128/95256 CAN (BSI-S0X)

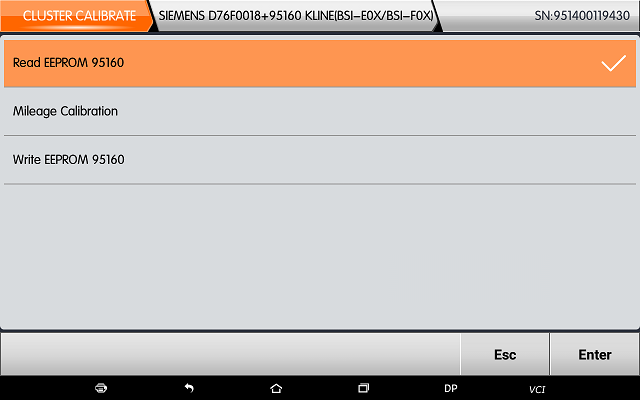

SIEMENS D76F0018 + 95160 KLINE (BSI-E0X/BSI-F0X)
VALEO SC667152 + 95256 CAN (BSI-N0X)

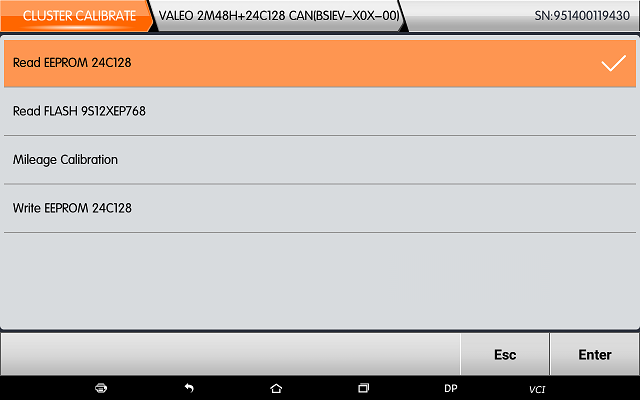

VALEO 2M48H +24c128 CAN (BSIEV-X0X-00)

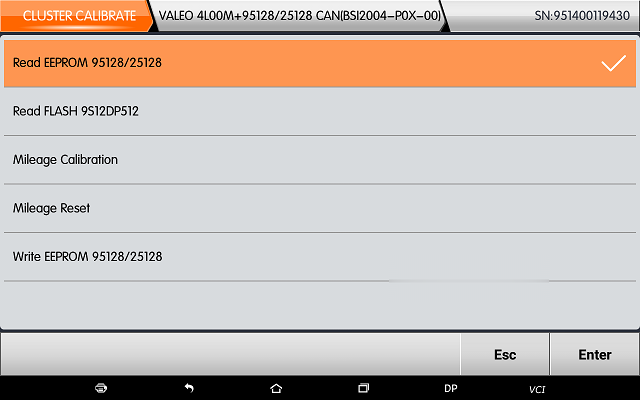

VALEO 4L00M + 95128/25128 CAN (BSI2004-P0X-00)

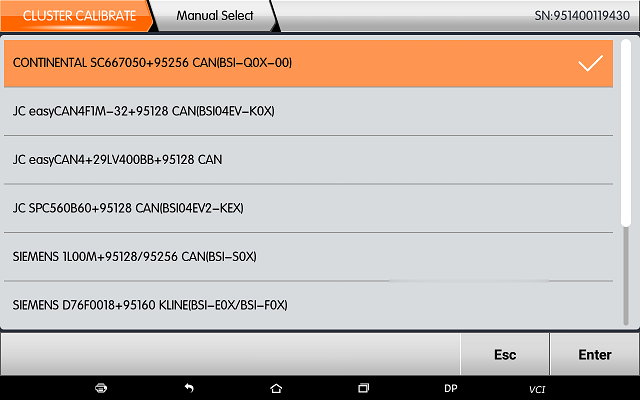

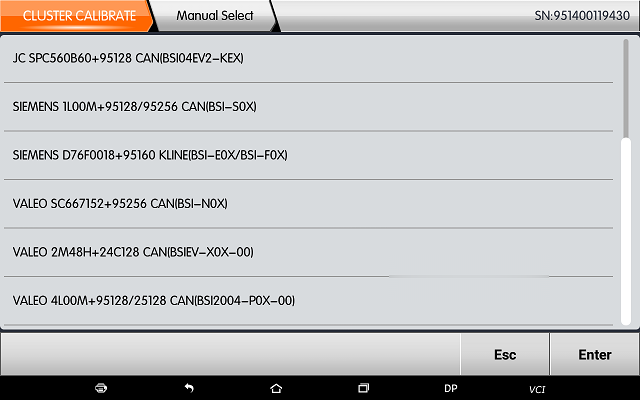

Enter “Manual select”.
Part 2: OBDSTAR PSA Dashboard and BSI mileage correction using guide
Follow the OBD calibration steps.

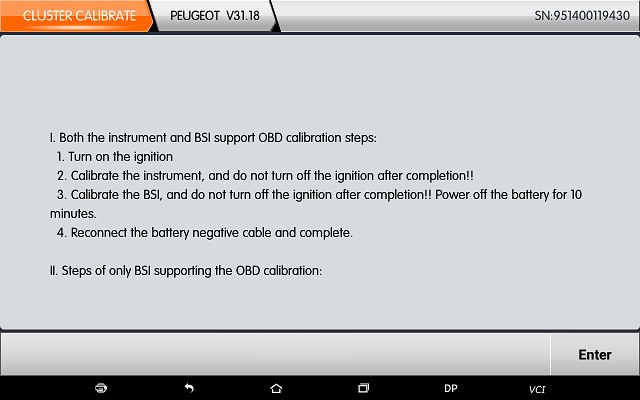

Both the instrument and BSI support OBD calibration steps:
1.Turn on the ignition
Calibrate the instrument, and do not turn off the ignition after completion
Calibrate the BSI, and do not turn off the ignition after completion!! Power off the battery for 10 minutes
Reconnect the battery negative cable and complete

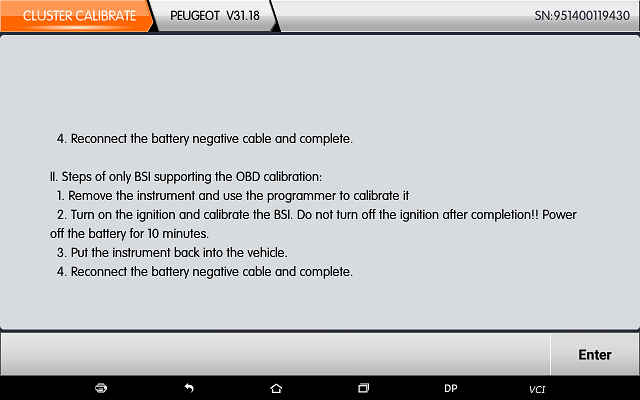

Steps of only BSI supporting the OBD calibration:
Remove the instrument and use the programmer to calibrate it
Turn on the ignition and calibrate the BSI. Do not turn off the ignition after completion!! Power
off the battery for 10 minutes.
Put the instrument back into the vehicle
Reconnect the battery negative cable and complete

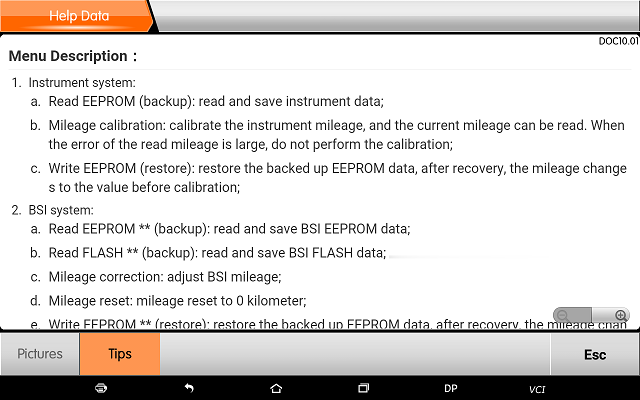

Tips:
