How to Solve Yanhua Mini ACDP with Module 9 Cannot Program 2011 Range Sport

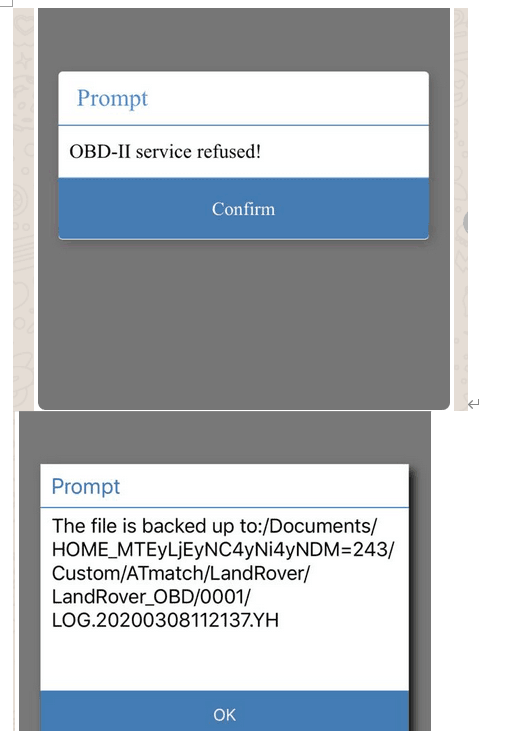

Customer Problem: I used Yanhua Mini ACDP with module 9 to add new keys to 2011 Range Sport, but it failed. The message prompted “OBD-II service refused!” as the picture shown.

Autonumen.com engineer replied:

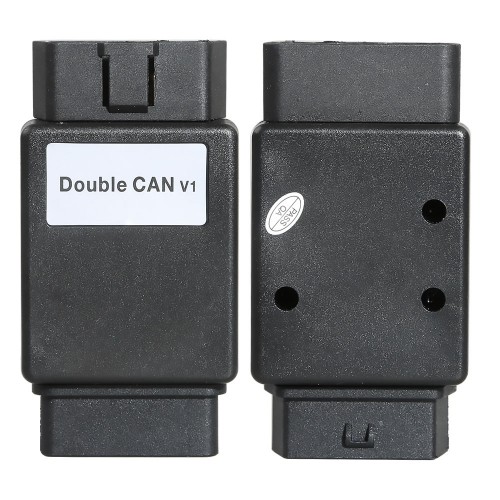

Only the KVM module from 2015 to 2018 can add new keys and do all keys lost by Mini ACDP master with module 9 with interface board. For the old Land Rover, you need to add double CAN adapter.

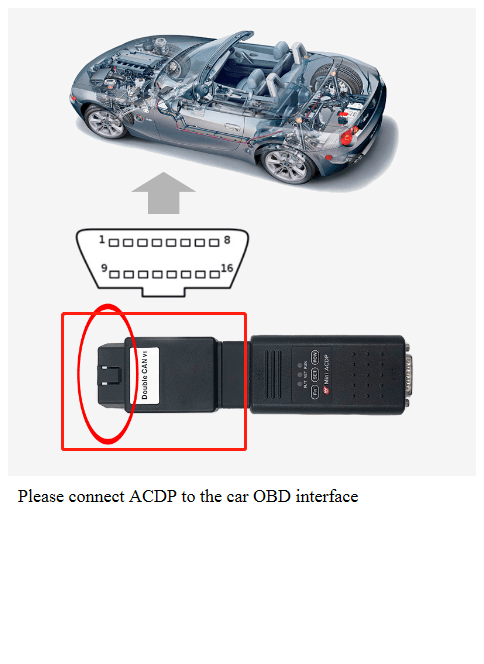

This is the connection diagram:

Hope it helps you! Good luck!
