How to Reset Component Protection Instrument Cluster via ABRITES on Audi A4 2010

This instruction will show you how to do instrument cluster adaptation via ABRITES on 2010 Audi A4.For more AVDI cases, check here: AVDI Programmer Test Projects.

Steps:

Start by running your ABRITIES software, click Component protection

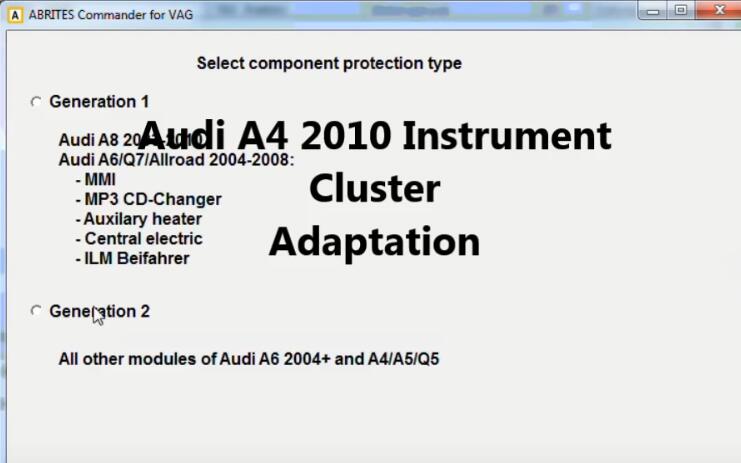

Select component protection type, then click “Next”

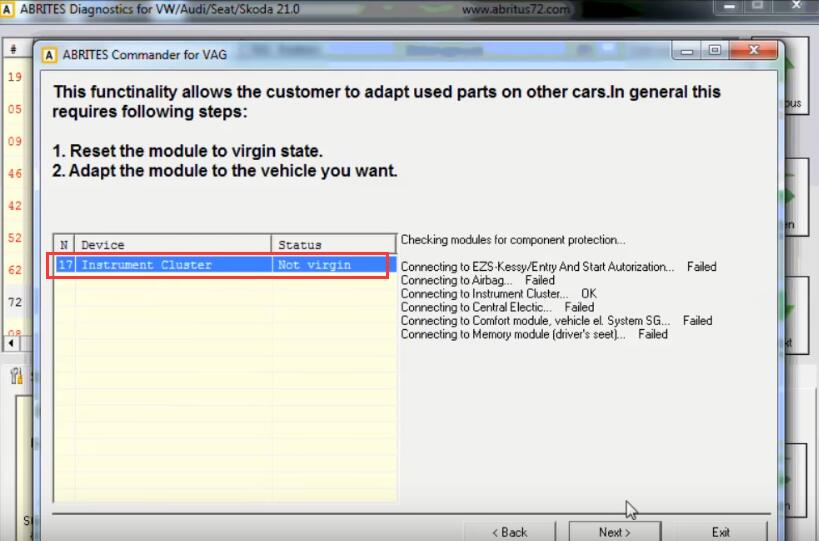

Click “Instrument Cluster”–>”Next”

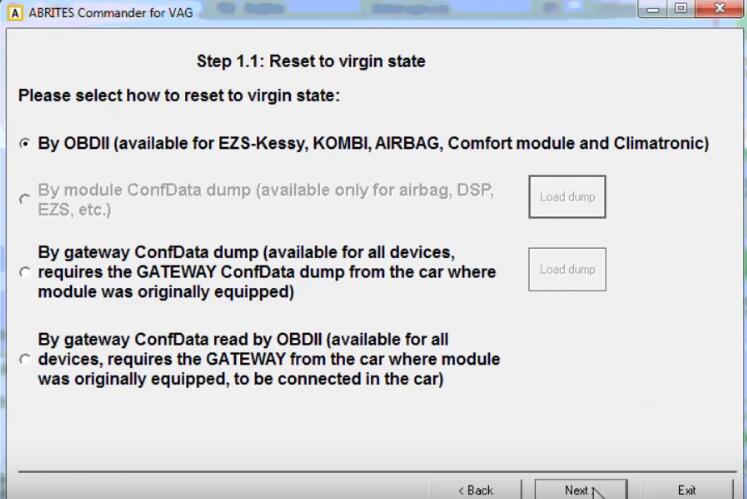

Select the method how to reset to virgin state

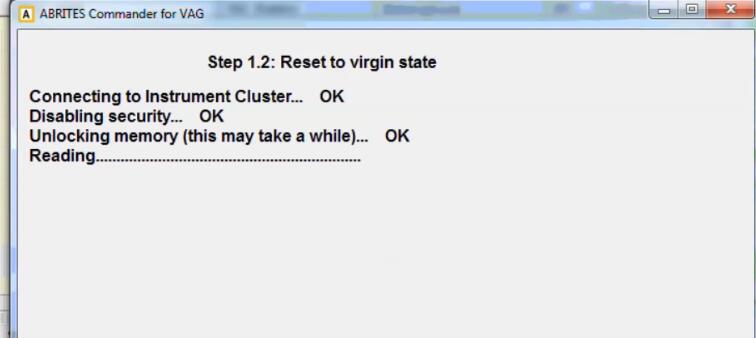

AVDI Unlock&Read instrument Cluster

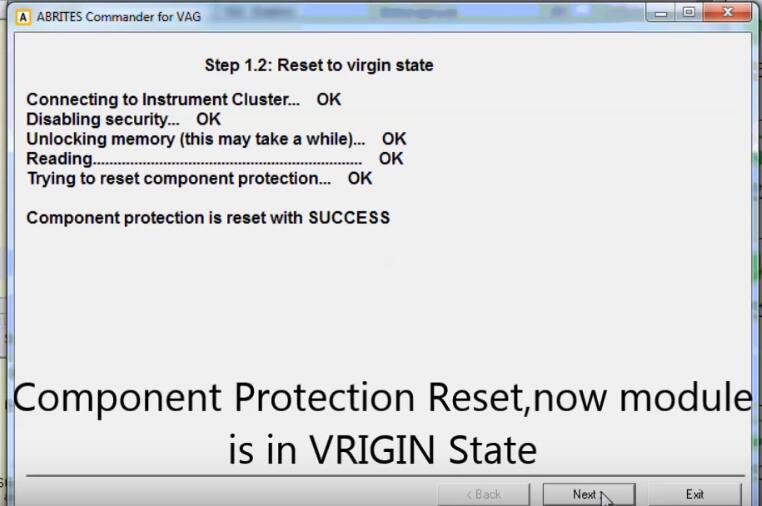

Component Protection Reset, now module is in VRIGIN State

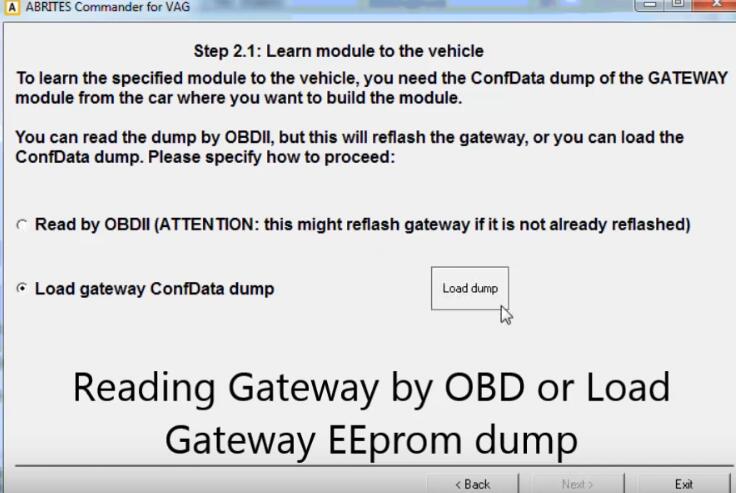

Reading Gateway by OBD or Load gateway EEprom dummp

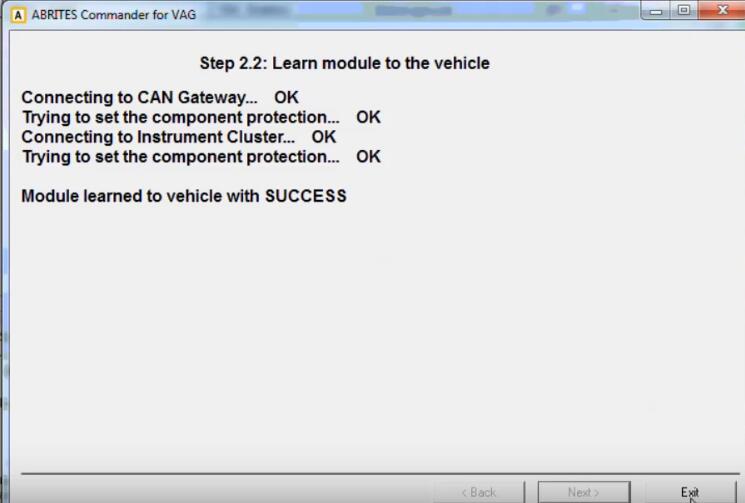

Learn with success,module become active now

More AUDI A4 repair cases, refer here AUDI A4 REPAIR.
