How to Read and set the SERVICE data by OBDSTAR MS80

MS80 has professional-level intelligent diagnosis, providing an unprecedented intelligent diagnosis and maintenance experience-the first fault guidance, technical bulletin, data flow assistance, diag socket, and other functions to help you diagnose accurately and efficiently; exclusive interactive circuit diagram and electrical query system, easy troubleshooting Failure, so you have no worries about the car diagnosis!

Functions:
1. New Android 5.1.1 operation system
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc.;
4. Menu Arbitrary selection is more convenient and quick;
5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the Internet, one-click software upgrade;
7. One-Click remote function, OBDSTAR technical staff remote assistance;
8. Support the fault diagnosis of most of the world’s luxury locomotives and tens of thousands of models.

How to Read and set the SERVICE data by OBDSTAR MS80:

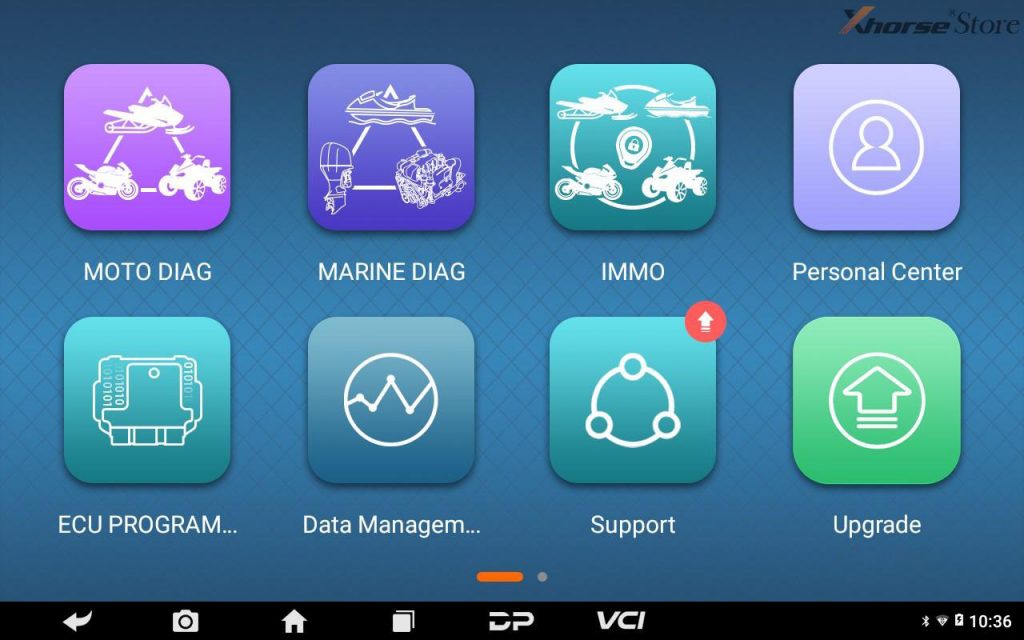

1. Connect MS80 to Motorcycle, enter into[MOTO DIAG];

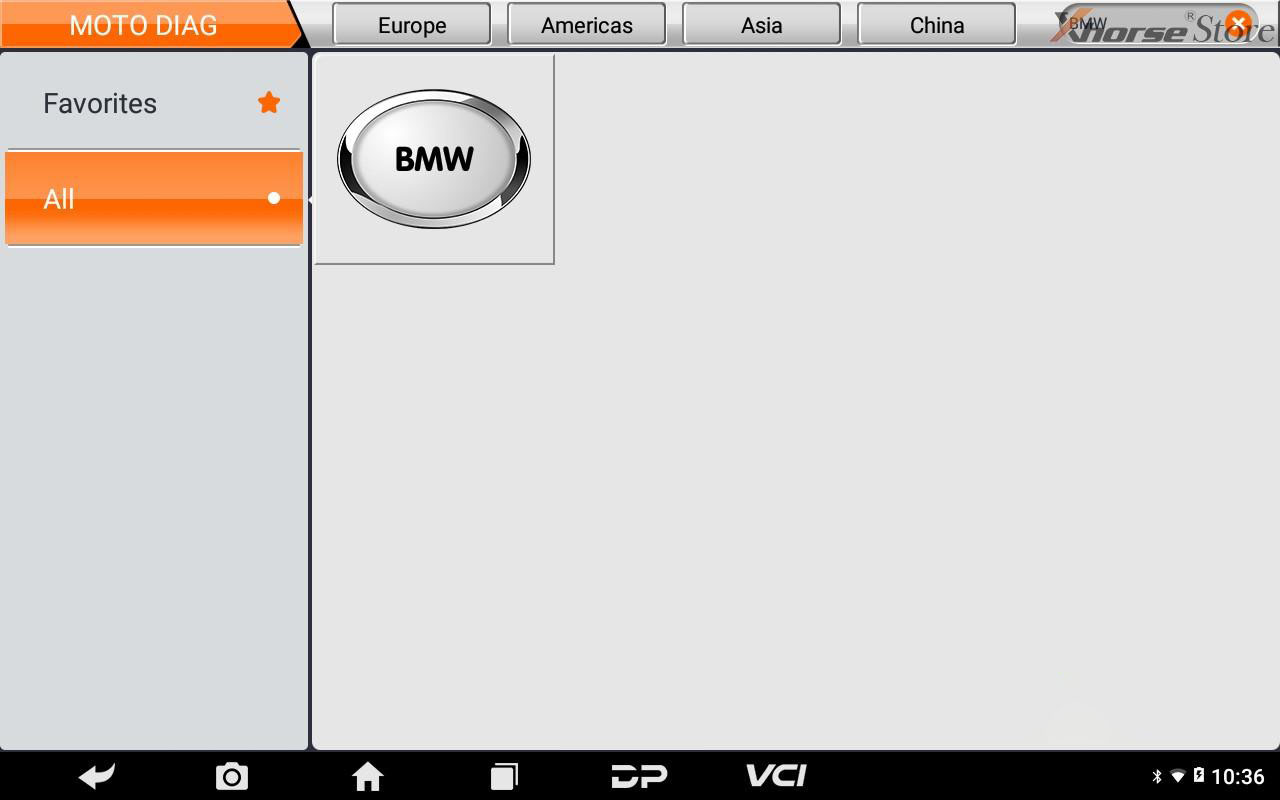

2. Click[All], input letters such”BMW” in search bar, click[BMW];

Tips: by searching keywords, find out related models quickly.

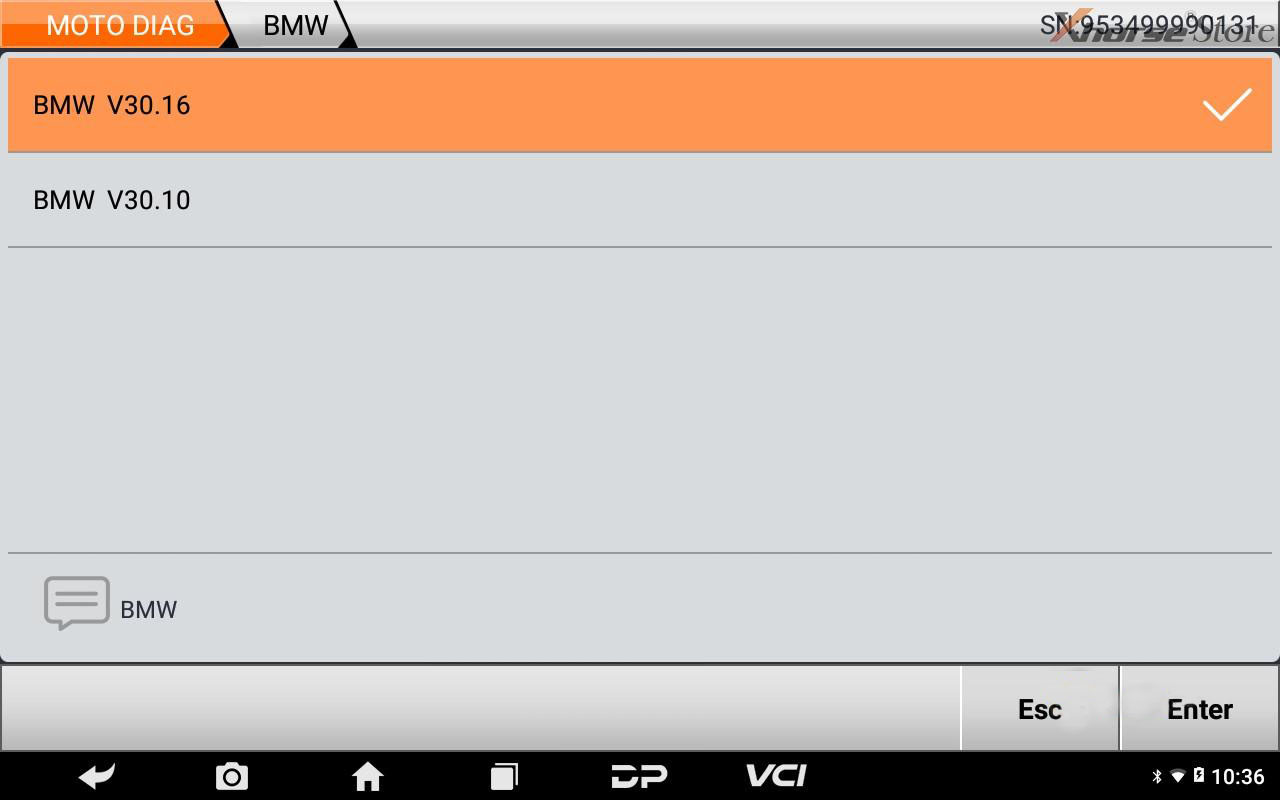

3. Click the newest BMW edition;

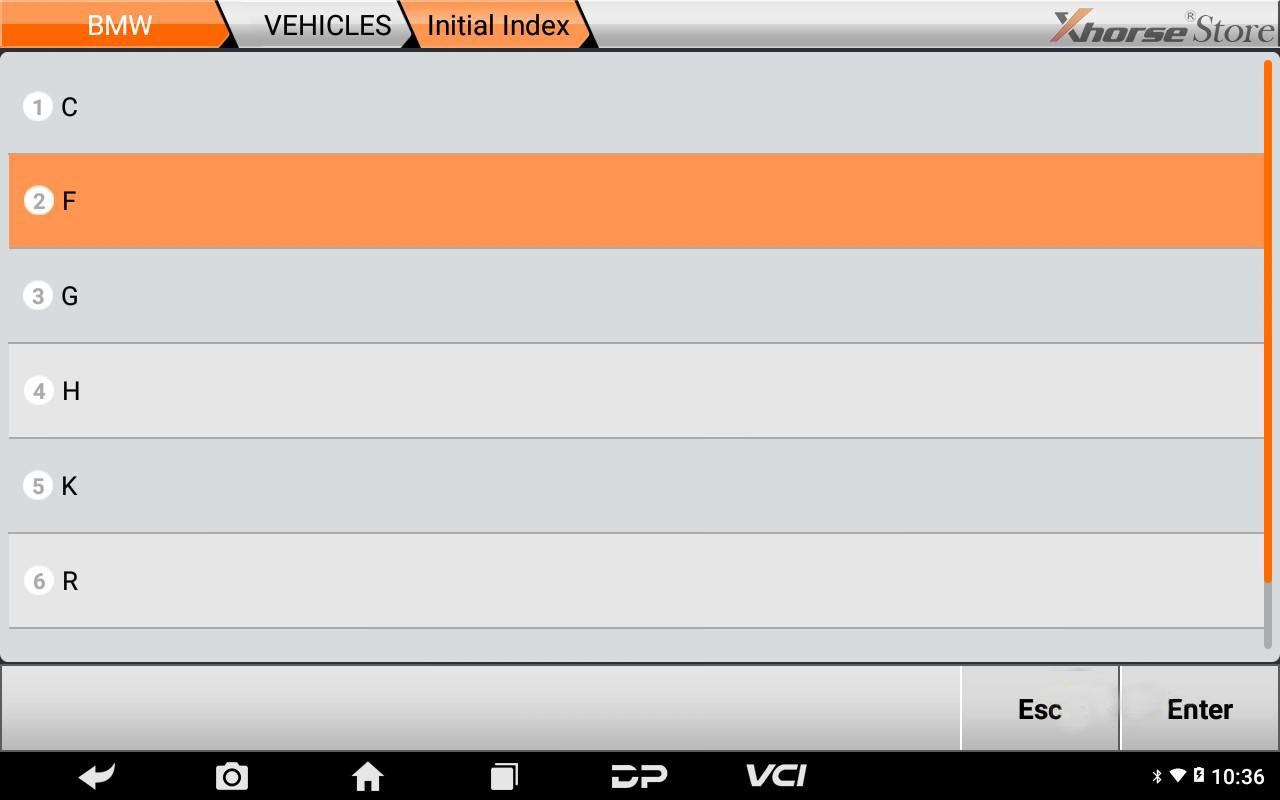

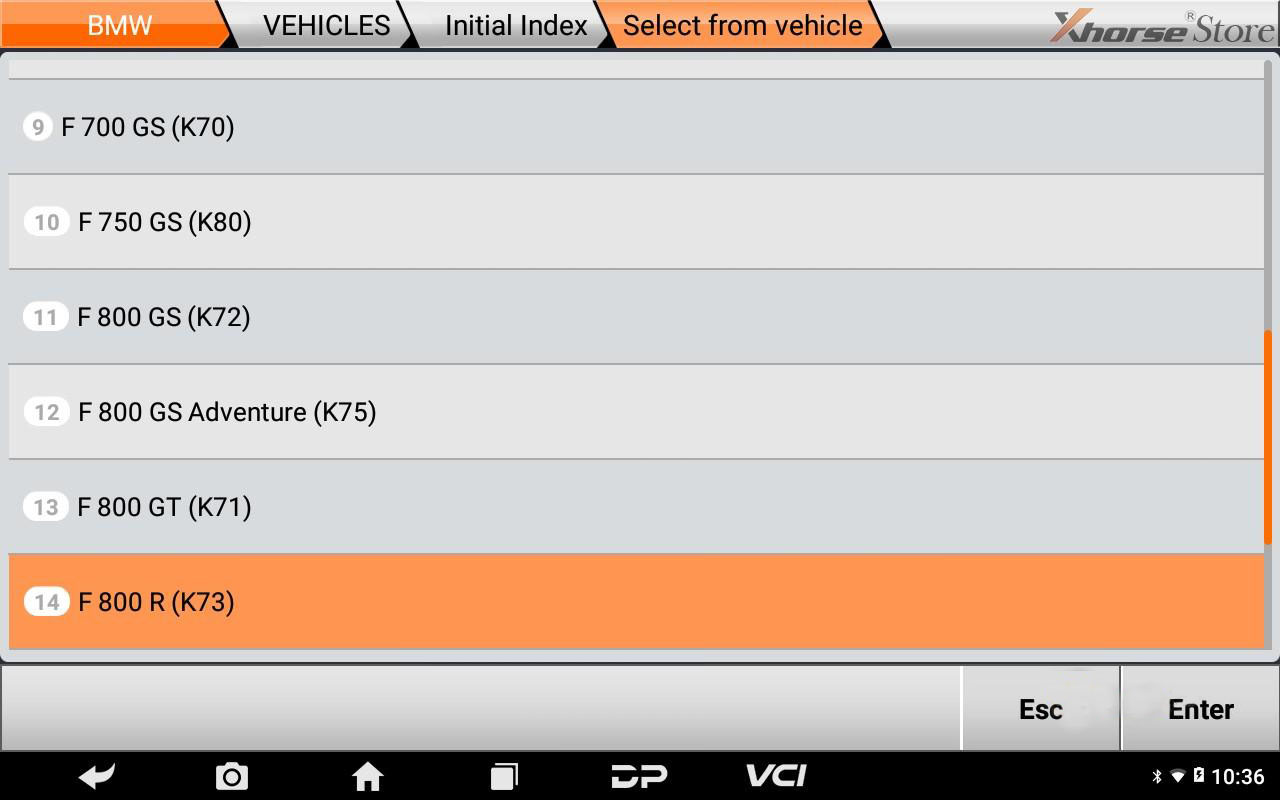

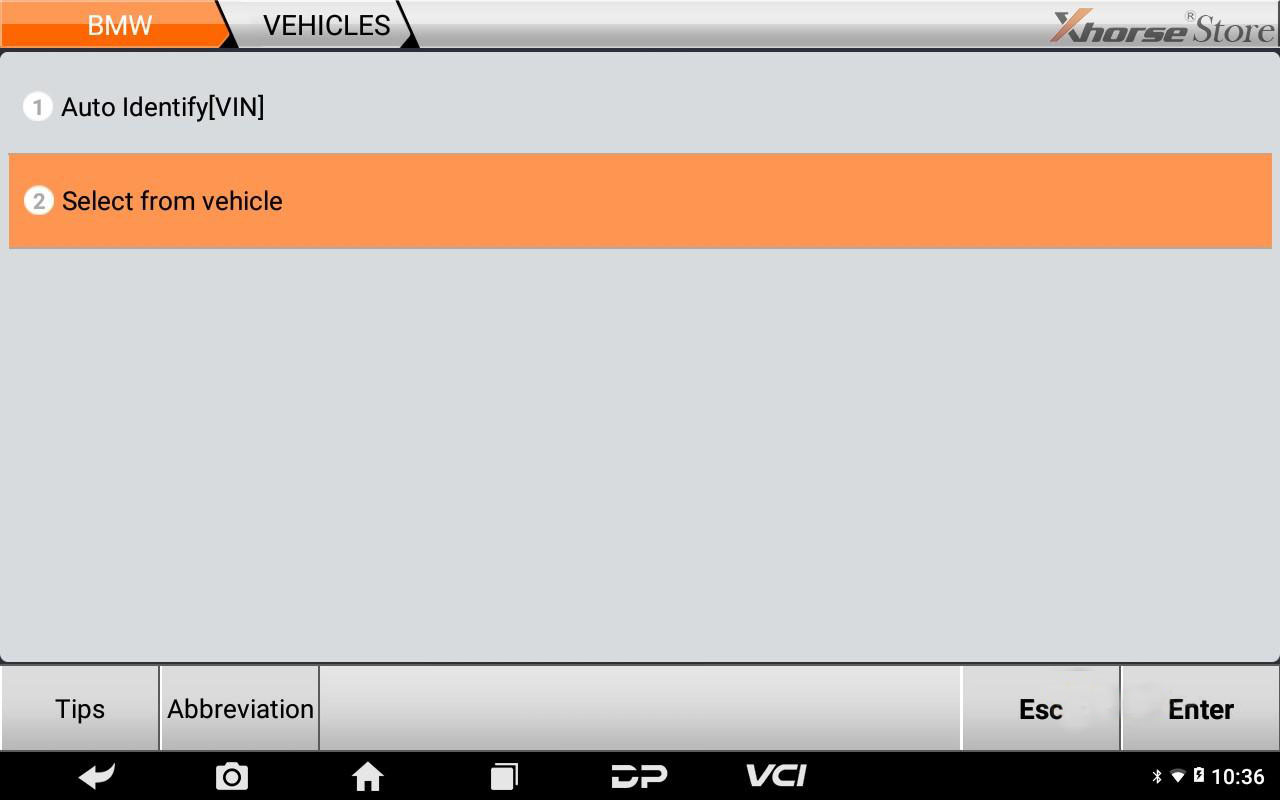

4. Click[Select from vehicle],[F],[F 800 R(K73)];

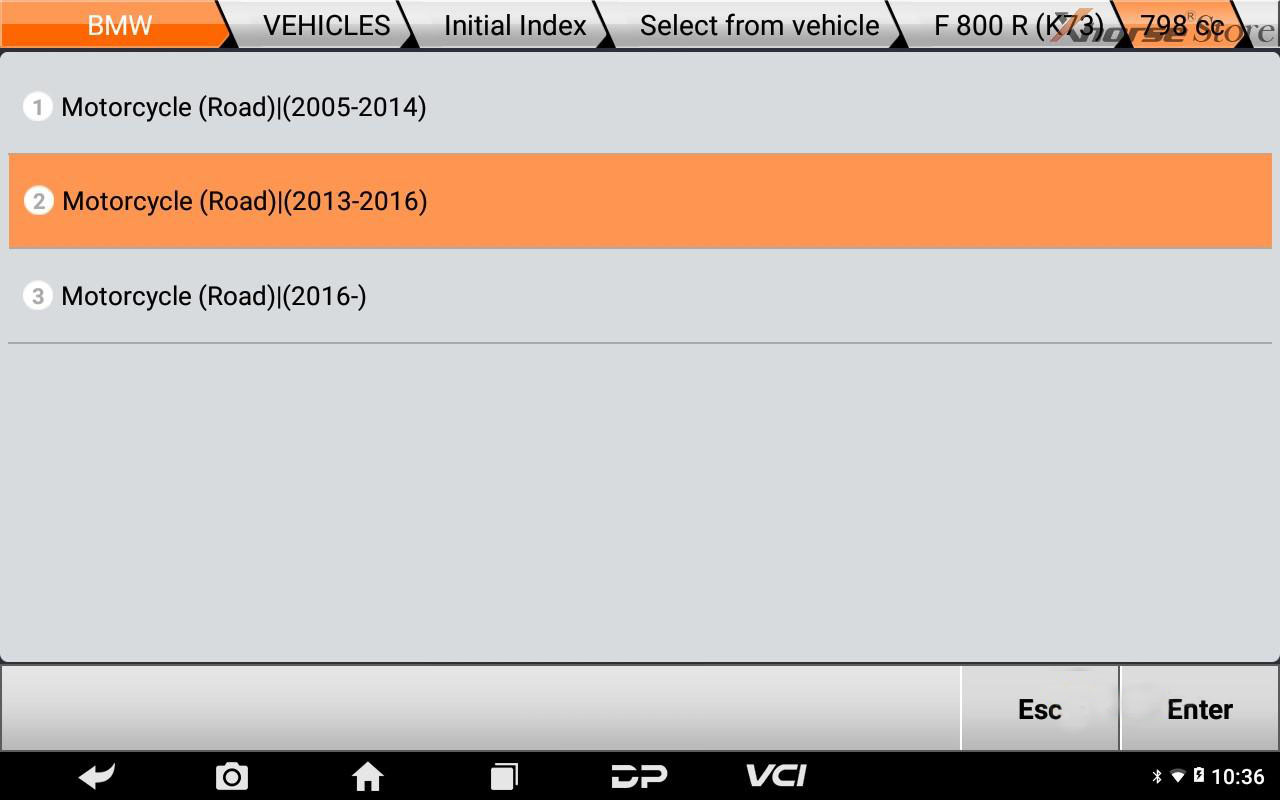

5. Click[Motorcycle(Road)|(2013-2016)];

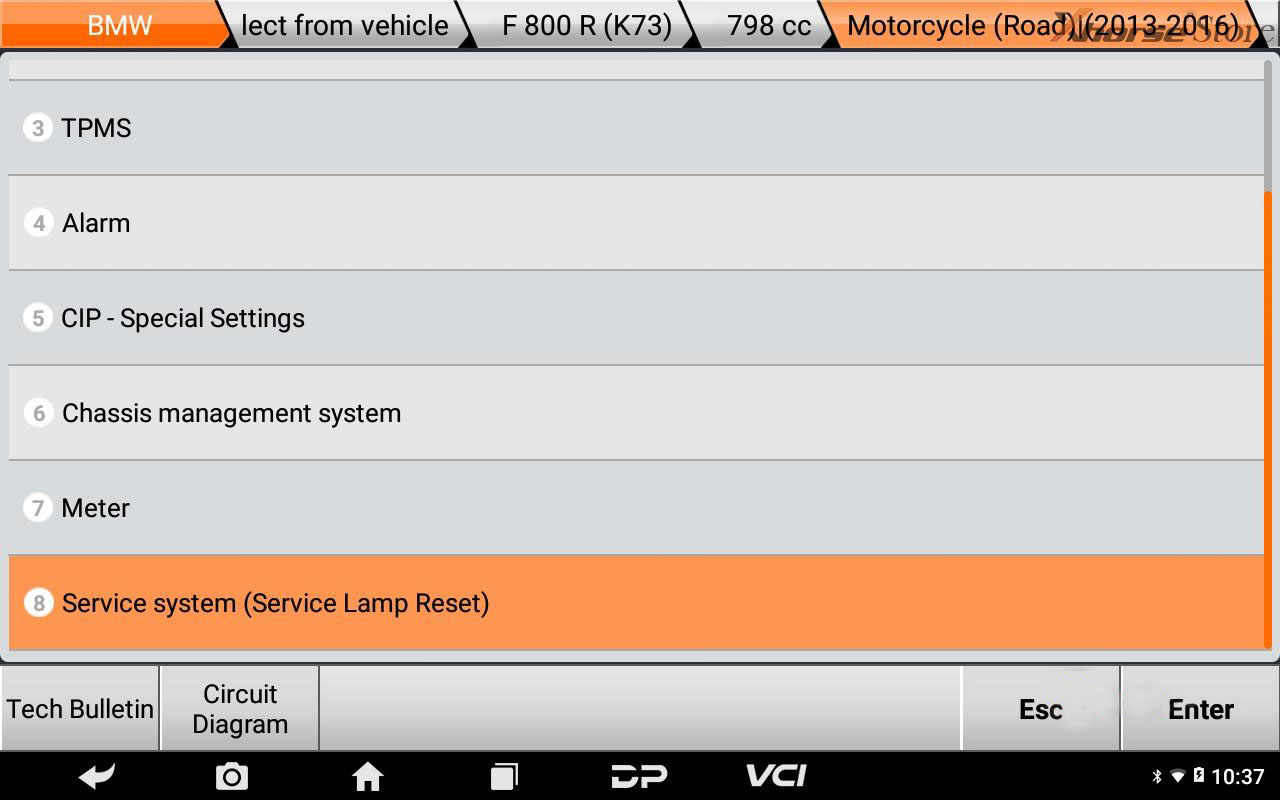

6. Click[Service system(Service Lamp Reset)];

Tips: can click[Diag Socket]or[Diag Connector]check diag socket or cable information.

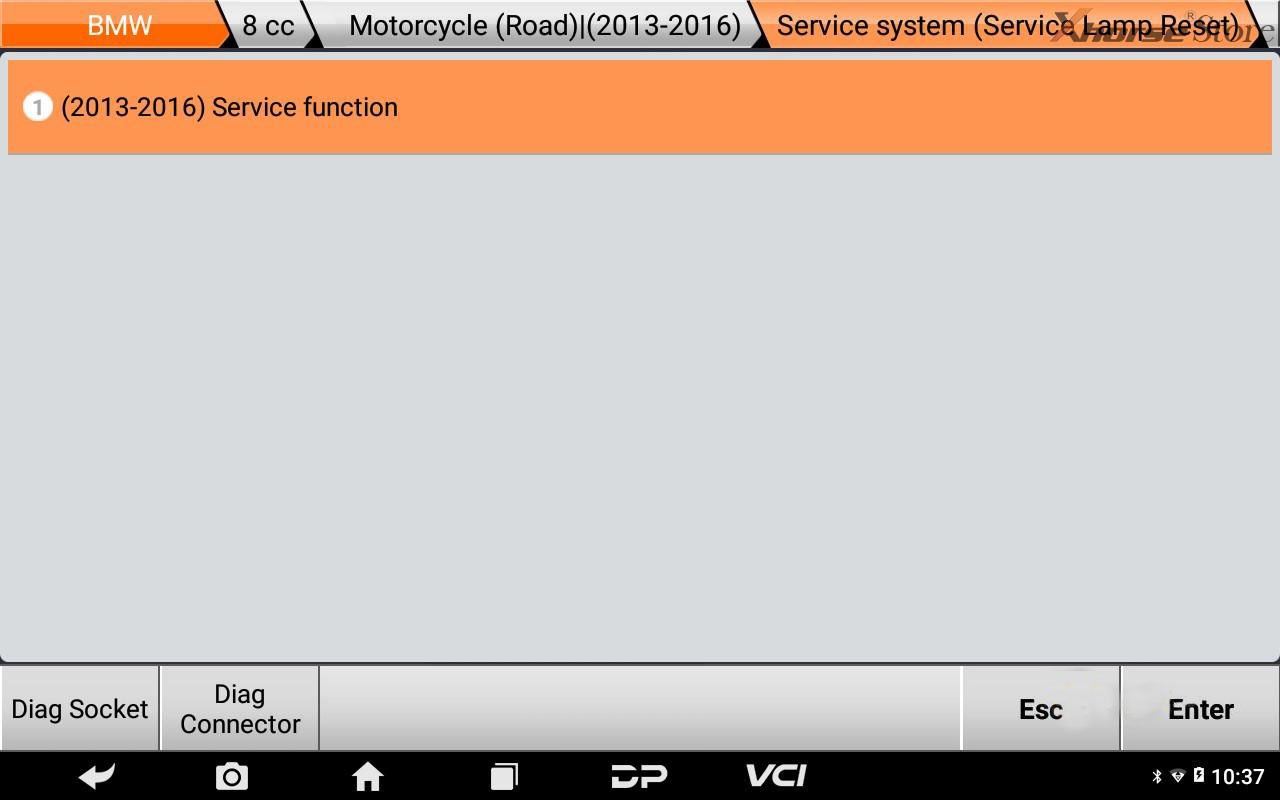

7. Click[(2013-2016)Service function];

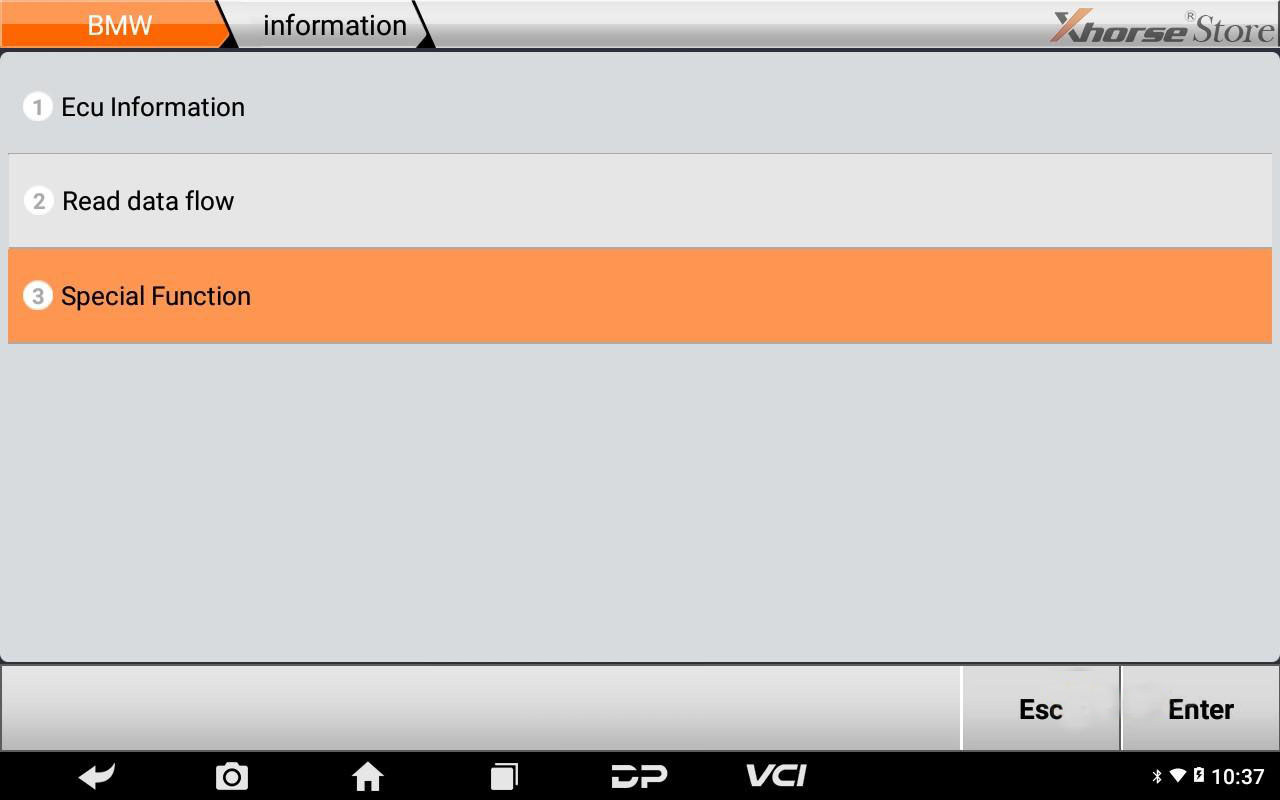

8. Click[Special Function];

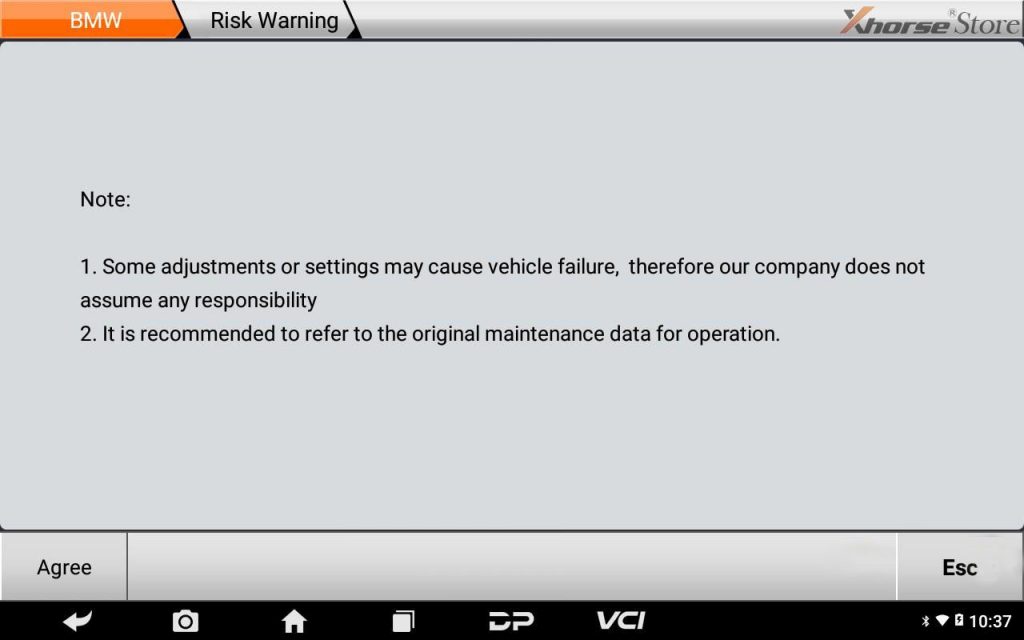

9. Read note, click[Agree];

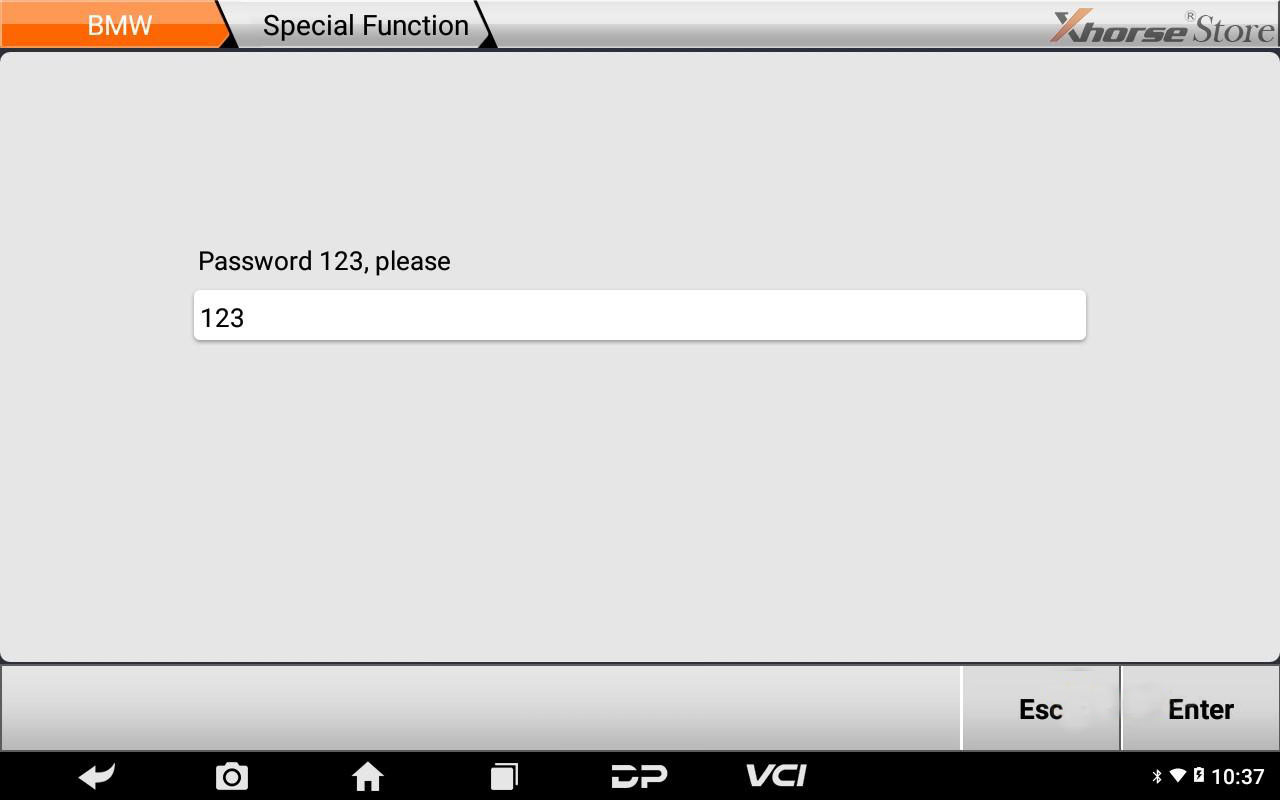

10. Input 123, click[Enter];

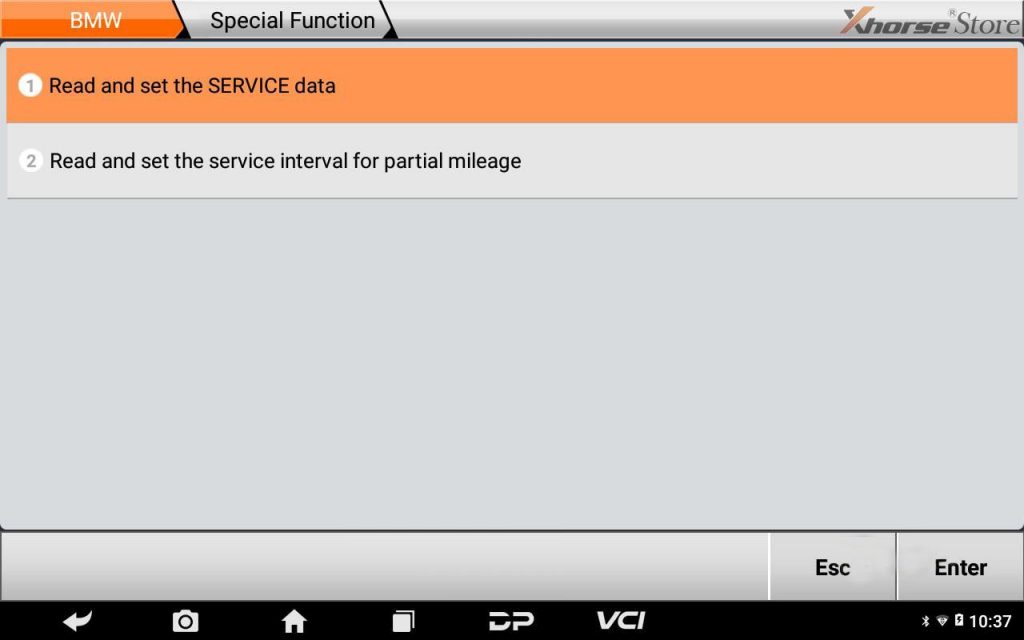

11. Click[Read and set the SERVICE data];

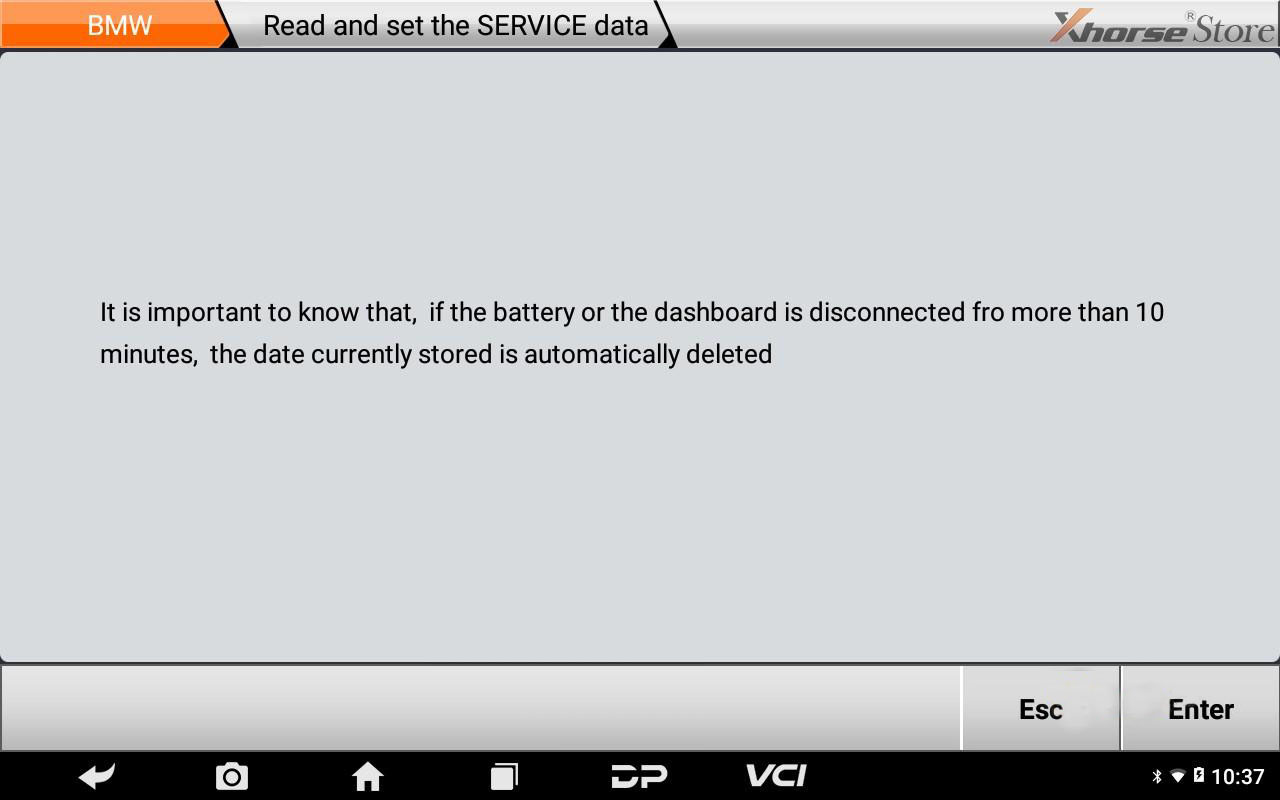

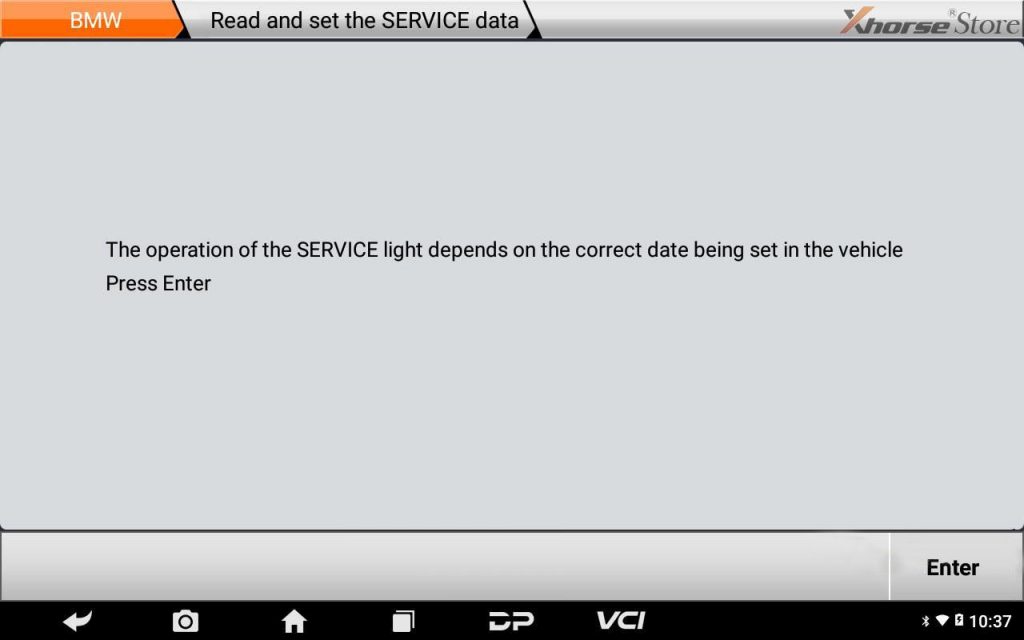

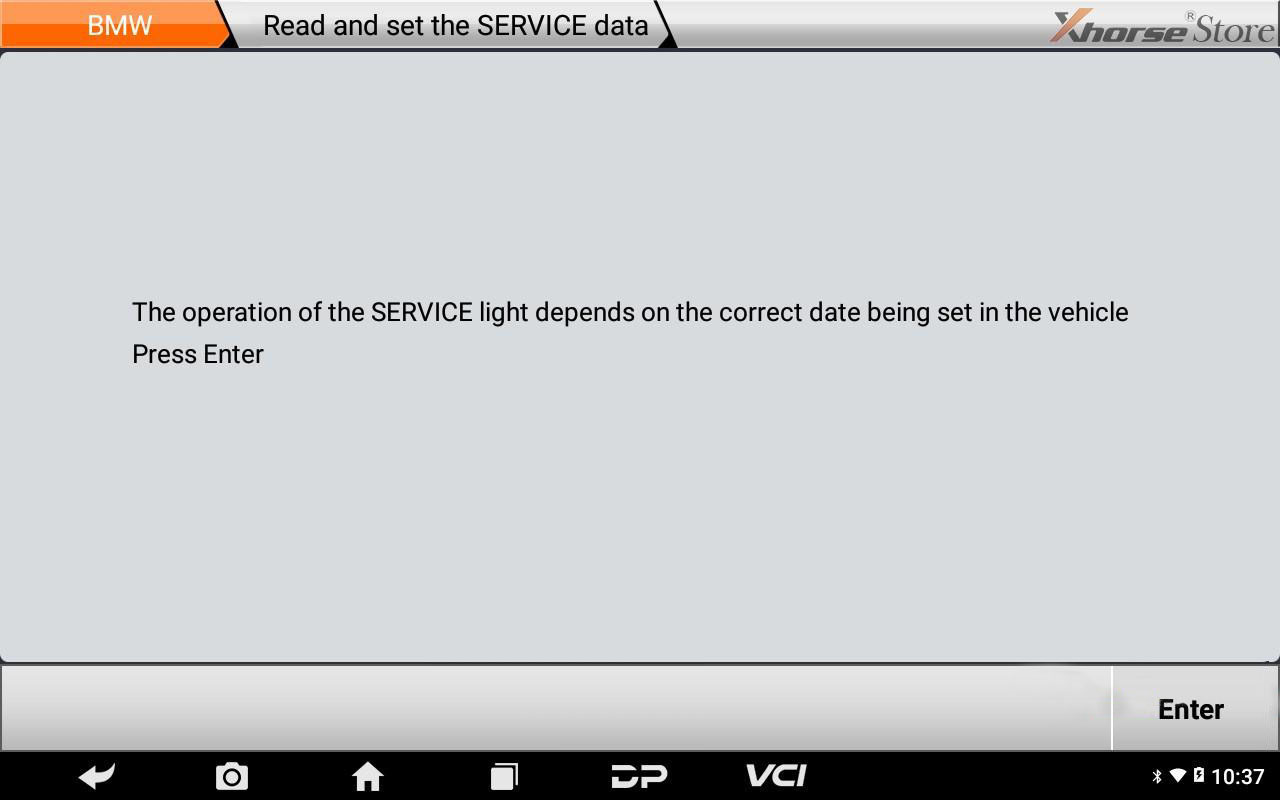

12. Read note below, click[Enter];

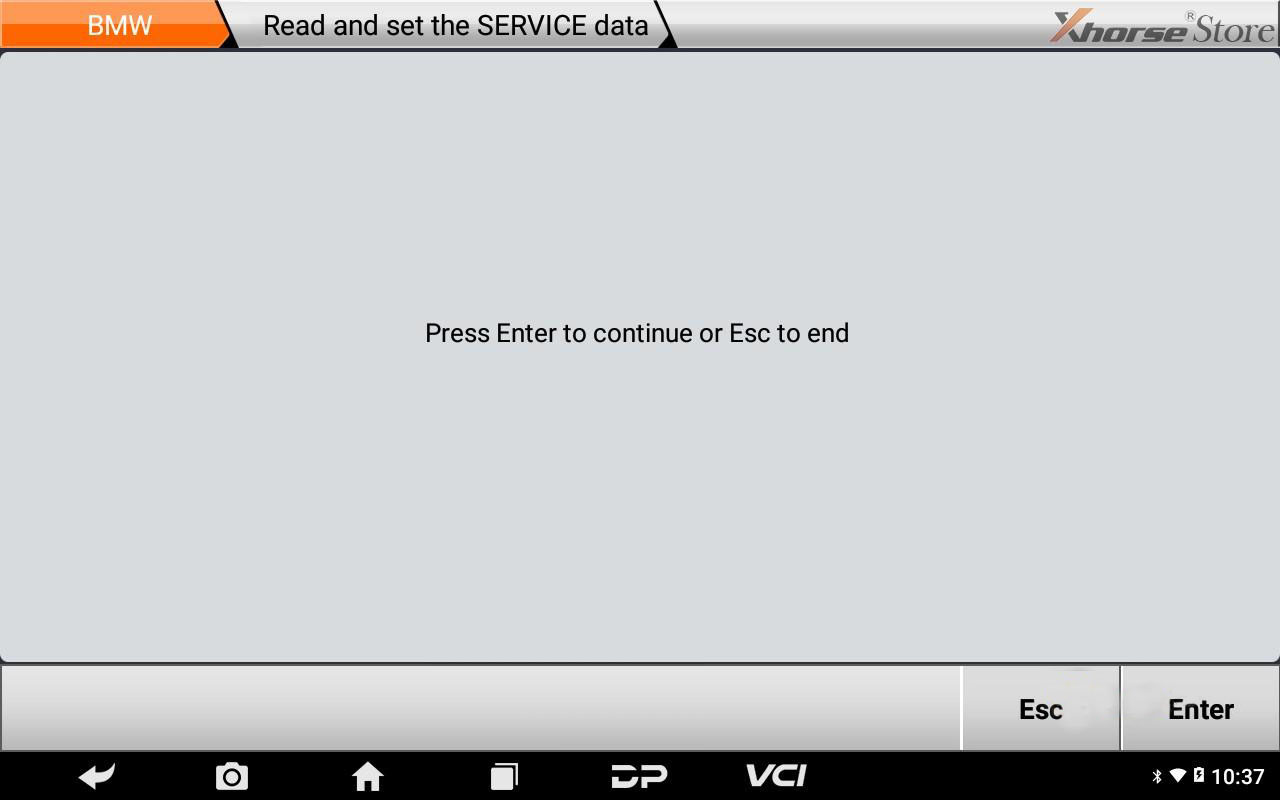

13. Click[Enter];

14. Click[Enter];

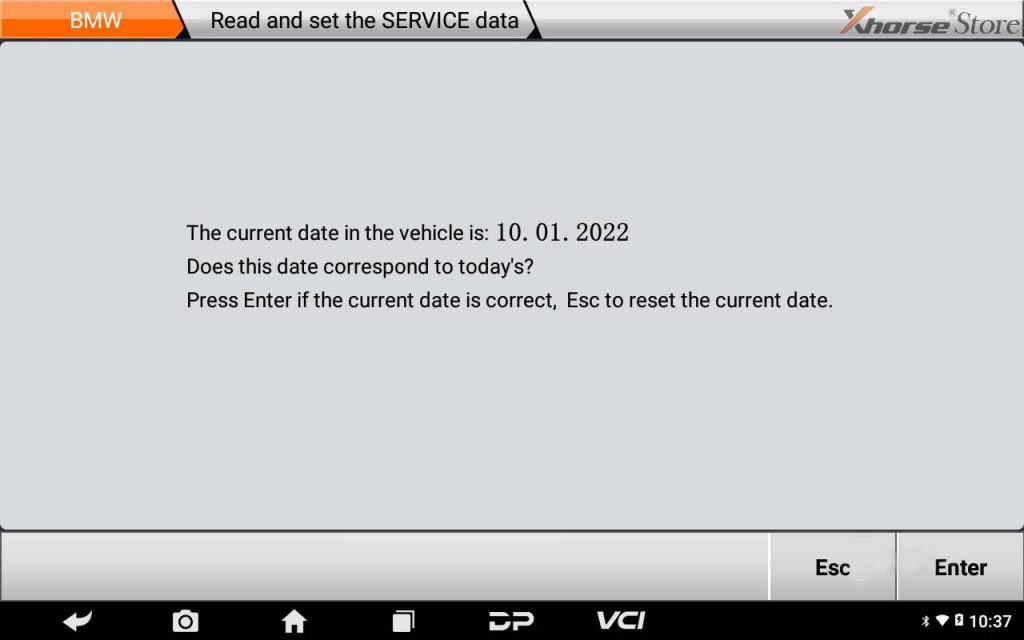

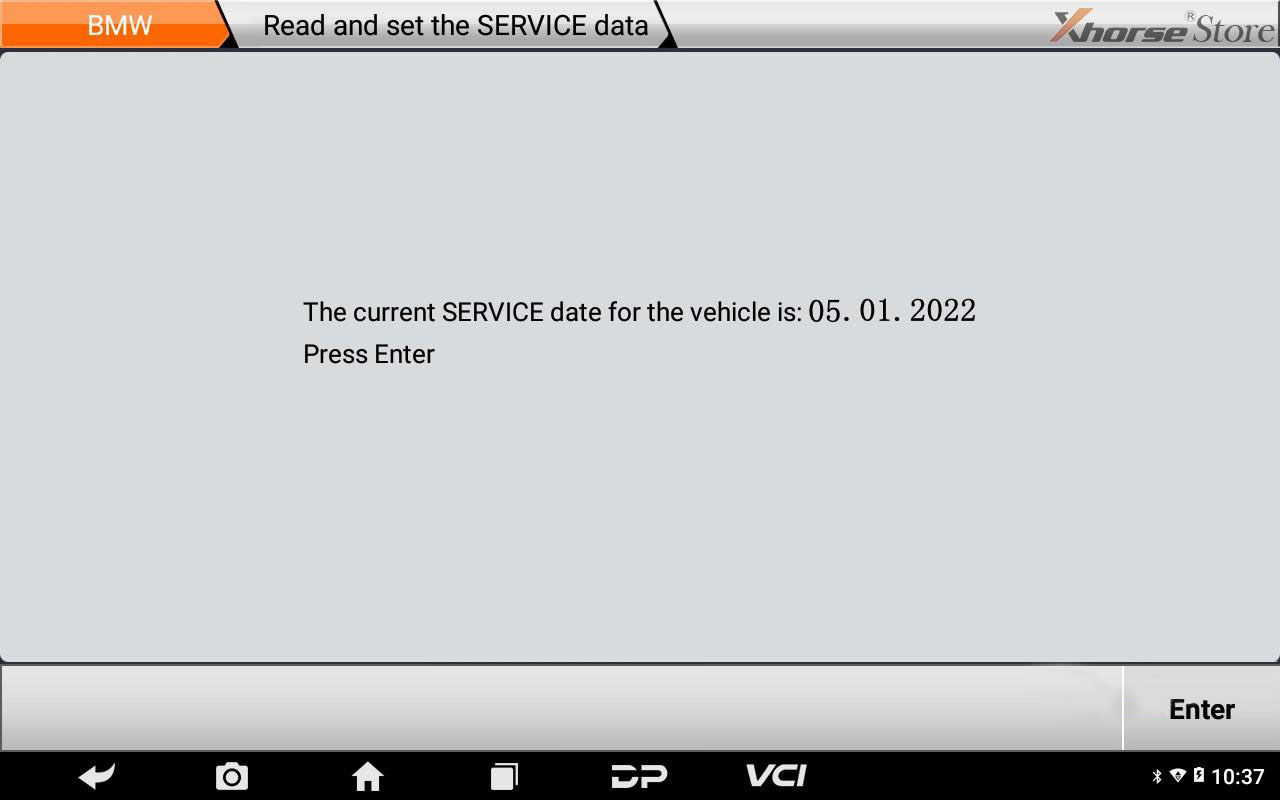

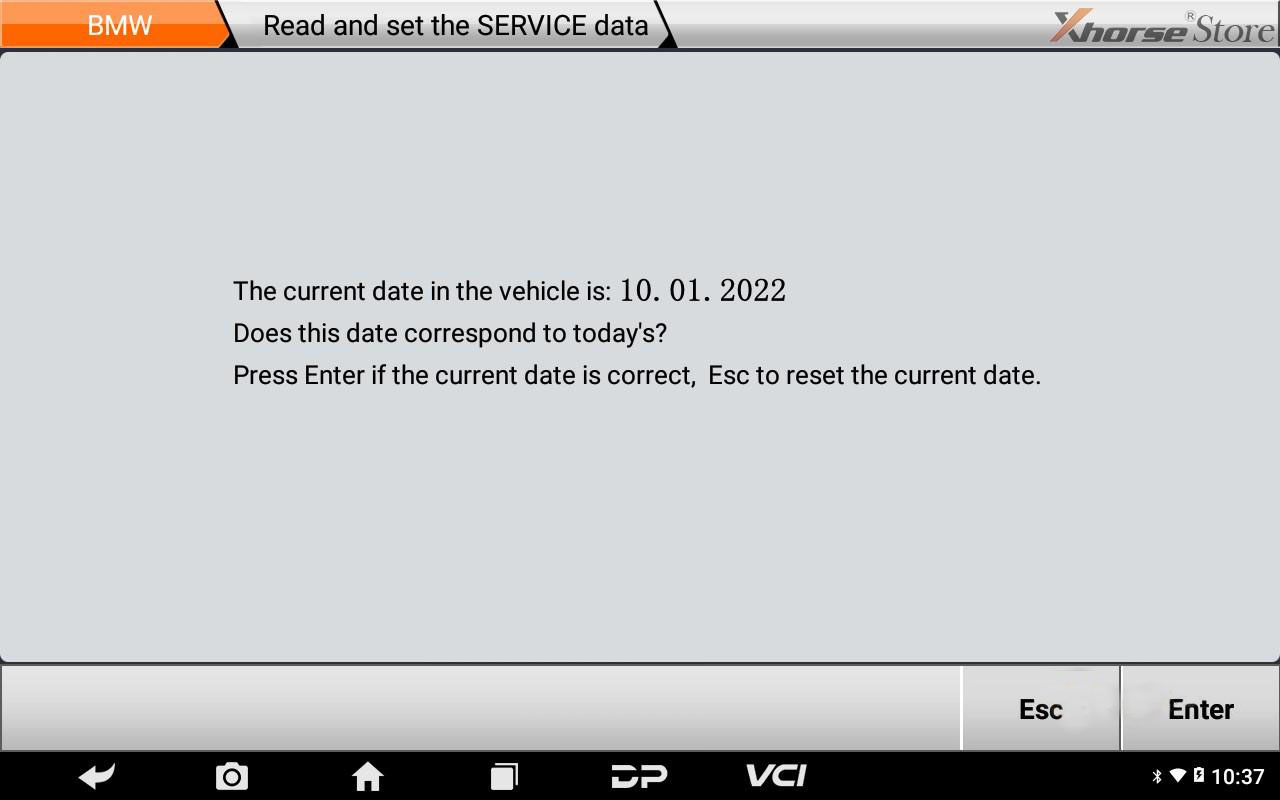

15. Confirm current date, click[Enter];

Tips: if the current date is incorrect, pls click Esc to reset it.

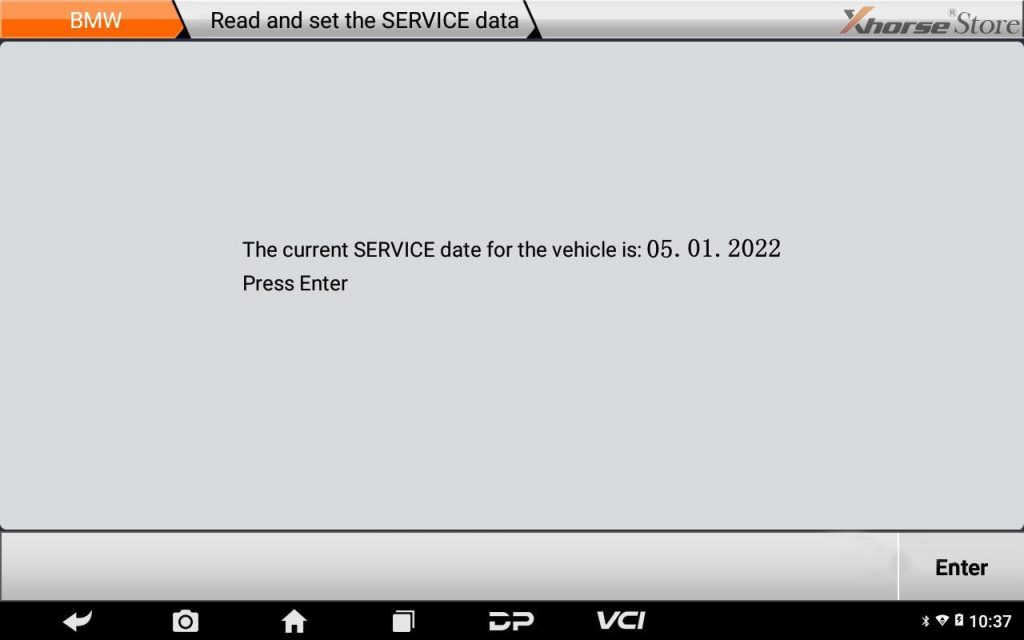

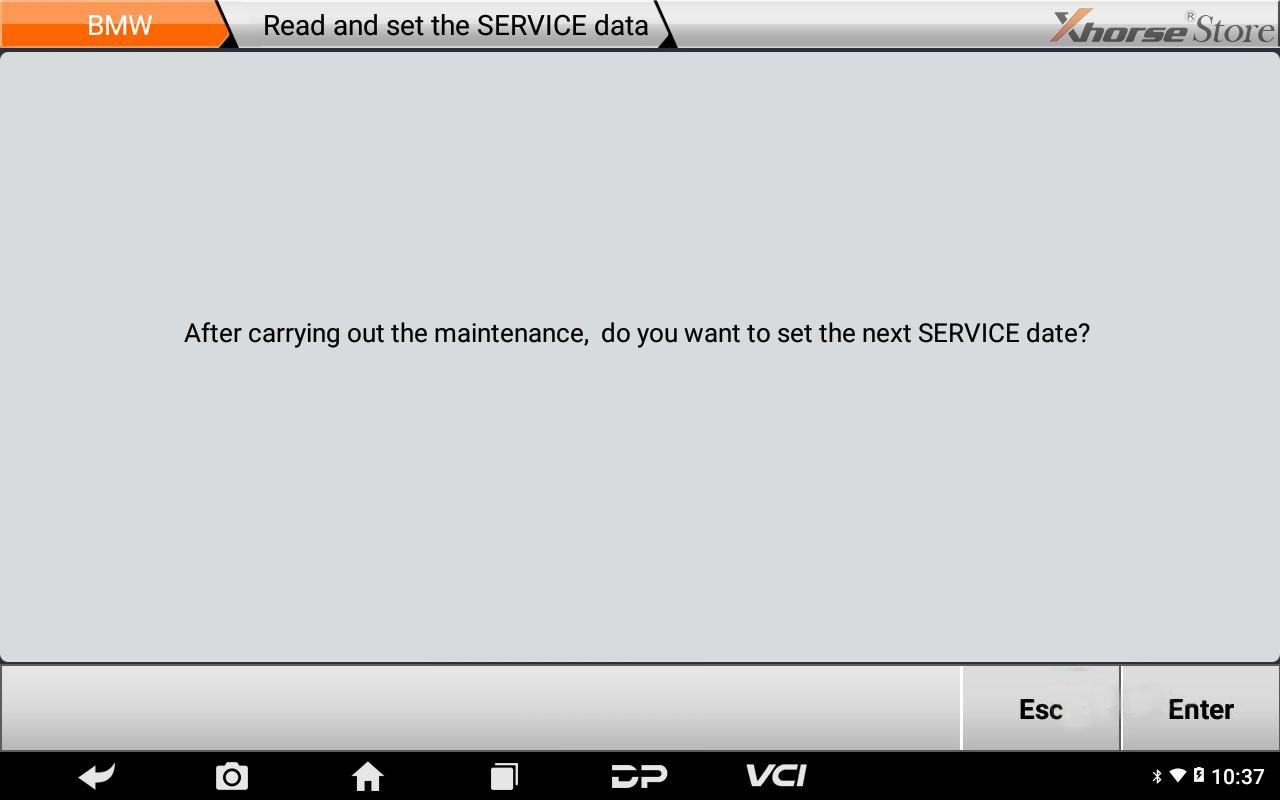

16. Click[Enter];

17. Click[Enter];

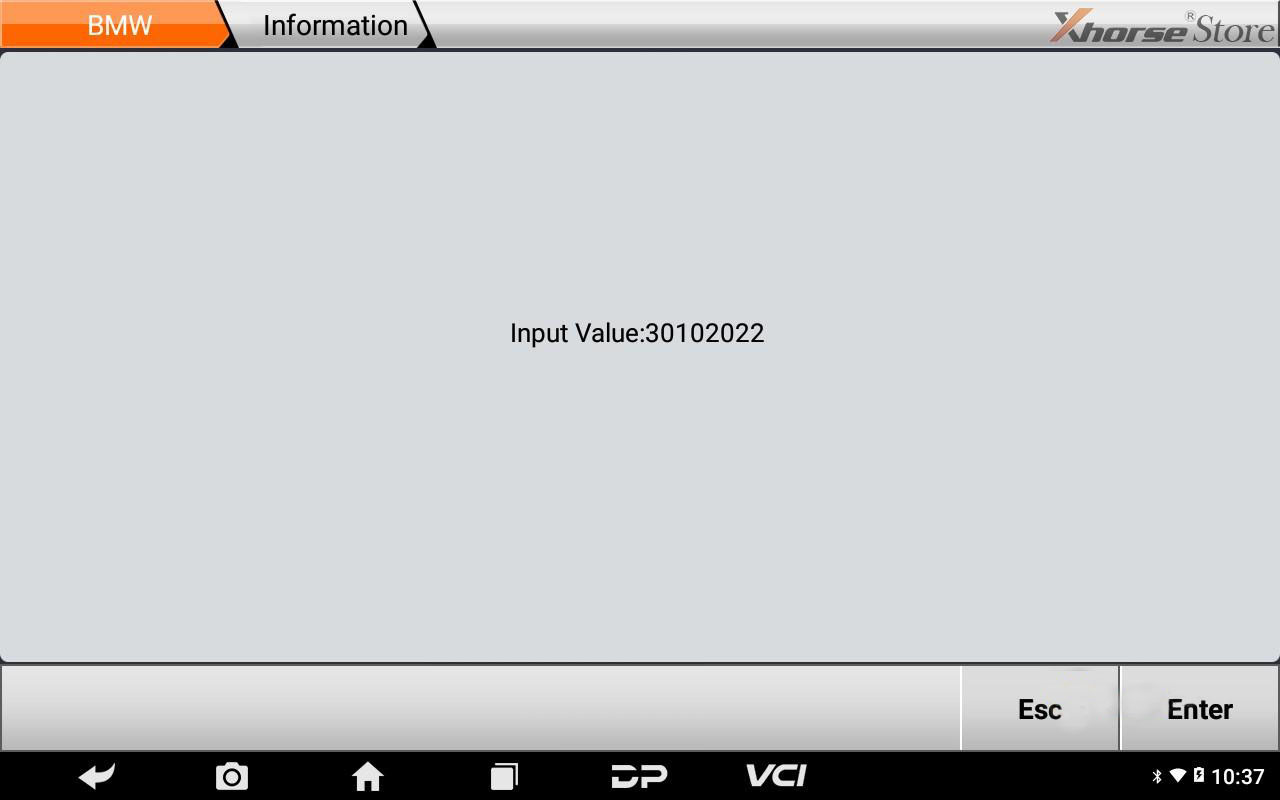

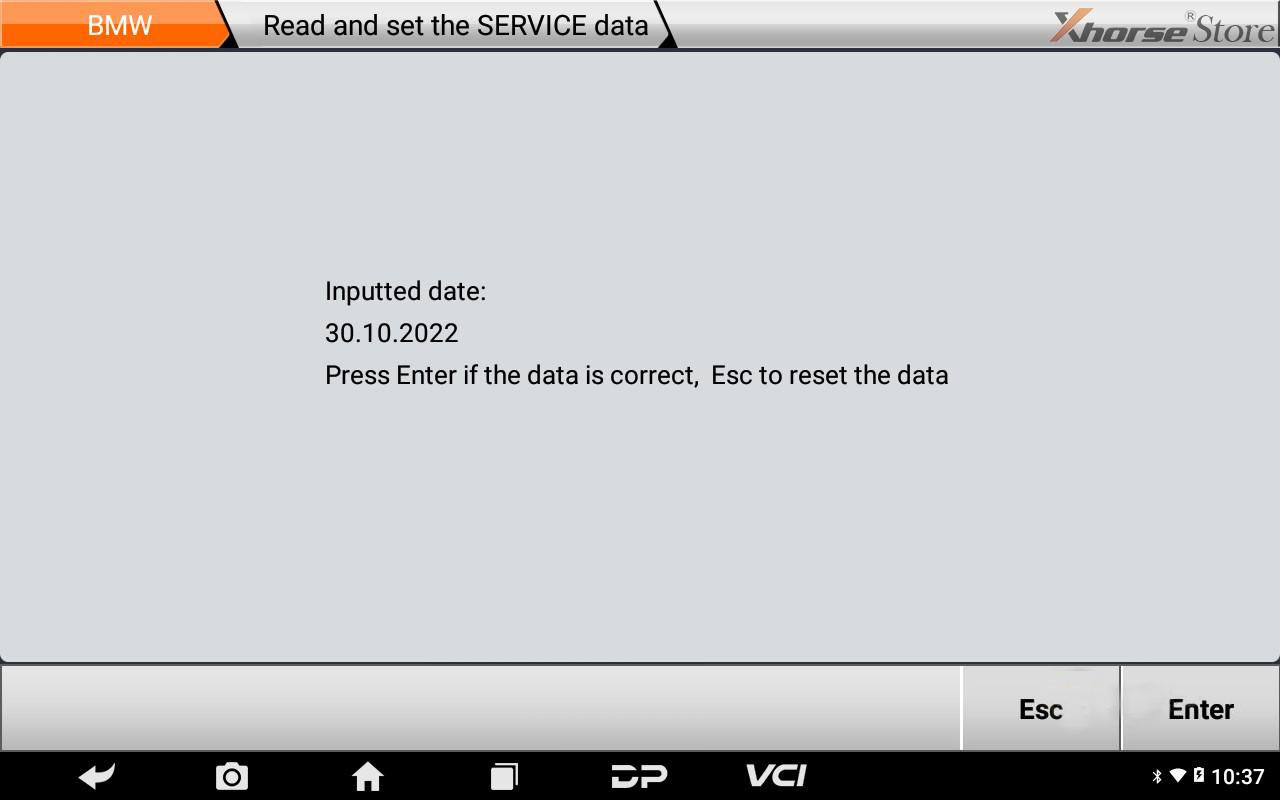

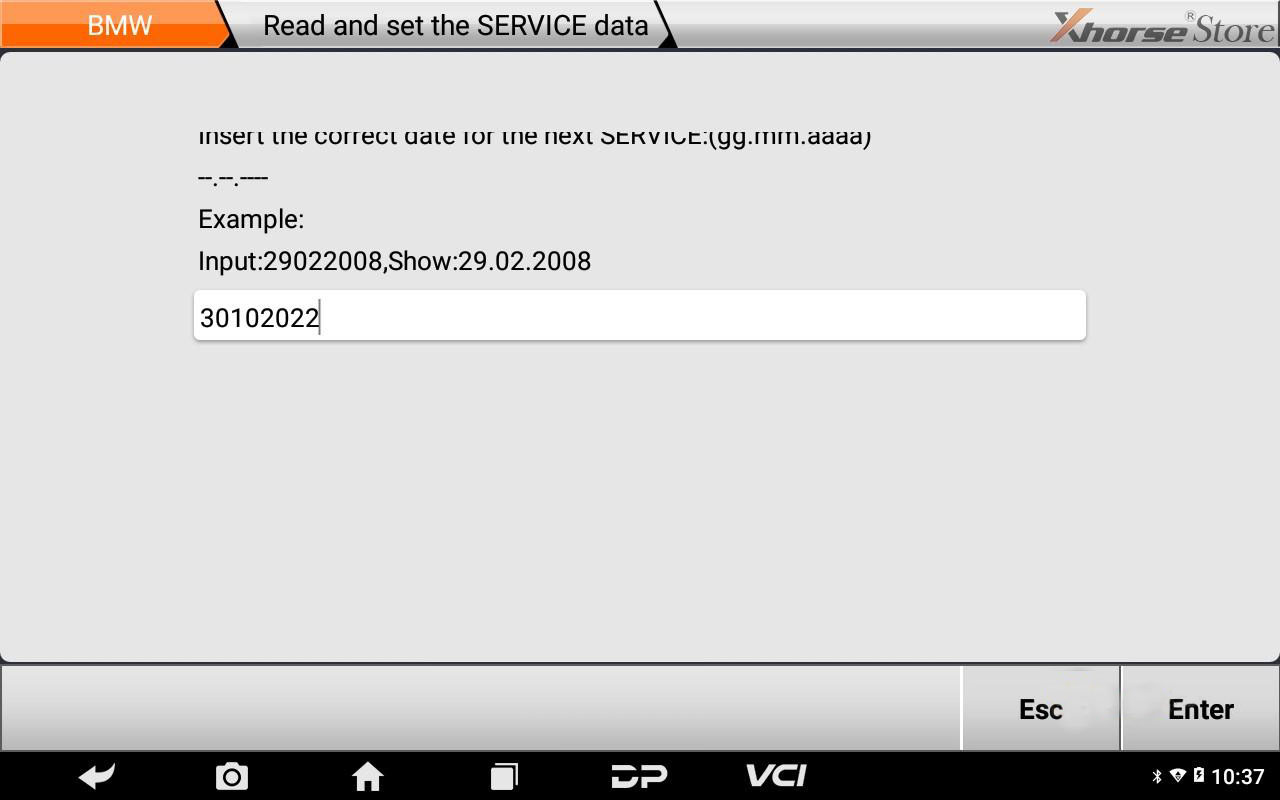

18. Insert date in format such as 30102022, click[Enter];

19. Click[Enter];

20. Click[Enter];

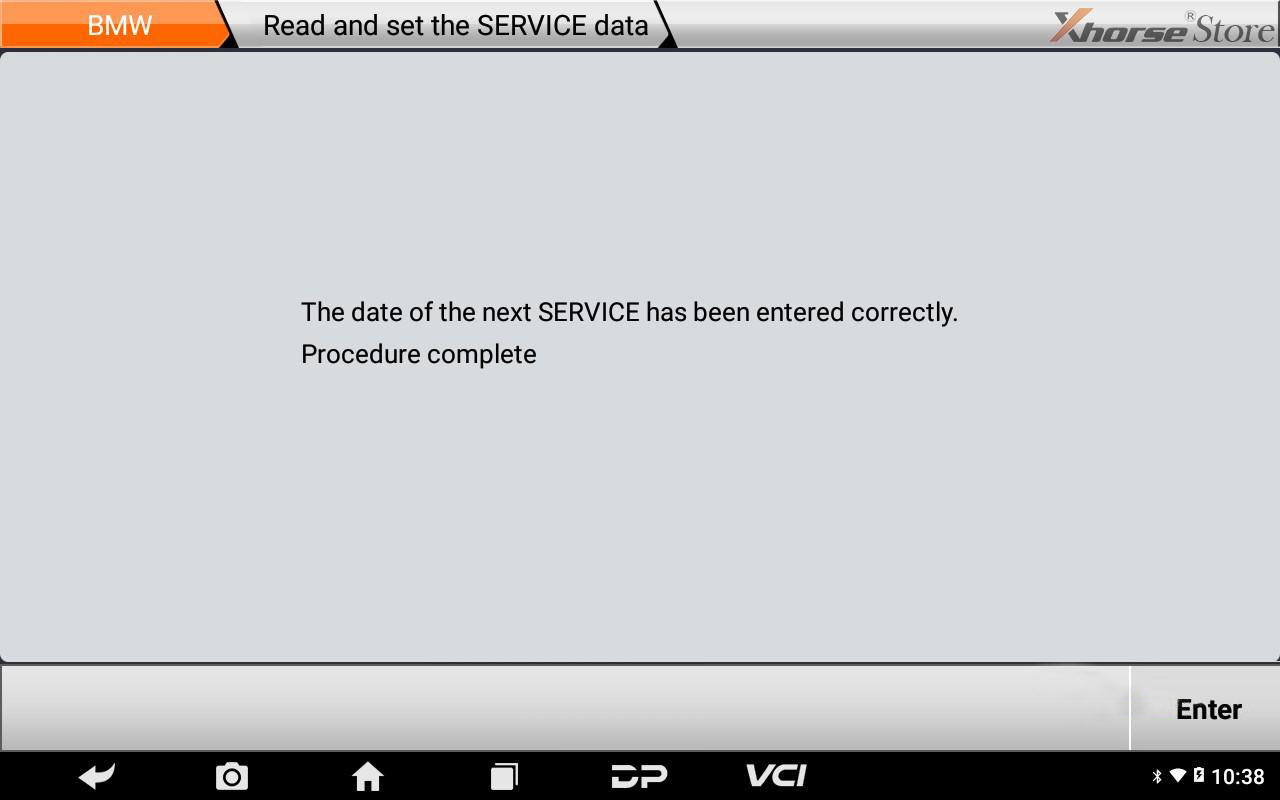

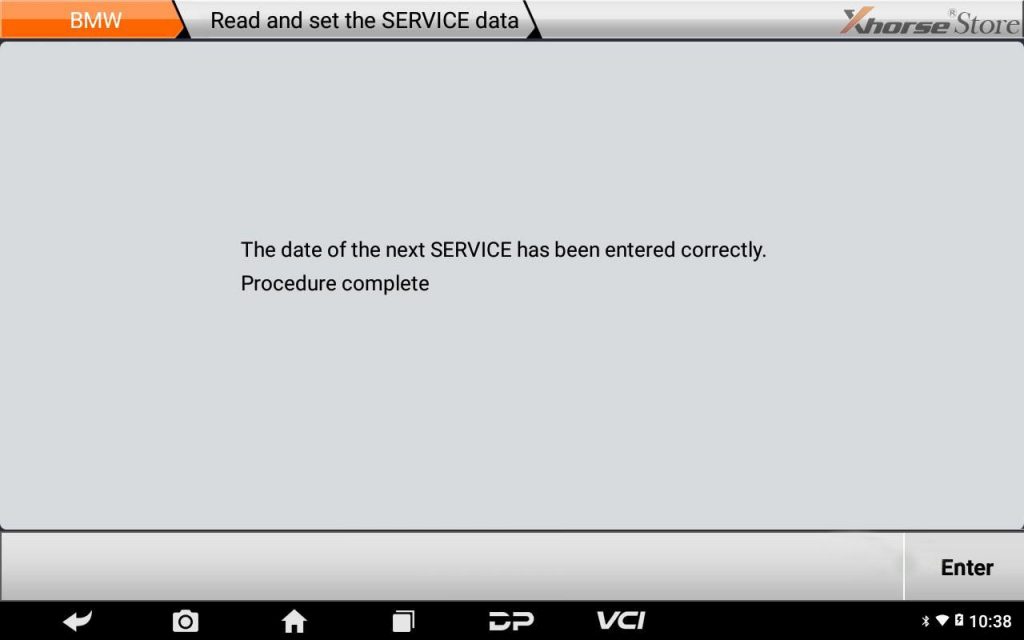

21. Click[Enter];

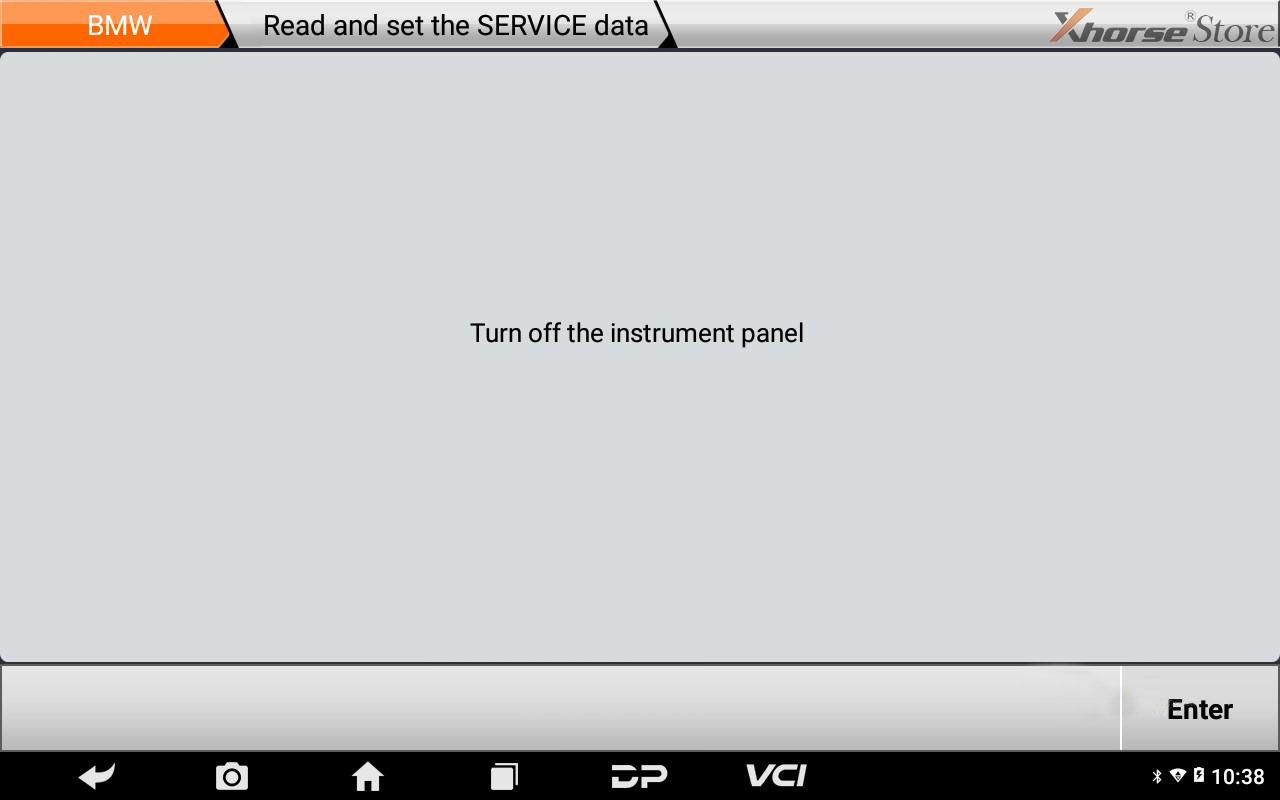

22. Turn off the instrument panel, click[Enter];

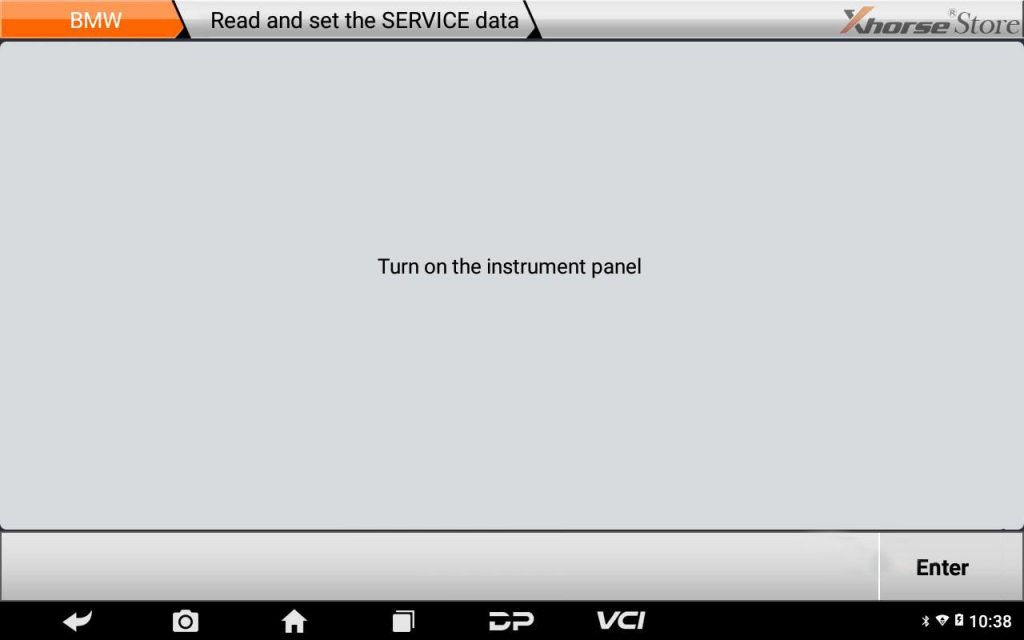

23. Turn on the instrument panel, click[Enter];

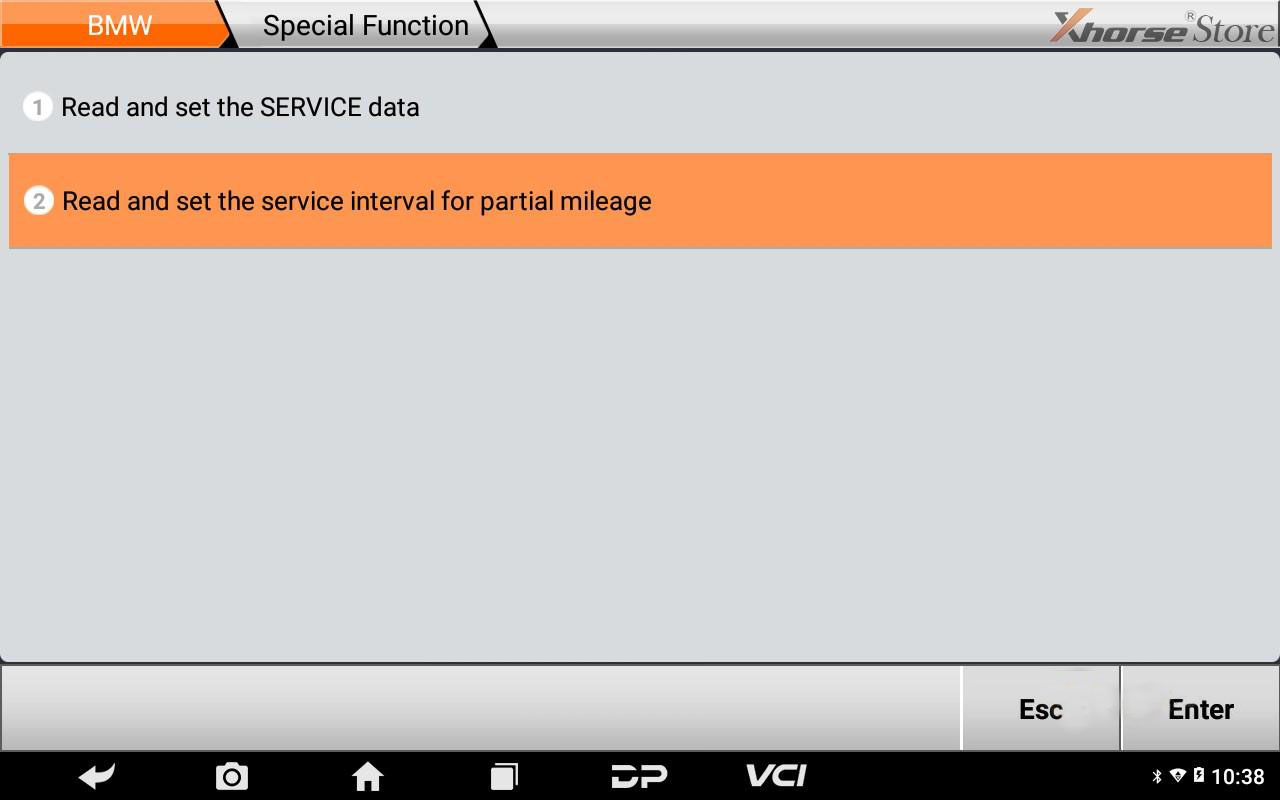

24. Click[Read and set the service interval for partial mileage];

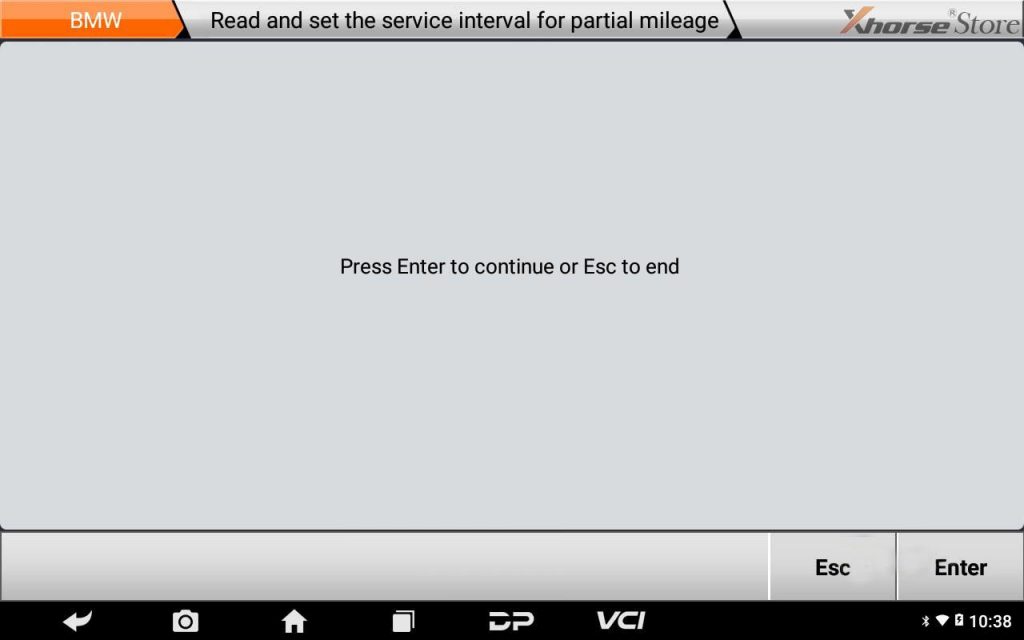

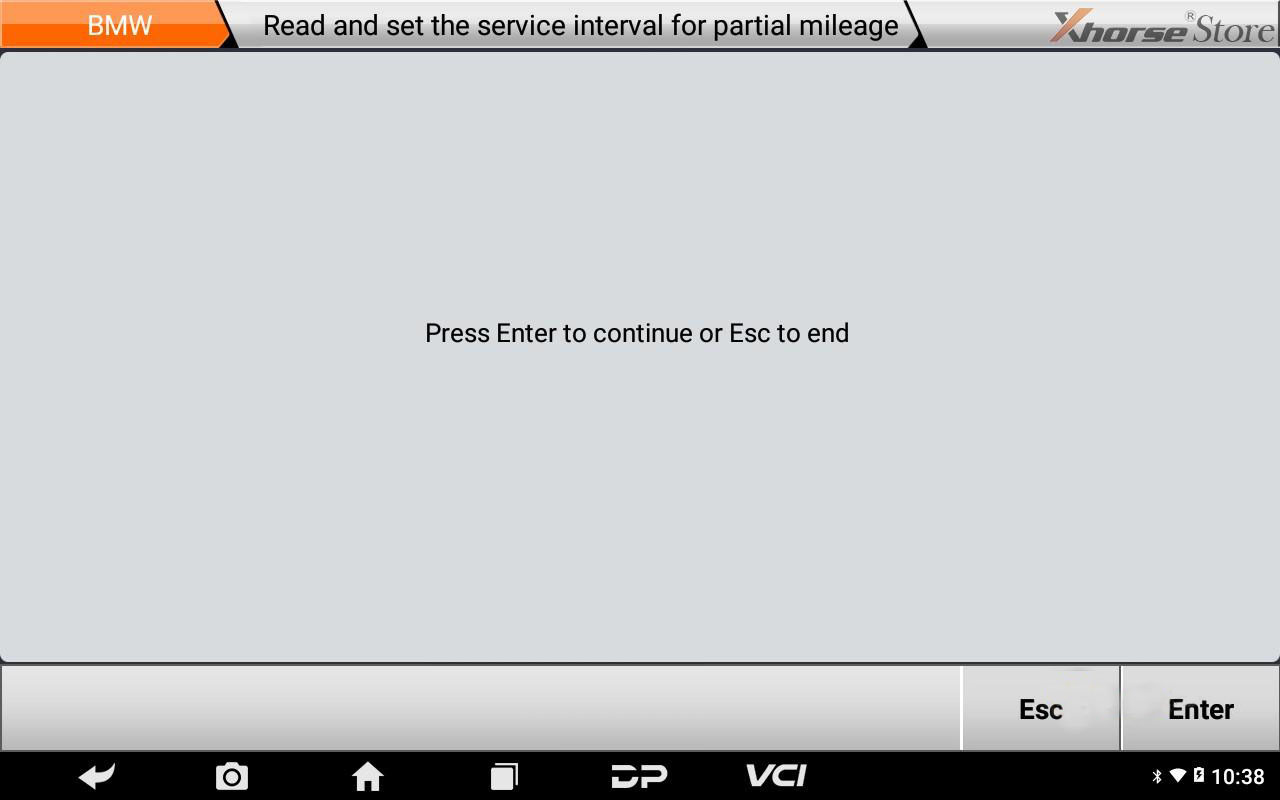

25. Click[Enter];

26. Click[Enter];

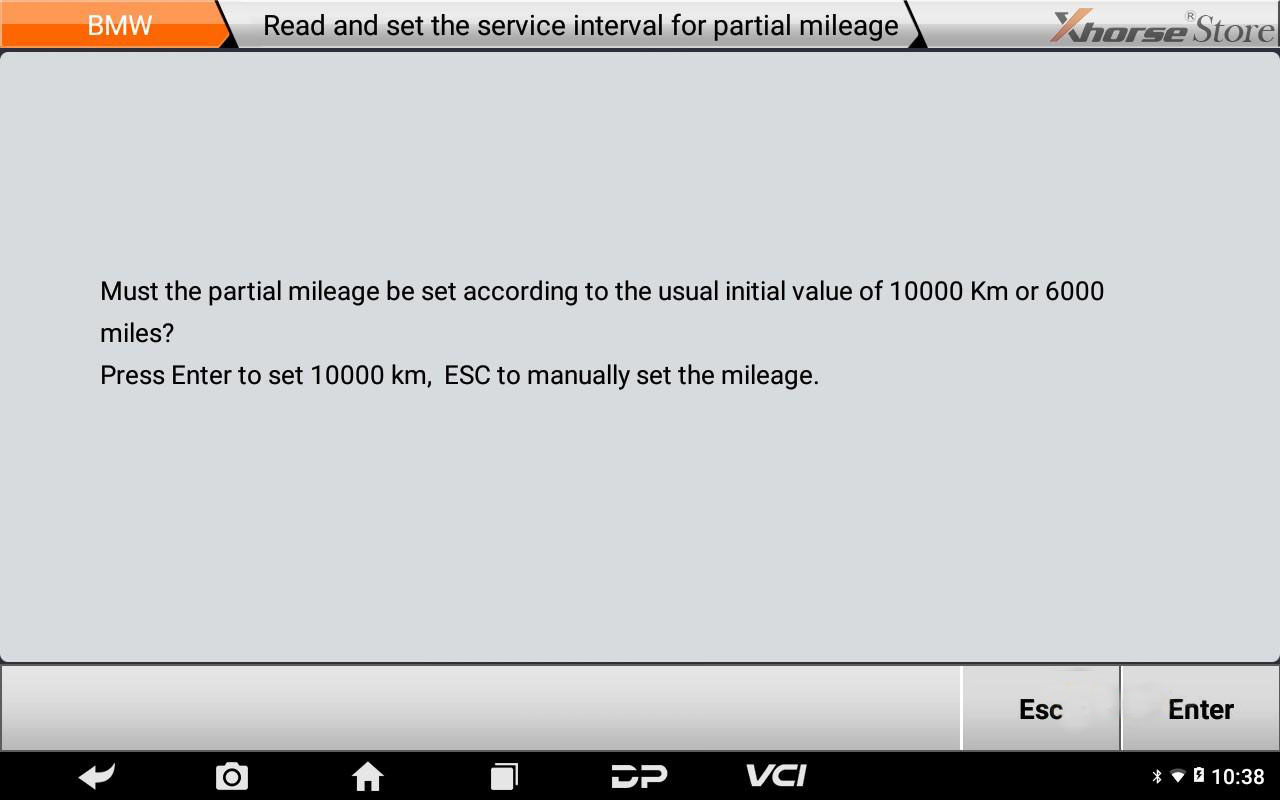

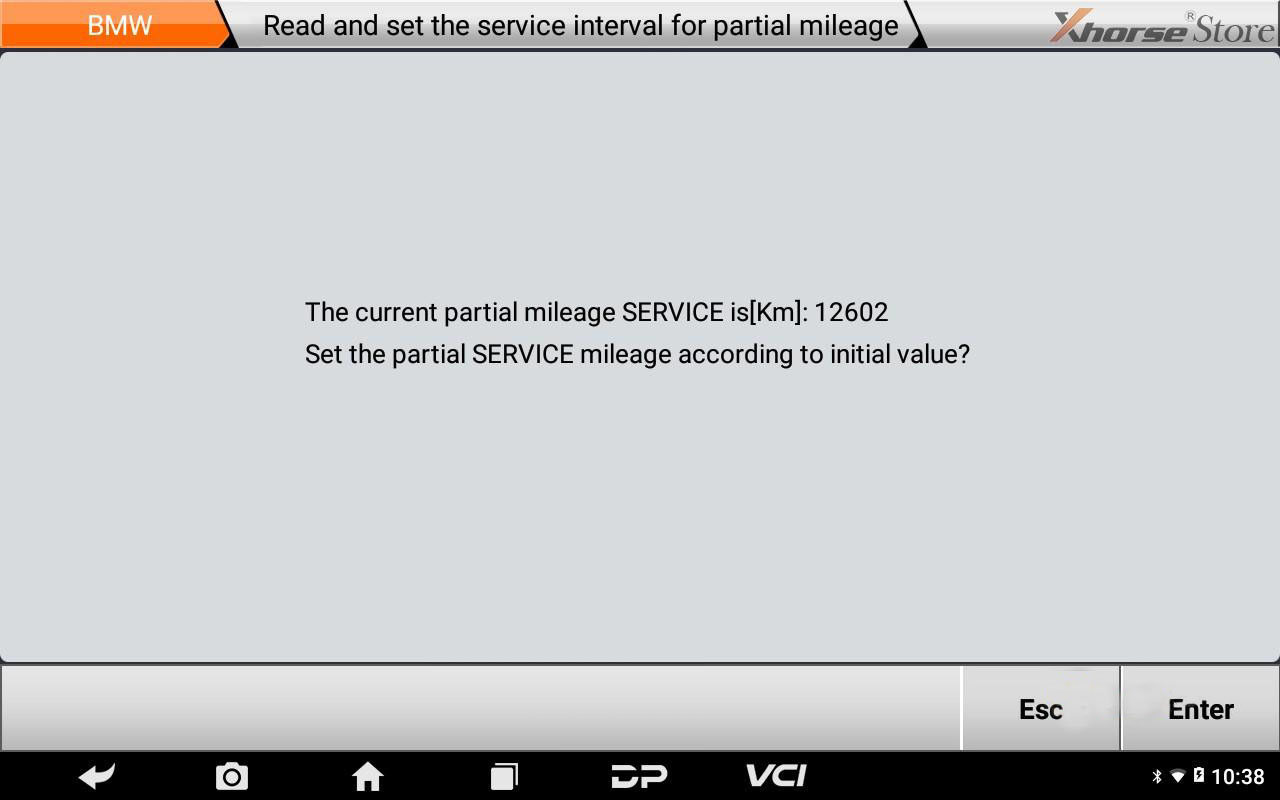

27. Click[Enter]to reset service mileage;

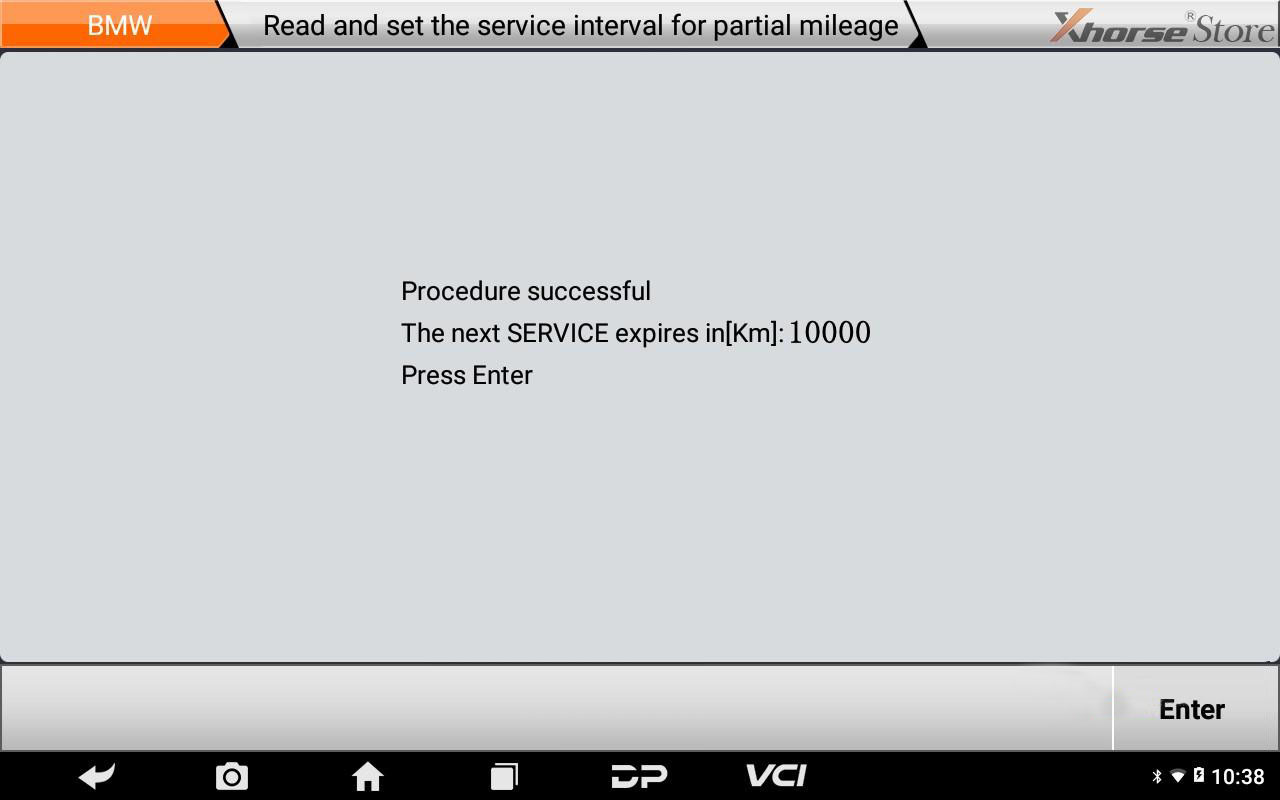

28. Procedure successful, click[Enter];

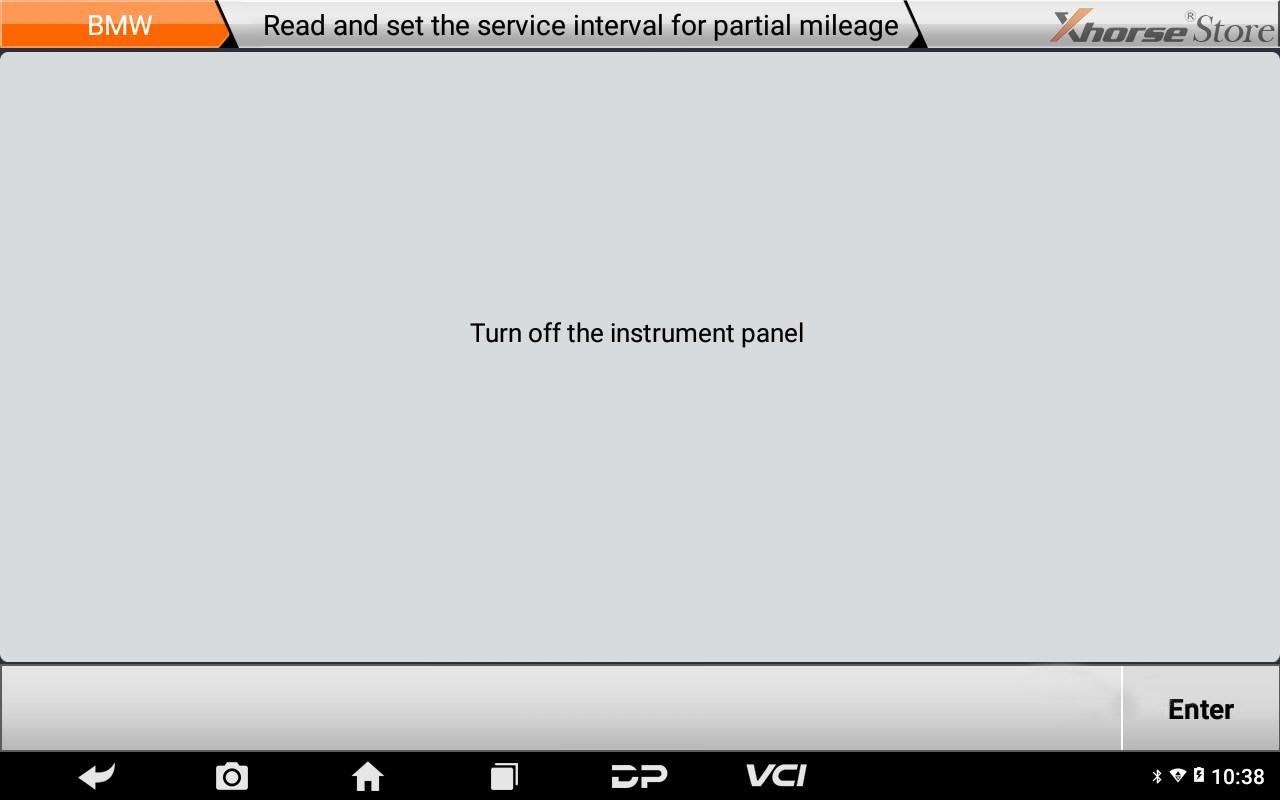

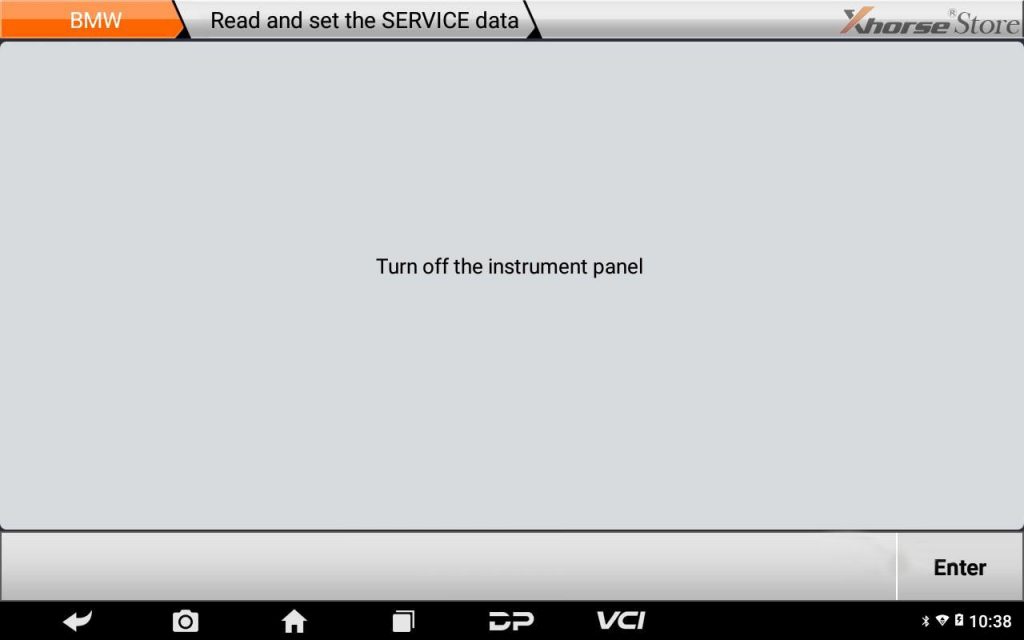

29. Turn off the instrument panel, click[Enter];

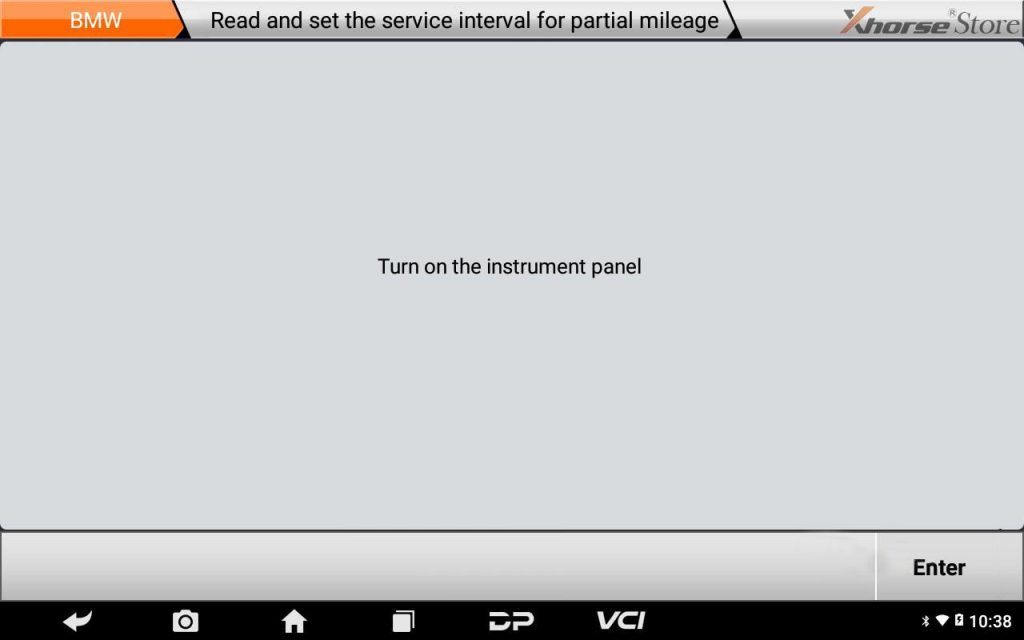

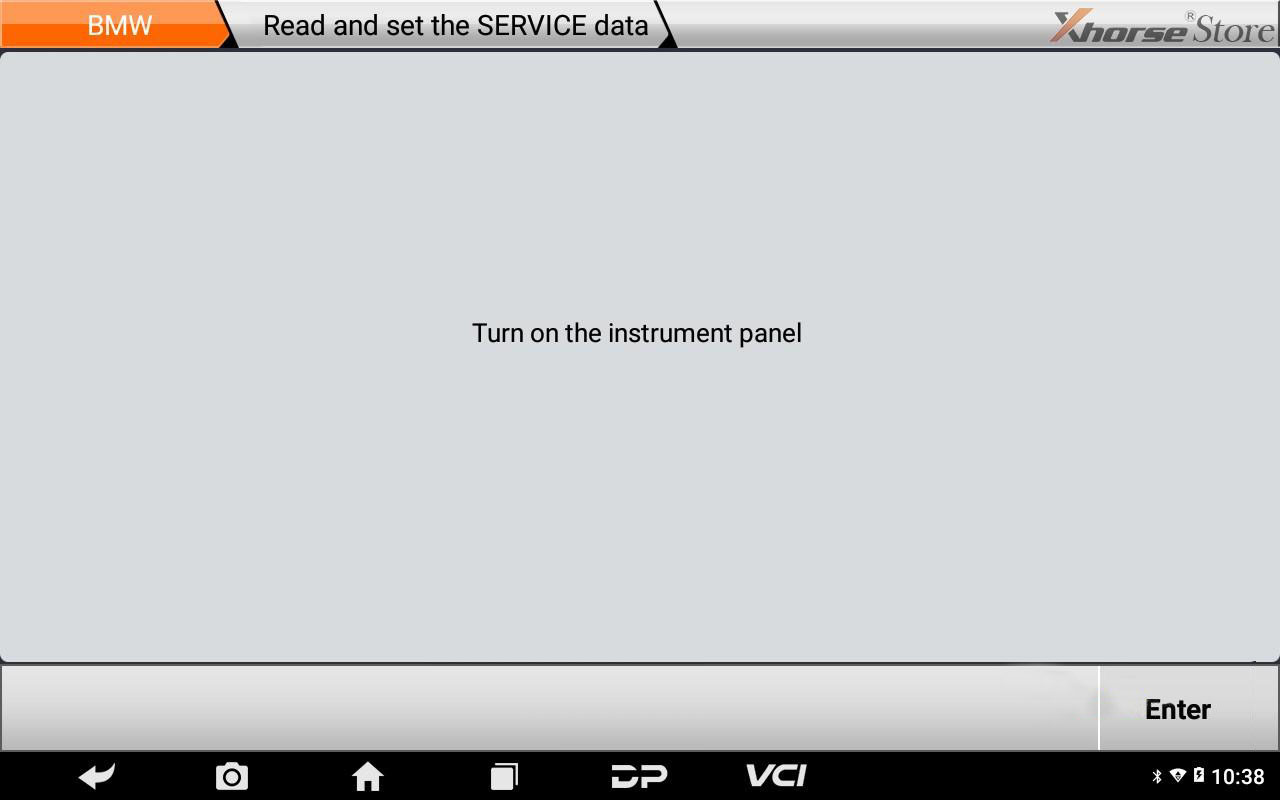

30. Turn on the instrument panel, click[Enter];

31. Operation done.

Pls strictly follow your device tips in your operation process.
