SRS – TESLA MODEL S
1)Remove Air Bag Control Module from the car and open it.

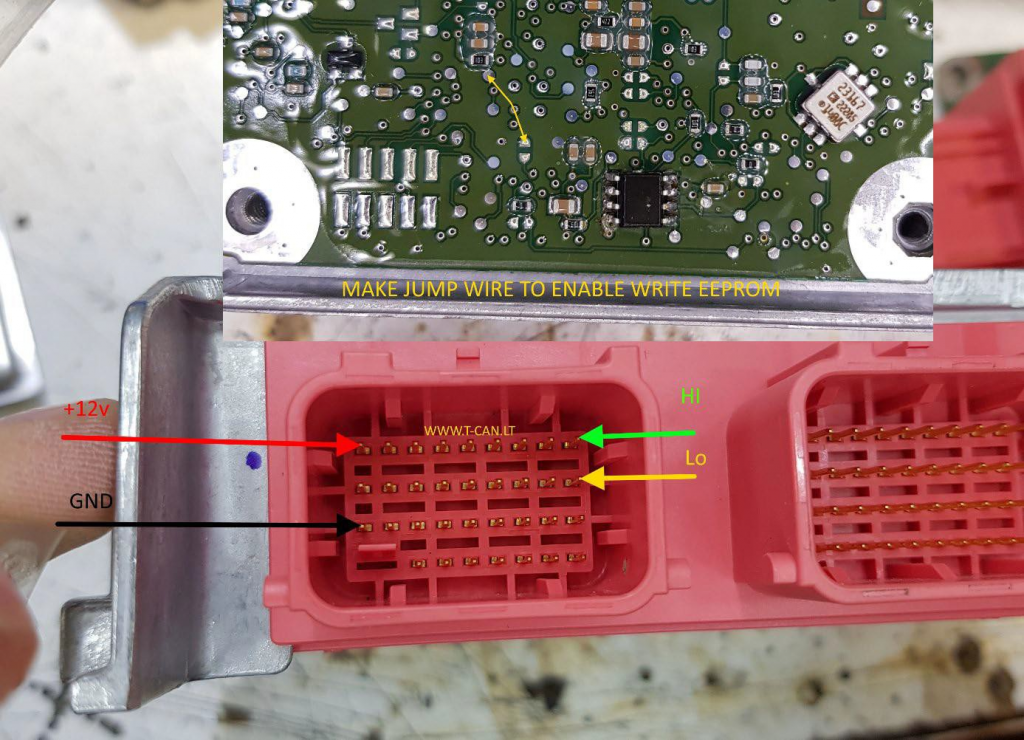

2)Connect Tsla PRO to the module according the photo as shown in the following and don’t forget about to soldering jumper wire to enable write EEPROM. (wiring diagram can be find on next page)

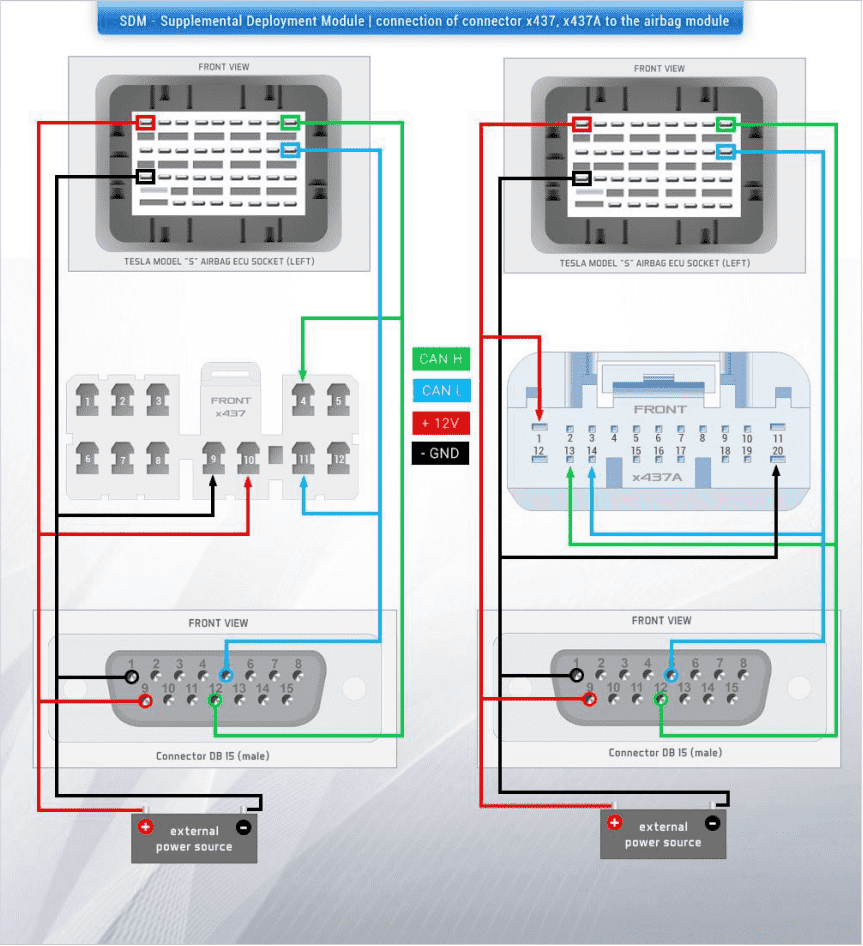

How to connect Tsla PRO with Airbag Module on the bench using x437 and x437A connector

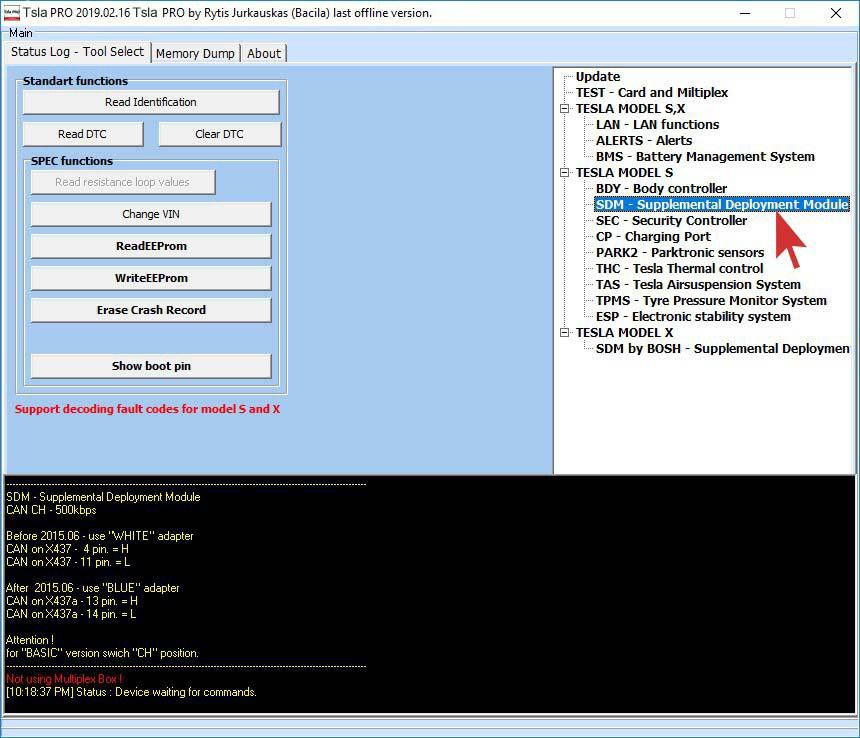

if the connection between the car and Tsla PRO is established, we can go to the software
As you can see, some of the useful information can be found in the program’s dialog box but regarding making connection between Tsla PRO and AirBag Module, means connection with omitting Multiplexer !!! .. doesn’t apply hw 04 and above
Now you are able to: Read and Clear Diagnostic Trouble Codes (DTC) faults, Clear Crash log and Restart ECU.

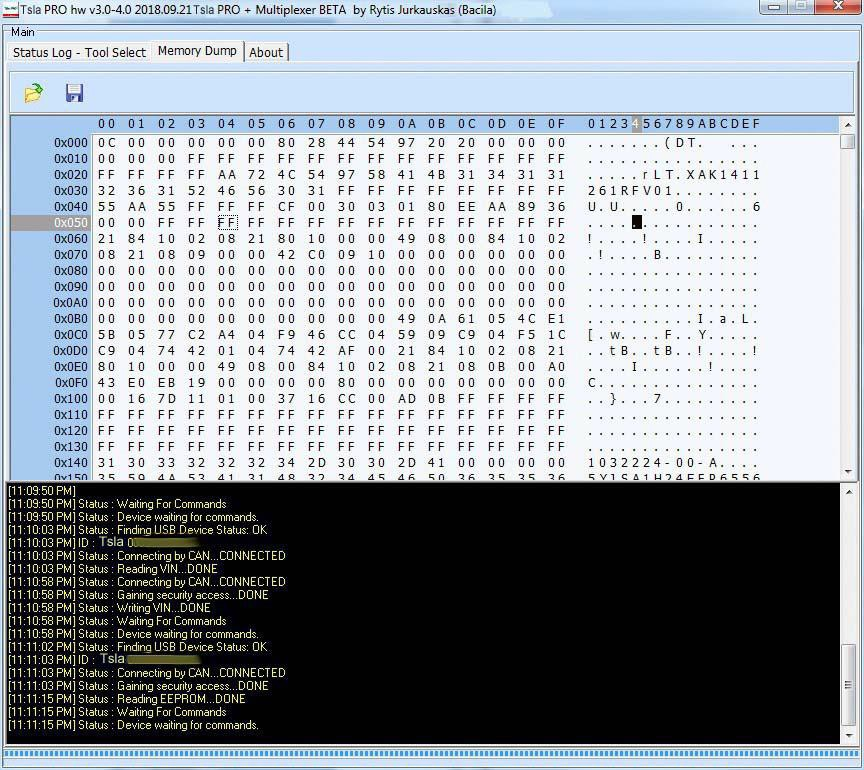

Just example: Tsla PRO while reading the EEPROM memory
