If you’re operating a Deutz engine with an Electronic Diesel Control (EDC17) and need to adjust the constant speed settings, SerDia2010 diagnostic software is your go-to tool. This guide will walk you through the necessary steps to modify the constant speed for your Deutz engine, ensuring that you can achieve the desired engine performance.
Related Contents:
Deutz Diagnostic Kit DECOM for Deutz Engine
2023 Deutz Serdia2010 v14.1.9.1 Diagnostic Software Free Download
Deutz Serpic EPC Parts Catalogue 2014 2012 Free Download

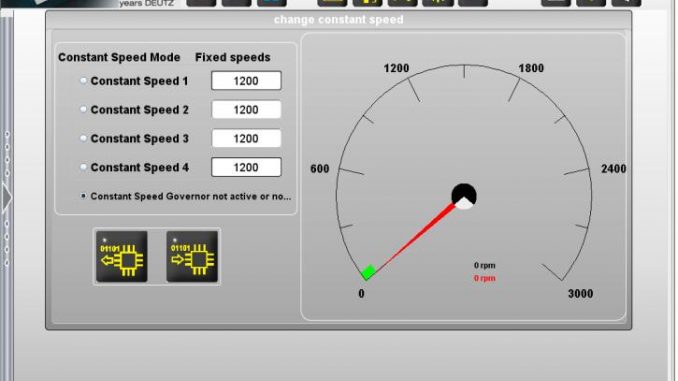

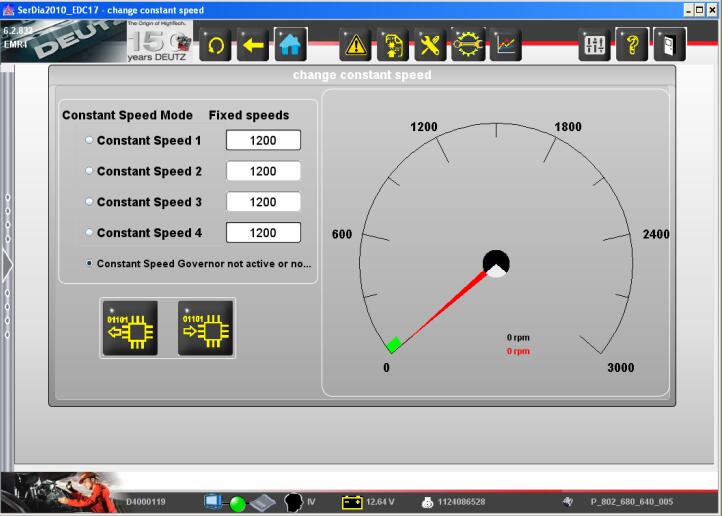

Screen change constant speed
The actual setting for the fixspeed values are shown on the left upper part of the screen.
The setting of the switch is marked, too
Additionally the actual engine speed and the speed setpoint is shown as value and tachometer
on the right side inclusive hysteresis to have a qualitative feedback.
Button “read from ECU”:
Button “write values to ECU”:
Values shown on the screen for fixspeed 2 (first intermediate speed)
and fixspeed 3 (2. intermediate speed) are flashed to the ECU.
If the engine is still running while activation of this procedure, SerDia will ask to stop
engine automatically

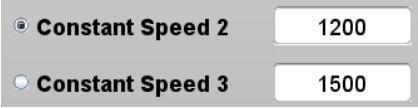

Textbox “Constant Speed 2″,”Constant Speed 3”:
Changes in these textboxes have to be confirmed with ENTER.
After confirmation the new value will get active, if switched on (see marking point at fixspeed).
It is not possible to install a speed below fixspeed one or above fixspeed four.
The fixspeeds 1 and 4 are not changeable in this screen (see hints above).
