How to Activate Interior Lights Fade-in and Out Function by VCDS for Seat Leon

This short post will show you guide on how to do interior lights with fade-in fade-out activation by VCDS for Seat Lean. More function of VCDS, please refer to VCDS CASES.

Procedures:

Click “Select” to select control module

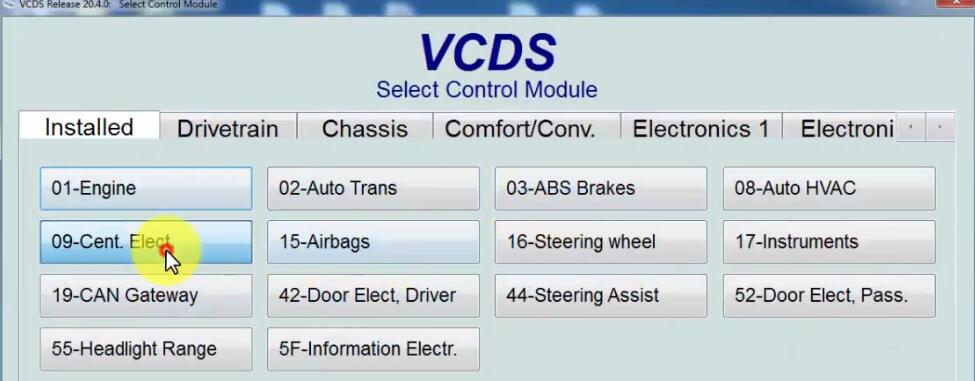

Select “09-Cent. Elect”

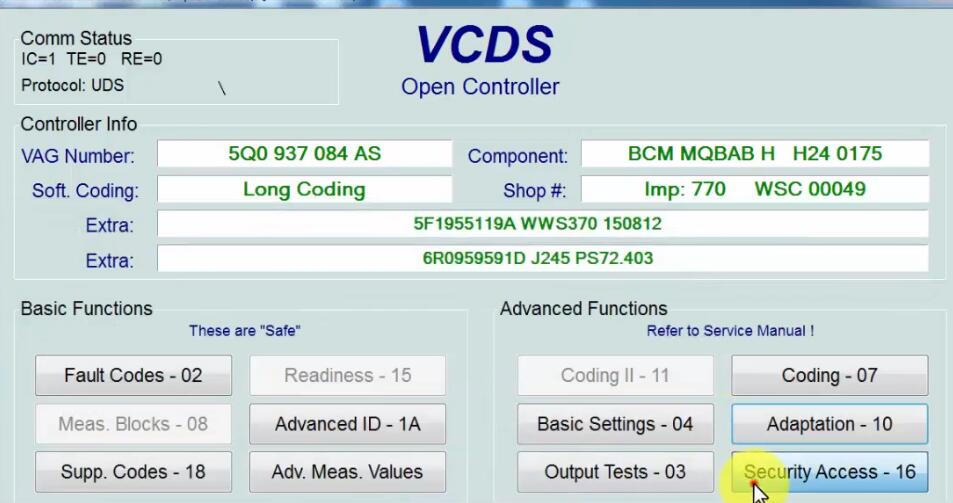

Select “Security Access-16”

Input “31347”, then click “Do It”

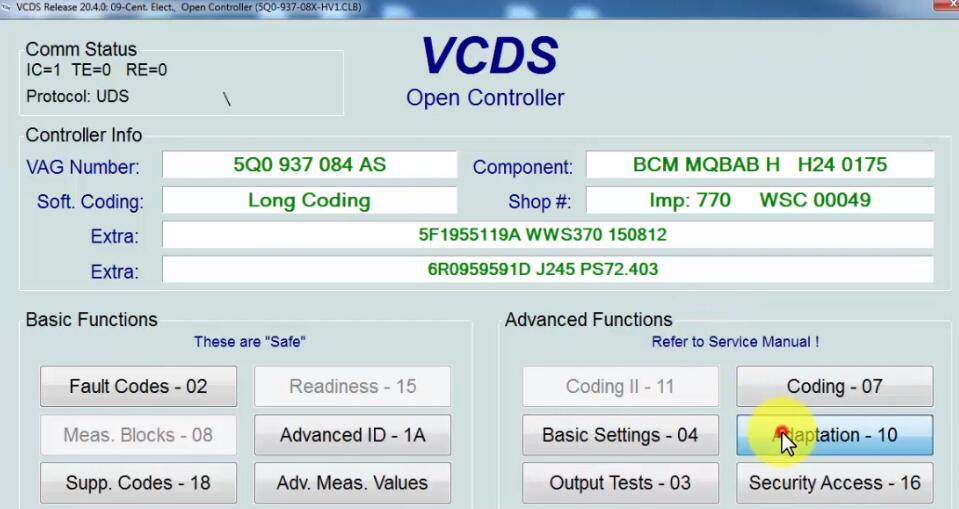

Select “Adaptation-10”

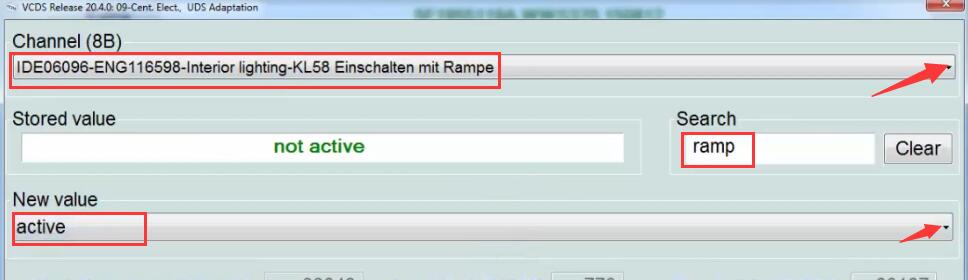

Input “ramp” >>”active”, then click “Do It”

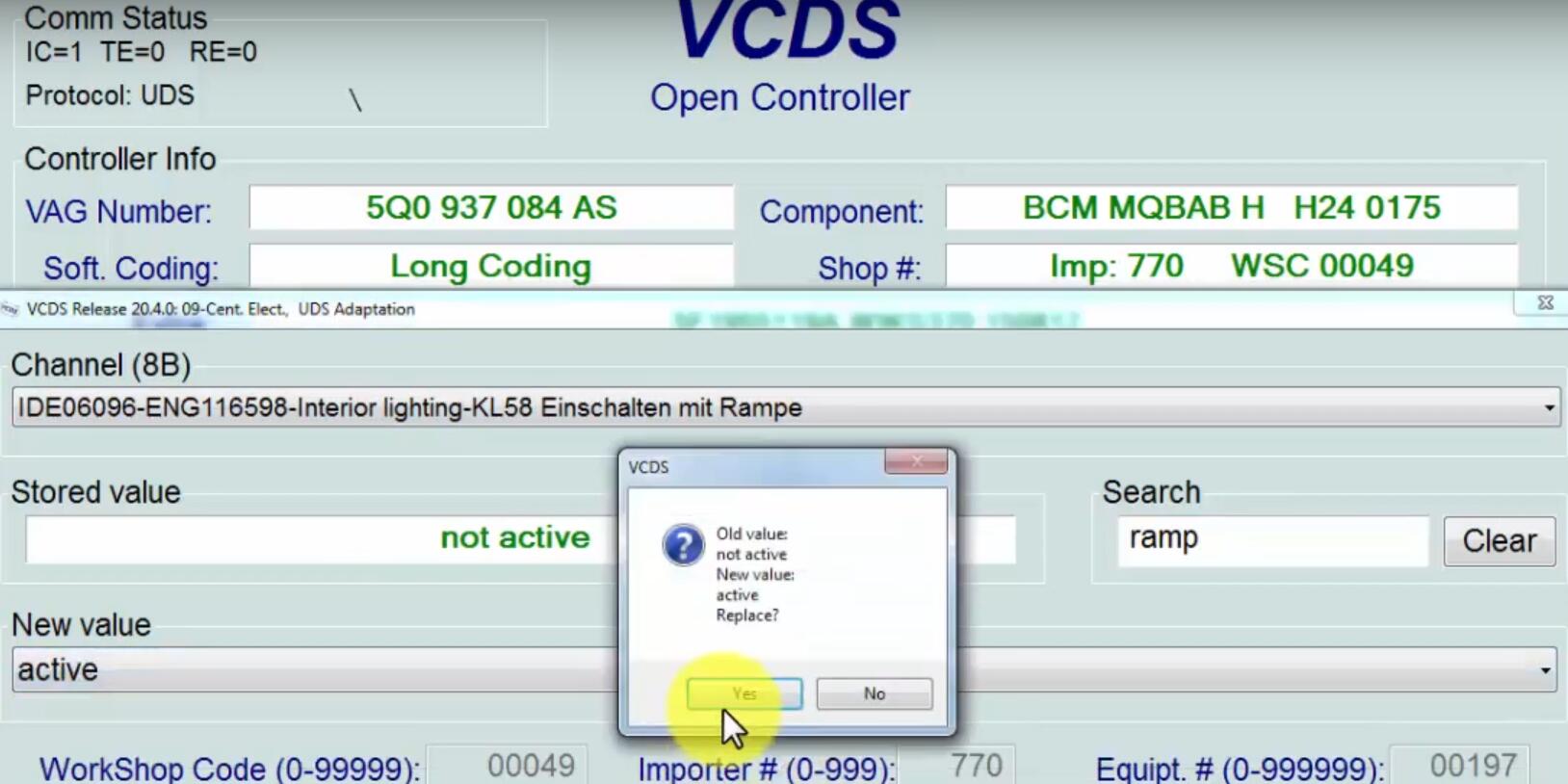

Old value: not active

New value:active replace?

Click “Yes”

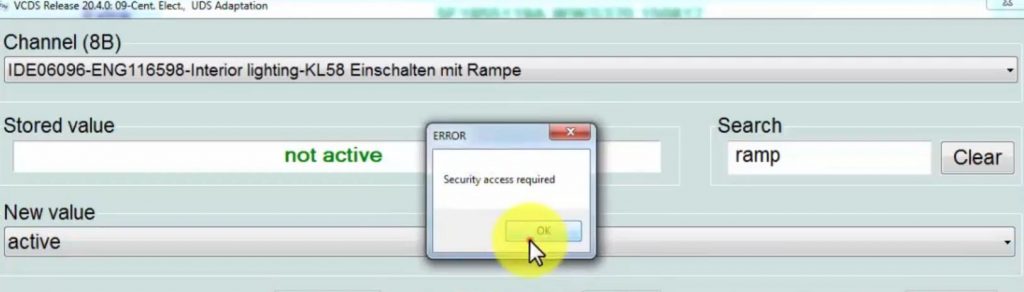

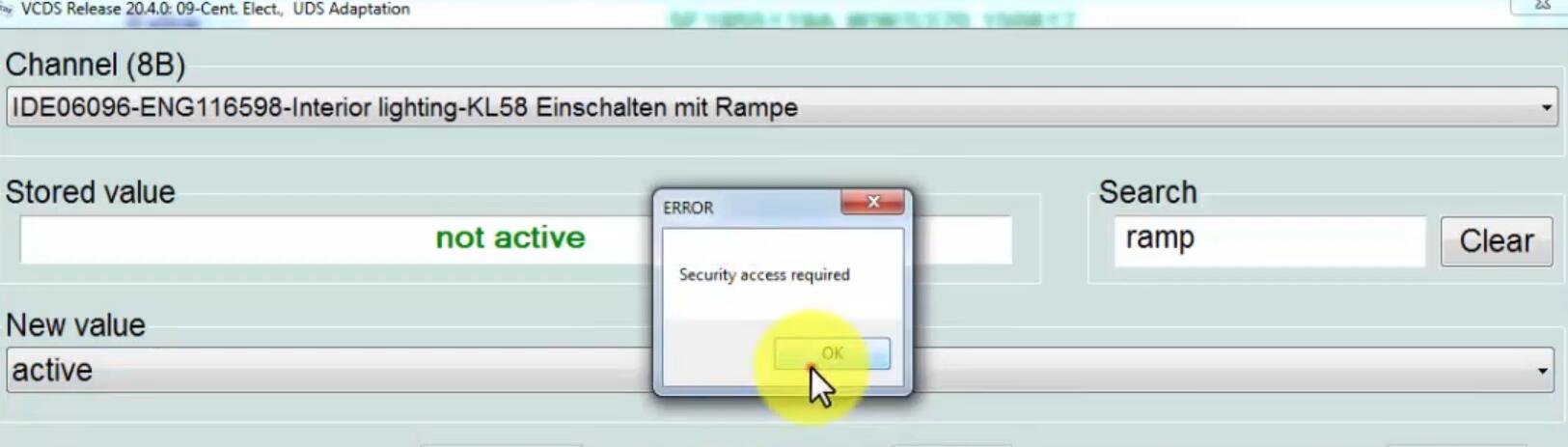

Security access required, click “OK”

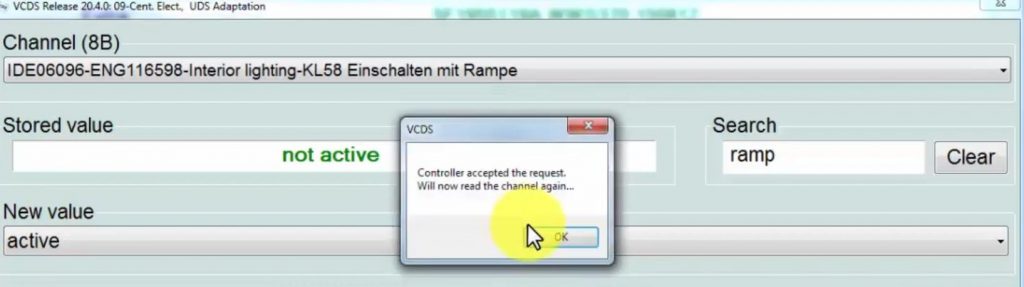

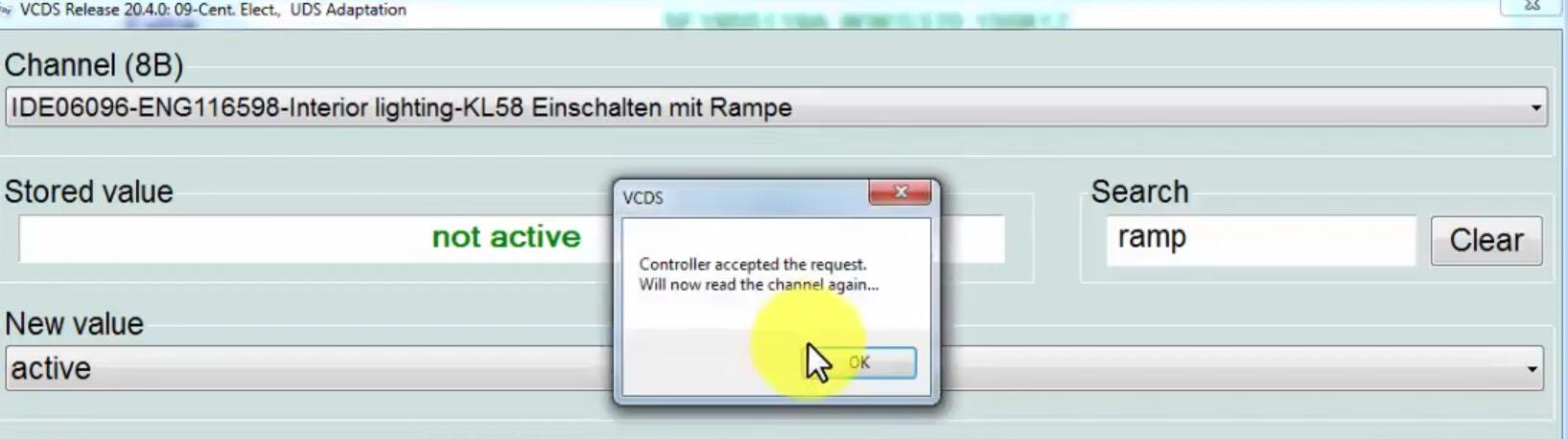

Controller accepted the request. Will now read the channel again…, click “OK”

Function is ready.

This coding function also applies to Volkswagen,Skoda,Audi, if you want to know more about Seat, please visit here: Seat Trouble Repair.
