Technical specification:
1. K-line ISO 9141 (100 mA) multiplexed to 24 different pins of the diagnostic connector
2. ISO14230 compliant
3. Single wire CAN bus multiplexed to different pins of diagnostic connector
4. Dual wire low speed CAN bus multiplexed to different pins of diagnostic connector
5. Dual wire high speed CAN bus multiplexed to different pins of diagnostic connector
6. CAN bus GMLAN, ISO14229, ISO15765, J1939, ISO22901 compliant
7. USB interface to the PC
8. Supply voltage 8..30V DC
9. OBDII cable
10. Updatable firmware
FVDI Software Version:
1.VAG – VW, Audi, Seat, Skoda:V21
2.Mercedes/Smart/Maybach:V64;
3.BMW:V10.3;
4.Porsche:V4.1;
5.OPEL/VAUXHALL: V6.2;
6.Peugeot/Citroen: V6.3;
7.Fiat/Alfa/Lancia:V5.4 ;
8.Renault:V5.4;
9.Toyota/Lexus:V6.0;
10.Hyundai/KIA:V2.1 ;
11.Nissan/Infiniti:V4.3;
12. Ford: V4.9
13. Chrysler: V3.1;
14. VOLVO: V4.3
15. Mitsubishi: V2.1;
16. DAF: V1.0;
17. Bike, Snowmobiles and Water scooters: V1.2
18.TAG Key Tool:V6.2;

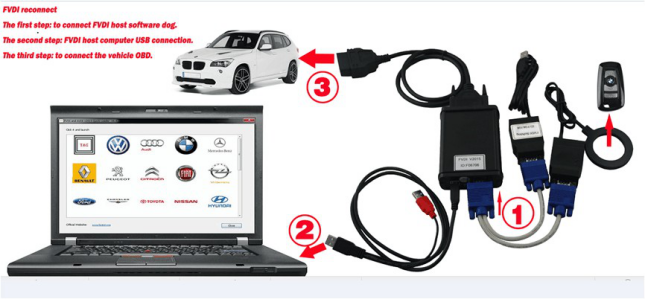

Pls connect it in right
step:
How to do online function?
You can do online functions with the DONGLE.Without dongle, many important special functions are not supported.
What FLY dongle can do
You can do online functions with the Dongle.
Without Dongle, many important special functions are not supported.
These functions are:
1.1 AUDI A6/Q7 key learning
1.2 AUDI A6/Q7 VIN writing
1.3 AUDI A4/A5/A6/A8/Q5/Q7 component protection
1.4 AUDI A8, VW Touareg KESSY adaptation
1.5 VW MED17 EEPROM reading
1.6 B-MW CAS3, encrypted CAS3+ key learning
1.7 B-MW CAS3, encrypted CAS3+ mileage recalibration
1.8M-ercedes-B-enz mileage recalibration
1.9 B-WM CAS4 5M48h key Tool
1.10 Renault Key Learning for new model (2008~)
1.11 B-MW EGS synchronization
How to use the Dongle (Internet connection required)
1. Run “ABRITES Quick Start”
Click quick link icon on desktop and open ABRITES quick loader.
Click vehicle icon, an “Dongle” icon appears in the right-bottom corner of desktop (tray bar).
2.When icon appears, the Dongle software is running.
3. Connect the Dongle to computer
4. Run commander
5. If tip “connect TAG programmer” appears
Since the Dongle and TAG key programmer connect to the same one port of AVDI, you cannot use them at the same time.
When tip “connect TAG programmer” appears, you must plug out the Dongle from port and plug in TAG key programmer. After you finish programming transponder,,plug in FLY dongle as soon as possible.
