DP PAD2 Tianjin FAW N5N7 anti-theft coil initialization (P001)

Obdstar DP PAD2 Tianjin FAW N5N7 anti-theft coil initialization (P001)

1. After all keys are lost, you need to perform anti-theft data initialization, and then perform key matching;

2. The anti-theft data initialization requires the use of P001 programmer, the steps are as follows:

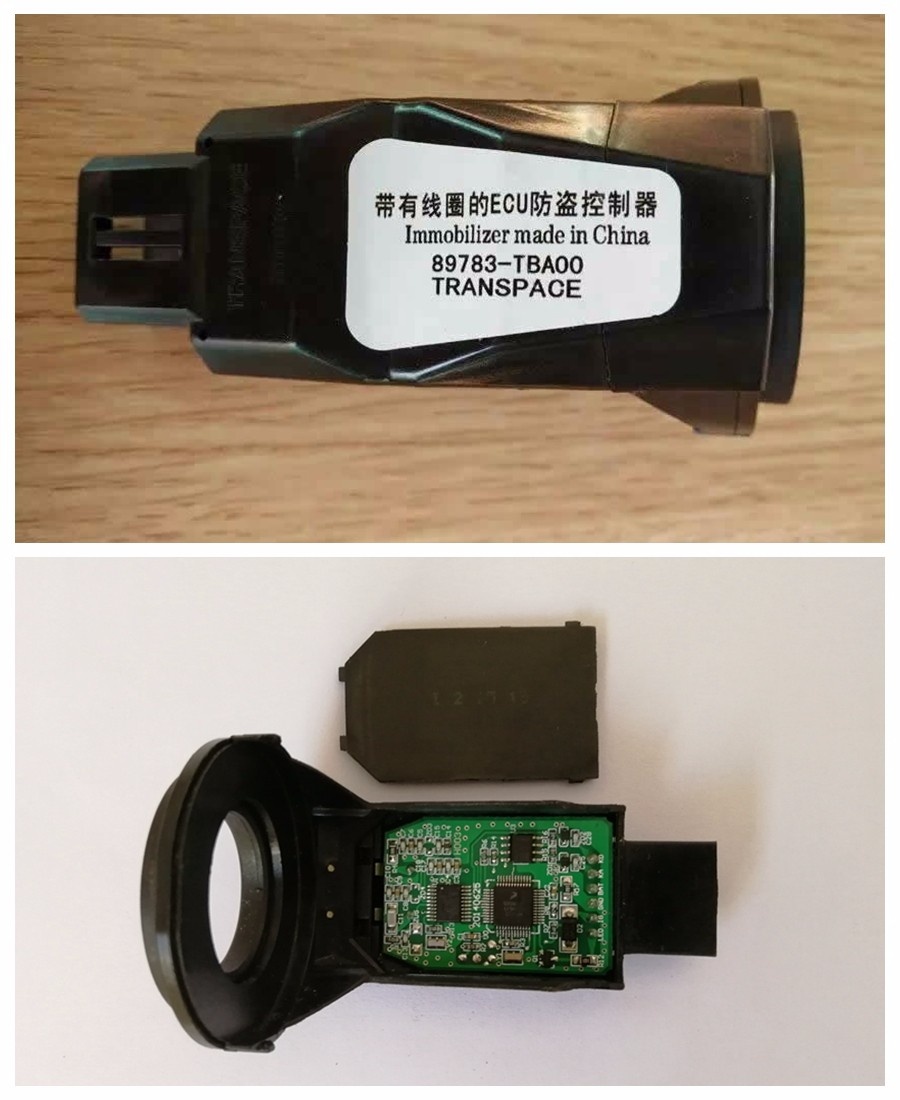

a. Remove the anti-theft box, the model is 89783-TBA00 (currently only supports this model of anti-theft system), as shown in the figure:

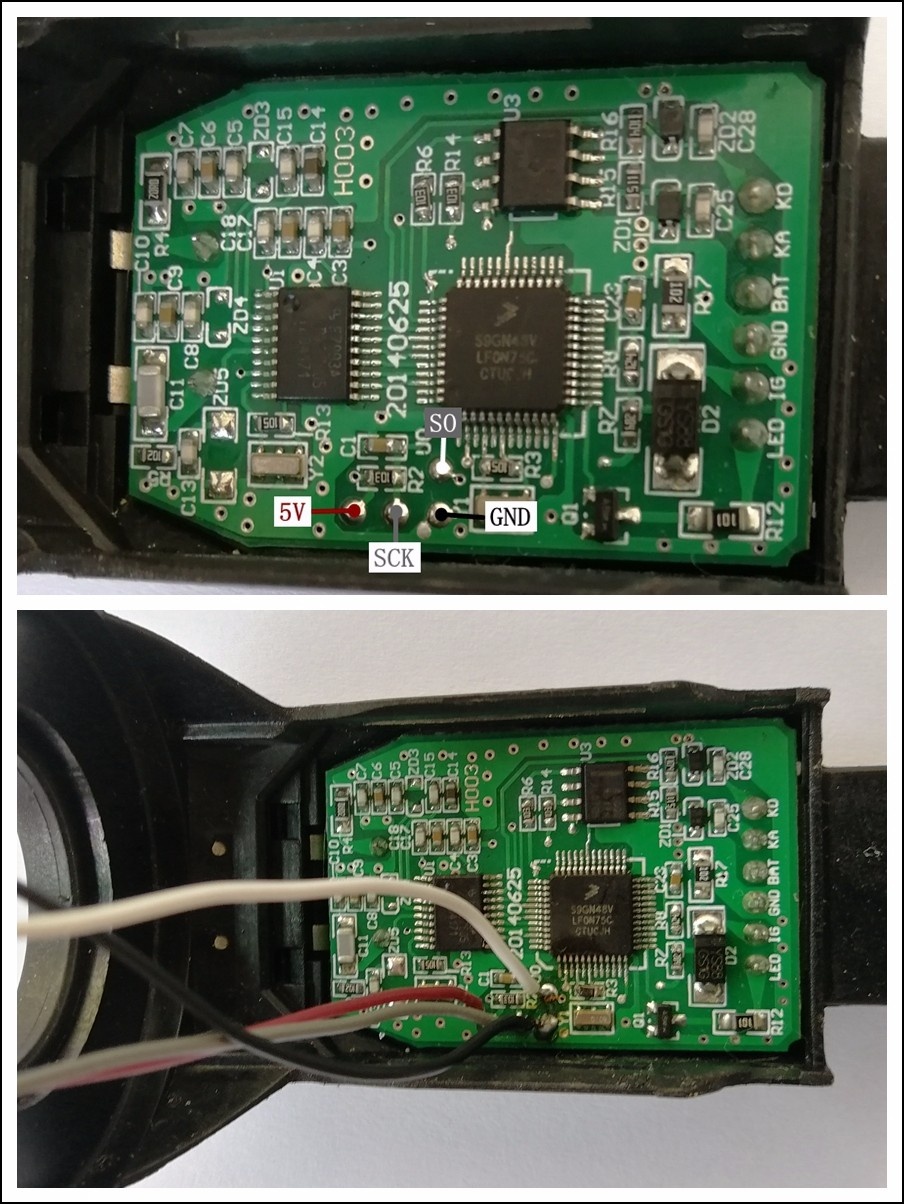

b. Use W001 wire harness to weld as shown in the figure below;


c. Plug the W001 harness into the fourth socket on the right side of the C002 small board, and plug C002 into the adapter, as shown below:

d. Perform data initialization, the entry path is as follows:

Anti-theft remote matching

PICF/REESCALE adapter

PICF/REESCALE

 Tianjin FAW

N5/N7

e. After the initial execution is completed, put the anti-theft box back on the car, and then enter according to the key matching path, and perform “offline matching”.
