Digimaster 3 Program Key to Mercedes-Benz W220

This article is available with the guide to use Yanhua Digimaster 3 to add a new key to Mercedes-Benz S Class W220.

Tool need:

A set of Original Yanhua Digimaster III Odometer Correction Master with various of adapters

digimaster-3-program-mercedes-benz-w220-key-1

Tips& Guide to program Benz key:

Enter Digimaster 3 main menu

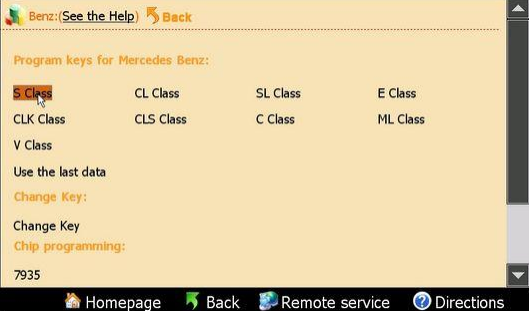

Go to the Benz key programming page

digimaster-3-program-mercedes-benz-w220-key-2

Select “S Class”

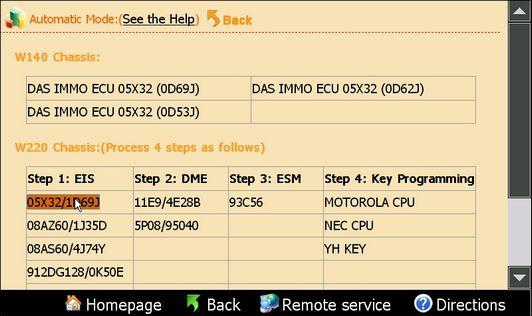

There are main 4 steps to program W220:

Step 1: Program EIS

Step 2: Program DME

Step 3: Program ESM

Step 4: Key programming

digimaster-3-program-mercedes-benz-w220-key-3

In detail…

Step 1: Program EIS

Tips: Need MC705-PROG / (W203/W220)/ 9S12/CAN&BDM adapter

Choose “05X32/1D69J” to enter the following page

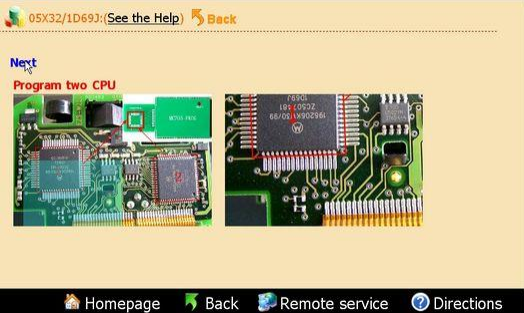

De-solder the two CPU according to the diagram

and solder them to the adapters

Note: To avoid mix up, please mark the two CPU before taking them off

digimaster-3-program-mercedes-benz-w220-key-4

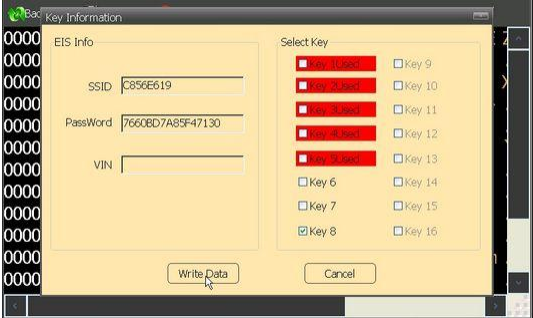

After read the data it will show the SSID information etc.

Choose the key number you want

and then click “Write data” to finish the EIS adjust

digimaster-3-program-mercedes-benz-w220-key-5

Step 2: Program DME

Tips: need OBP/ICP adapter

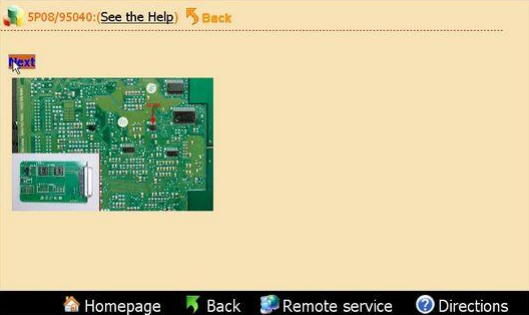

Take 95040 for example

Check the picture and remove the chip to the adapter, click

“Next”

digimaster-3-program-mercedes-benz-w220-key-6

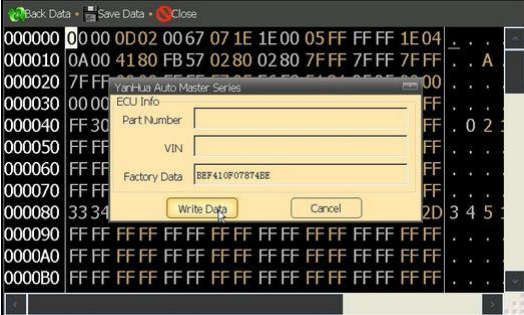

After read the data, it will show the ECU information

Click “Write data” to finish the ECU programming

digimaster-3-program-mercedes-benz-w220-key-7

Step 3: Program ESM

Tips: need OBP adapter

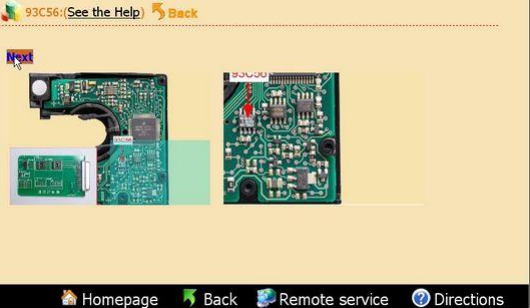

Check the picture and remove the chip to the adapter, click “Next”

digimaster-3-program-mercedes-benz-w220-key-8

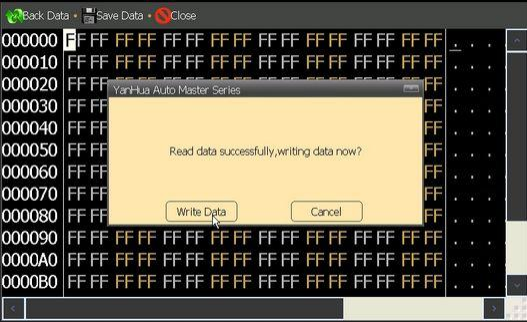

Click “Write data” to finish this step

digimaster-3-program-mercedes-benz-w220-key-9

Step 4: Key programming

Tips: need MC705E6 / NEC KEY /IAR-Key adapter

Please kindly notice: this step is based on the data of step 1, if not implemented “Step 1” , this step can not be operated

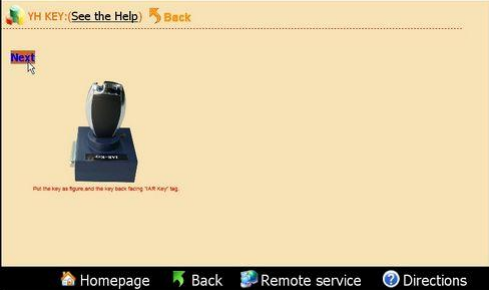

Take YH Key for example

Before program the YH Key please make sure it was registered.

digimaster-3-program-mercedes-benz-w220-key-10

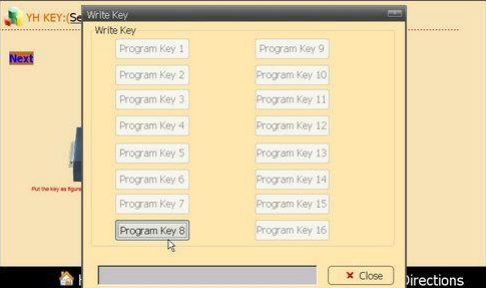

Choose the key No. to begin key programming.

digimaster-3-program-mercedes-benz-w220-key-11

Besides S class W220, Mileage Correction Tool Digimaster 3 also supports many other Benz models.

Check the related key programming Benz list below follow your need.

   Car Model Method Adapter Storage Location
Benz S Class W140 Chassis IMMO ECU:

Memory Directly

IMMO ECU:

MC705-PROG

Key Programming:

NXP-Key

IMMO+

Key Chip

Benz S Class W220 Chassis EIS:

Memory

Directly/

Soldering

Contacts

DME:

Memory

Directly/

Soldering

Contacts

ESM:

EIS:

MC705-PROG /

(W203/W220)/

9S12/CAN&BDM

DME: OBP/ICP

ESM: OBP

Key Programming:

MC705E6 /

NEC KEY /IAR-Key

EIS+DME+

ESM+

Key Chip

Benz CL Class W215 Chassis EIS:

Memory

Directly/

Soldering

Contacts

DME:

Memory

Directly/

Soldering

Contacts

ESM:

EIS:

(W203/W220)/

9S12 /CAN&BDM

DME: OBP/ICP

ESM: OBP

Key Programming:

MC705E6 /

NEC KEY/IAR-Key

EIS+DME+

ESM+

Key Chip

Benz SL Class R230 Chassis EIS:

Memory

Directly/

Soldering

Contacts

DME:

Memory

Directly/

Soldering

Contacts

ESM:

EIS:

(W203/W220)/

9S12 /CAN&BDM

DME: OBP/ICP

ESM: OBP

Key Programming:

MC705E6 /

NEC KEY/IAR-Key

EIS+DME+

ESM+

Key Chip

Benz E Class W210 Chassis EIS:

Memory Directly

ESL:

Memory

Directly/

Soldering

Contacts

Key

EIS: MC705-PROG

ESL: MC705E6/ESL

Key Programming:

MC705E6 /

NEC KEY/IAR-Key

EIS+ESL+

Key Chip

Benz E Class W211 Chassis EIS:

Memory

Directly/

Soldering

Contacts

DME:

Memory Directly

ESL: Memory

Directly

EIS:

9S12/CAN&BDM

DME: OBP/29F

ESL: MC705E6/ESL

Key Programming:

MC705E6 /

NEC KEY/IAR-Key

EIS+DME+

ESL+

Key Chip

Benz CLK Class W208 Chassis Key

EIS:

9S12/CAN&BDM

DME: OBP/29F

ESL: MC705E6/ESL

Key Programming:

MC705E6 /

NEC KEY/IAR-Key

EIS+DME+

ESL+

Key Chip

Benz CLK Class

EIS:

Memory Directly

DME:

Soldering

Contacts

ESL:

Memory

Directly/

Soldering

Contacts

EIS: MC705-PROG

DME: ICP

ESL: MC705E6/ESL

Key Programming:

MC706E6 /

NEC KEY/IAR-Key

EIS+DME+

ESL+

Key Chip

Benz CLK Class W209 Chassis EIS: Memory Directly/ Soldering Contacts DME: Memory Directly ESL: Memory Directly/ Soldering EIS:

9S12/CAN&BDM

DME: OBP

ESL: MC705E6/ESL

Key Programming:

MC705E6 /

NEC KEY/IAR-Key

EIS+DME+

ESL+

Key Chip

Benz CLS Class W219 Chassis Contacts

EIS:

9S12/CAN&BDM

DME: OBP

ESL: MC705E6/ESL

Key Programming:

MC705E6 /

NEC KEY/IAR-Key

EIS+DME+

ESL+

Key Chip

Benz CLS Class

EIS:

Memory

Directly/

Soldering

Contacts

DME:

Memory Directly

ESL:

Memory

Directly/

Soldering

EIS:

9S12/CAN&BDM

DME: OBP

ESL: MC705E6/ESL

Key Programming:

MC705E6 /

NEC KEY/IAR-Key

EIS+DME+

ESL+

Key Chip

Benz C Class W202 Chassis EIS:

Memory Directly

DME:

Soldering

Contacts

ESL:

Memory

Directly/

Soldering

Contacts

EIS: MC705-PROG

DME: ICP

ESL: MC705E6/ESL

Key Programming:

MC706E6 /

NEC KEY/IAR-Key

EIS+DME+

ESL+

Key Chip

C Class W203 Chassis Key

EIS: MC705-PROG

DME: ICP

ESL: MC705E6/ESL

Key Programming:

MC706E6 /

NEC KEY/IAR-Key

EIS+DME+

ESL+

Key Chip

Benz C Class

EIS:

Memory Directly

DME:

Memory Directly

ESL:

Memory

Directly/

Soldering

Contacts

Key

EIS: (W203/W220) DME: OBP/29F ESL: MC705E6/ESL Key Programming: MC705E6 / NEC KEY/IAR-Key EIS+DME+

ESL+

Key Chip

Benz ML Class W163 Chassis AAM ECU:

Memory Directly

Key

Programming:

IR

AAM ECU:

MC705-PROG

Key Programming:

IAR-Key

AAM ECU+

Key Chip

Benz V Class W639 Chassis EIS:

Soldering

Contacts

DME:

Memory Directly

ESL:

Memory

Directly/

Soldering

Contacts

EIS: ICP

DME: OBP

ESL: MC705E6/ESL

Key Programming:

MC705E6/

NEC KEY/IAR-Key

EIS+DME+

ESL+

Key Chip

Benz A Class W169 OBD IAR KEYII or NEC

KEY II+CAN OBD

DM1

Benz B Class W246 OBD IAR KEYII or NEC

KEY II+CAN OBD

DM1

Benz C Class W204 OBD IAR KEYII or NEC

KEY II+CAN OBD

DM1

Benz CL Class W216 OBD IAR KEYII or NEC KEY II+CAN OBD DM1
Benz CLS Class W218 OBD IAR KEYII or NEC KEY II+CAN OBD DM1
Benz CLK Class W209/W207 OBD IAR KEYII or NEC KEY II+CAN OBD DM1
Benz E Class W211/W212 OBD IAR KEYII or NEC KEY II+CAN OBD DM1
Benz ML Class W164/W164

2009-

W166

OBD IAR KEYII or NEC KEY II+CAN OBD DM1
Benz S Class W221 OBD IAR KEYII or NEC KEY II+CAN OBD DM1
Benz SLS Class W197 OBD IAR KEYII or NEC KEY II+CAN OBD DM1
Benz SLK Class W172 OBD IAR KEYII or NEC KEY II+CAN OBD DM1
Benz Sprinter W906 OBD IAR KEYII or NEC KEY II+CAN OBD DM1
Benz Vito W639 2009- OBD IAR KEYII or NEC KEY II+CAN OBD DM1
