This instruction show you guide on how to use INSITE diagnostic software to reset DPF data for Cummins CM2350 ECM.This operation need to be performed after DPF filter replacement.
Procedures:
Connect INLINE diagnostic adapter to ECM,then run INSITE software.

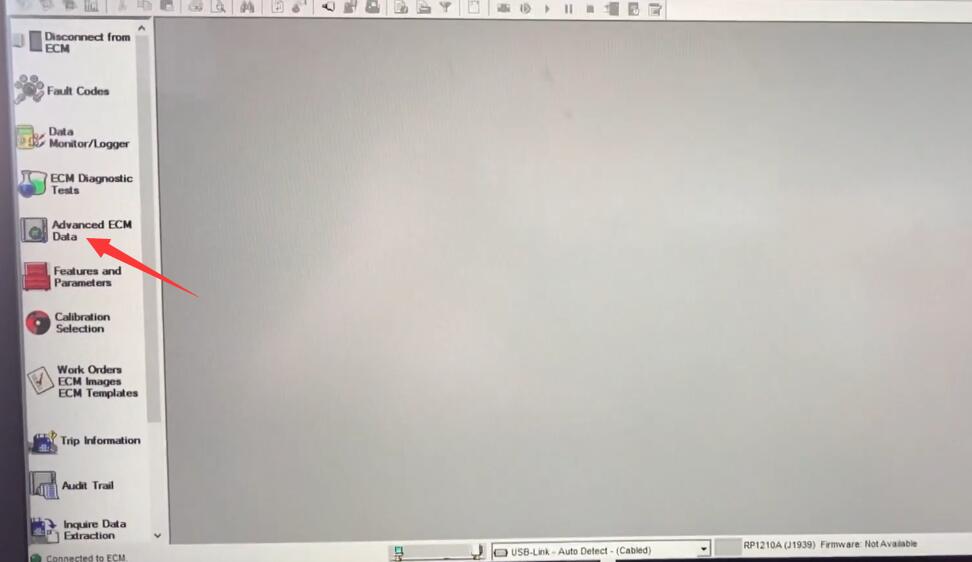

Build connection,then click “Advanced ECM Data”

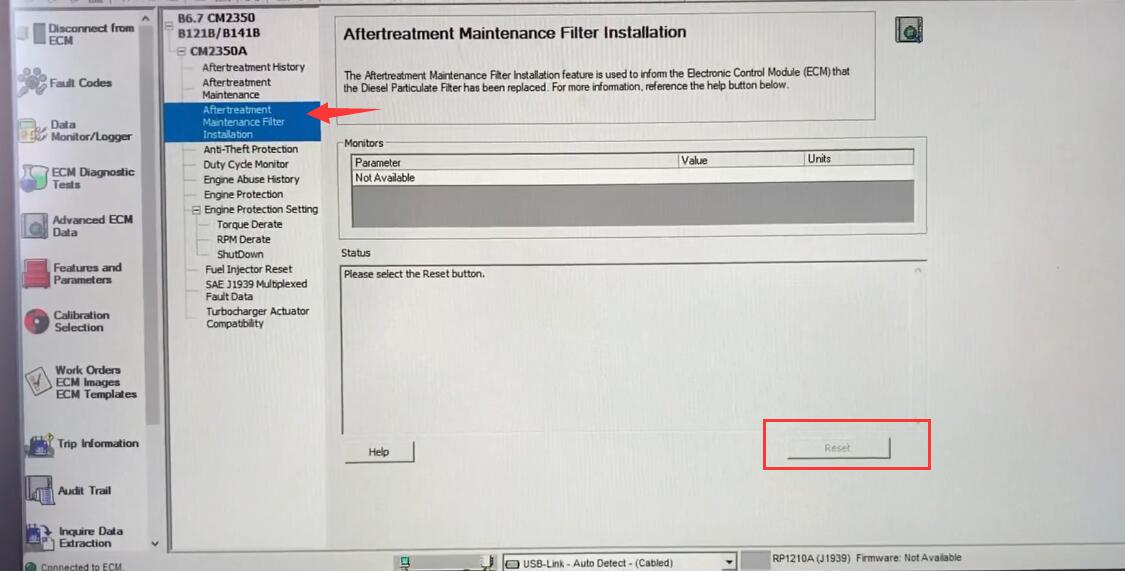

Click “Aftertreatment Maintenace Filter Installation”
you will find “Reset” button is gray

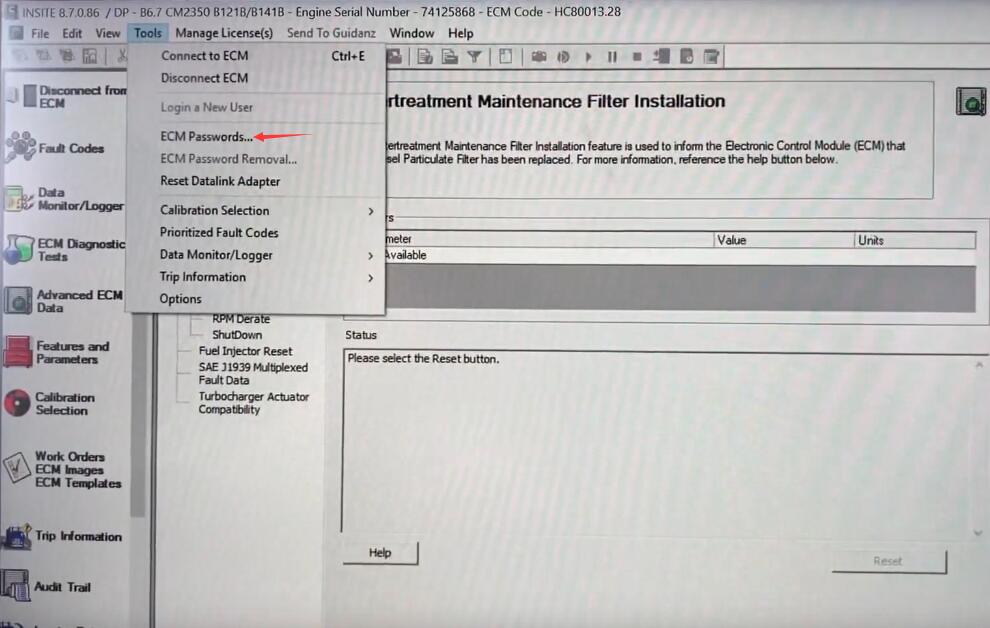

Click “Tool” option on menu,select “ECM Passwords…”
Enter password,then click “Unlock”
After unlocking,back to “Aftertreatment Maintenance Filter Installation”

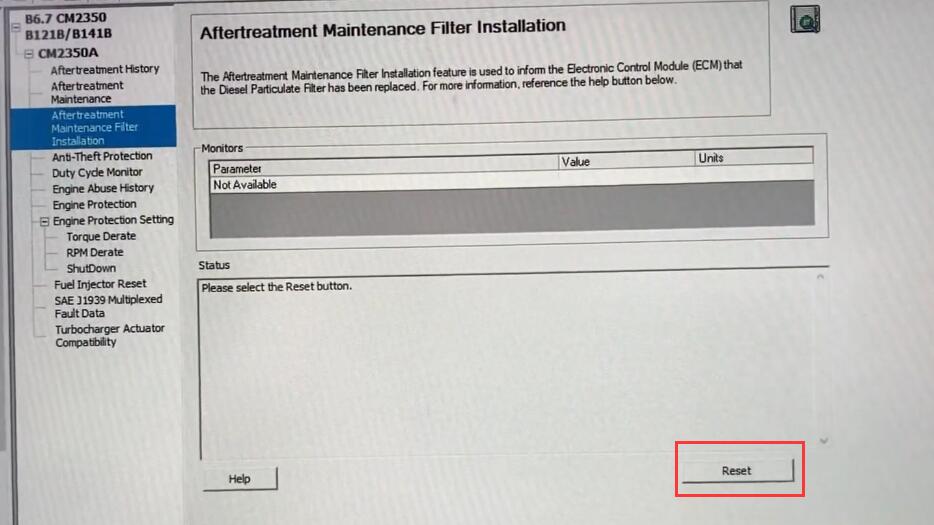

Now click “Reset”
