Autel XP400 Pro is the upgrade version of XP400 key programmer. It adds more functions for BMW, Mercedes-Benz, as well as EEPROM reading. Works perfectly with Autel IM508 IM608, im608 pro etc. and makes these Autel key programmers support more advanced key programming vehicle coverage, powerful IMMO/programming function.
Autel XP400 Pro VS XP400:
| Product Name | XP400 | XP400 PRO |
| IMG | |
 |
| Price | €438.00 | €522.00 |
| EEPROM read/ write | 330 chip types | 445 different chip types newly added support (AM29FXXX seriesMB29FXXX series） |
| MCU read/ write | 1541 chip types | 2067 chip types |
| Engine ECU read/ write | 40 chip types | 41 chip types add write support for SIMTEC76(AM29F800BB)_WRITE |
| Immobilizer ECU read/ write | 168 chip types | 181 chip types |
| Odometer read/ write | read odometer module 9 types | read odometer module 171 types (update in July) |
| Airbag read/ write | read airbag module 5 types | read airbag module 5 types |
| Frequency detection | 315/ 433/ 868MHz | 315/ 433/ 868MHz |
| Key read/ write | support | support |
| Unlock key | N/A | support 11 key types (Audi/ BMW) |
| Write key via dump | Mitsubishi, Suzuki, Fiat, Land Rover, Jaguar | Mitsubishi, Suzuki, Fiat, Land Rover, Jaguar |
| Easy to use/ stability | 1. menus are too value and can’t select intuitively | 1.Stability of key read/ write, chip read/ write, IR key read/ write are greatly enhanced. |
| 2. with high-definition
wiring diagrams (not sufficiently covered) |
2.menus are too vague and can’t select intuitively | |
| 3.with high-definition wiring diagrams (not sufficiently covered) |
Autel XP400 Pro advantages:
1.Expanded EEPROM functions for more component access
2.170+ types Odometer component reading functions
3.180+ Immobilizer ECU component types
4.40+ Engine ECU component types
5.2000+ MCU component types
6.440+ EEPROM component types
7.Support unlock key: 11 key types (Audi/ BMW)
8.Stability of key read/ write, chip read/ write, IR key read/ write are greatly enhanced
XP400Pro Adds Support for Following Chips:
EEPROM–>>AMD–>>AM29FXXX series chip
EEPROM–>> FUJITSU–>> MB29FXXX series chip
EEPROM–>> ST–>> M29FXXX series chip
Engine control module–>> ST–>> M29FXXX series chip
IMMO–>> BENZ–>> ESL_W209_W906(Motorola) read/write/erase function
IMMO–>> BMW–>>EWS3 module read/write function
REMOTE_RENEW (renew key)–>> NEC–>> V51 and V5 chip read/write/erase

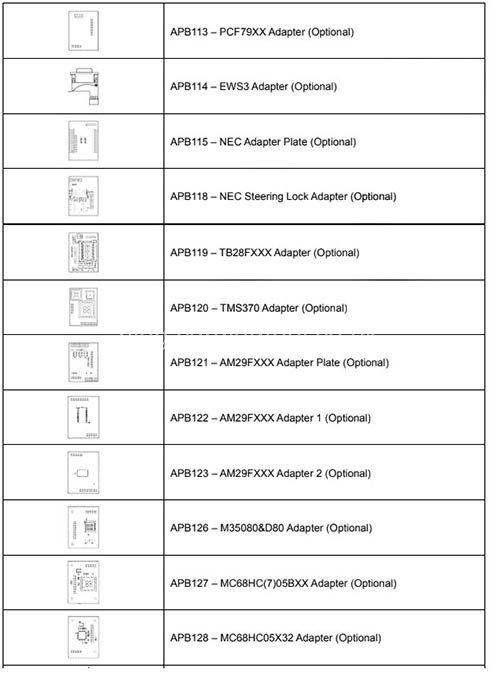

XP400 Pro Adds Support for Following Adaptor Board (Need to Buy IMKPA Accessories Separately):
APB113 PCF79XX adaptor board
APB114 EWS3 adaptor board
APB115 NEC adapter board
APB118 NEC ELV adaptor board
APB119 TB28FXXX adaptor board
APB120 TMS370 adaptor board
APB121 AM29FXXX adapter board
APB122 AM29FXXX adaptor board1
APB123 AM29FXXX adaptor board2
APB126 M35080/D80 adaptor board
APB127 MC68HC0 (7)05BXX adaptor board
APB128 MC68HC05X32 adaptor board

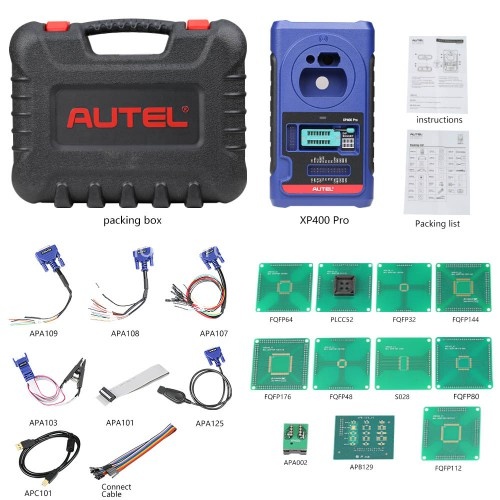

Package comparison:

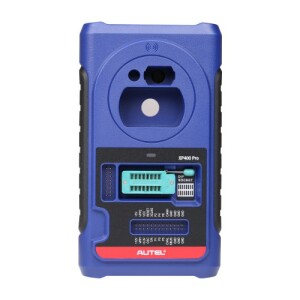

1.Autel XP400 Pro key and chip programmer
Src: https://www.cardiagtool.co.uk/autel-xp400-pro.html

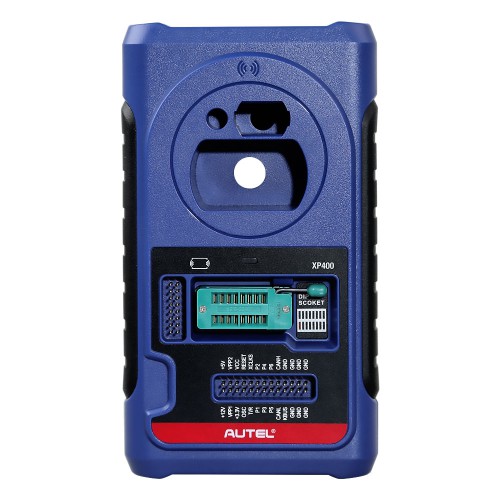

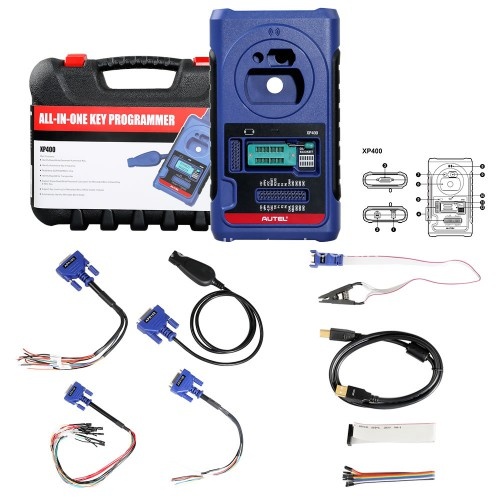

2.Autel XP400 key and chip programmer
Src: https://www.cardiagtool.co.uk/autel-xp400-adapter.html
Autel XP400 Pro Vehicle Coverage:
ADVANCED KEY PROGRAMMING VEHICLE COVERAGE when combined with XP400PRO.
Benz
* One-tap Key Programming via OBD
* 3rd Generation IMMO CAN-Line/ K-Line Add Key, All Key Lost
BMW
* Smart IMMO Programming (support EWS3/ 4, CAS 1/ 2/ 3/ 4, FEM/ BDC)
* Add Key/All Key Lost
Volkswagen/ Audi
* One-tap Online Programming
* Add Key/All Key Lost Via OBD for 2013 – 2020 Models
GM
* Read IMMO Password, Add Key/ All Key Lost up to 2020
Ford
* Add Key/All Key Lost (No PIN Needed) up to 2020
Mazda
* Add Key/All Key Lost (No PIN Needed) up to 2020 FCA
* Read IMMO Password, Add Key/All Key Lost up to 2020
Renault
* Add Key/All Key Lost (No PIN Needed) up to 2020
LandRover/Jaguar
*Add Key/All Key Lost up to 2019
Volvo
* Semi-smart Key Learning via OBD up to 2018
* Smart/Blade/Fobik Key Learning via Dump
With XP400 Pro, MaxiIM IM508 adds the following programming/IMMO function as same as Autel IM608 Pro.
1.Programming:
– Mercedes infrared key read/write
-Remote frequency detection
2.IMMO:
-Benz 3rd generation IMMO add key, all keys lost via OBD
-Read/write/erase Benz ESL W209/W906 data (also need extra adapters)
-Benz OE NEC key learning (also need extra adapters)
-BMW EWS3 key learning (also need extra adapters)
-2015-2019 Jaguar and Land Rover write key via Dump
-Volvo smart key/ Fobik smart key learning
-Volkswagen/Audi/BMW/Benz key unlock (also need extra adapters)
With XP400 Pro and other adapters, Autel MaxiIM IM608 adds the following IMMO function as same as IM608 Pro.
-Read/write/erase Benz ESL W209/W906 data
-Benz OE NEC key learning
-BMW EWS3 key learning
-Volkswagen/Audi/BMW/Benz key unlock
Both XP400 and XP400 Pro are good assistants for Autel IM508/IM608/IM608 Pro.
Just choose the one depends on what function what car model you want to do.
