Can Yanhua Mini ACDP Clone 2012 BMW X5 DME

Case: Use Mini ACDP BMW to clone 2012 BMW X5 DME by transferring the whole file to another DME

Car: 2012 BMW X5

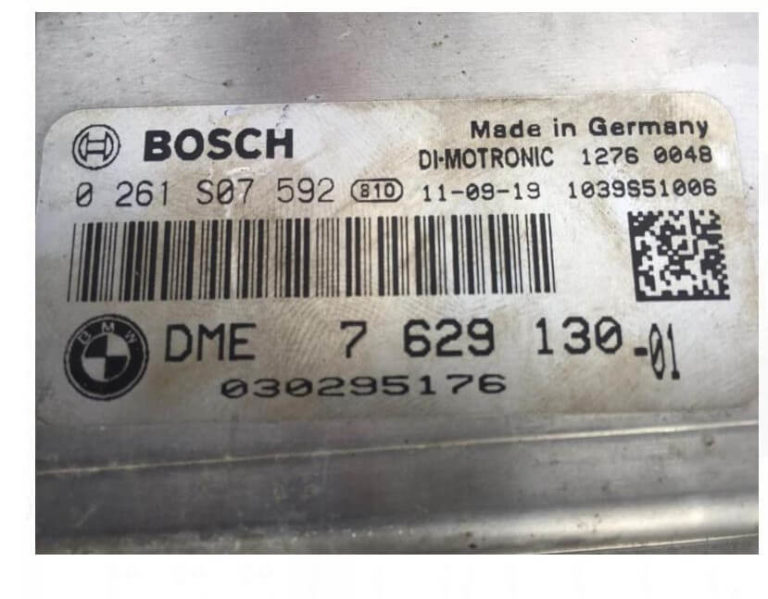

DME model: BOSCH 7 629 130 01
Device: Yanhua Mini ACDP BMW full package
Yanhua N55 Bench Integrated Interface Board +software license


Procedure:

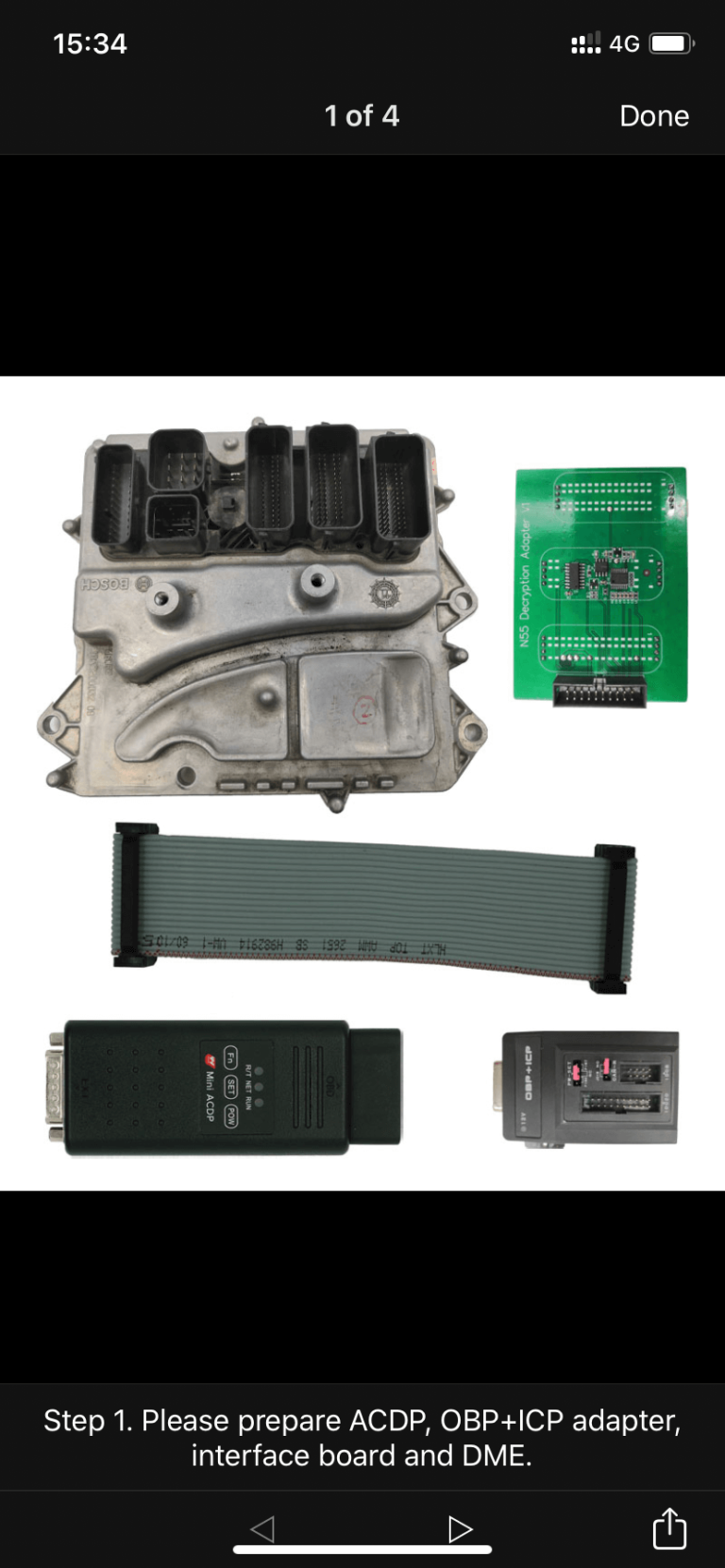

Step 1: Prepare ACDP, OBP+ ICP adapter, interface board and DME

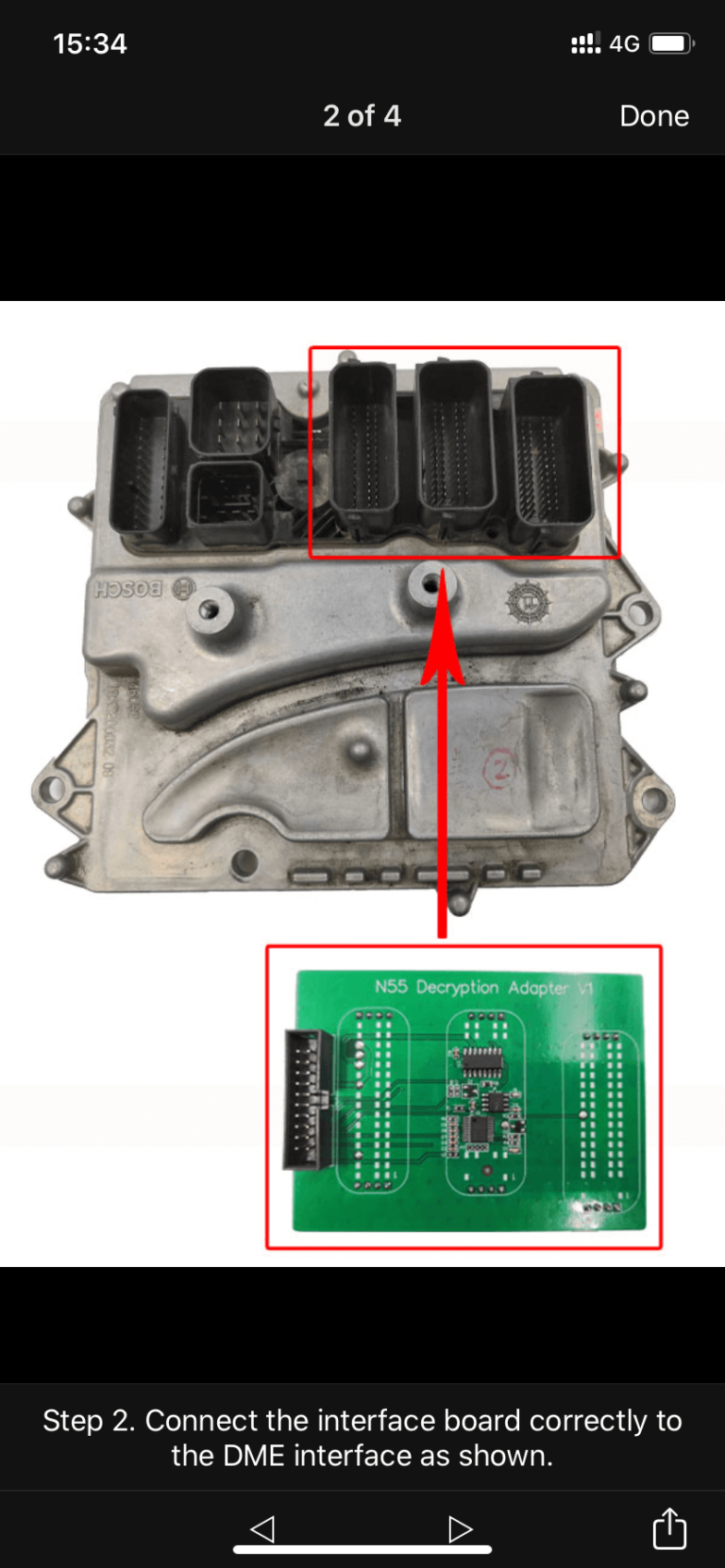

Step 2: Connect the interface board correctly to the DME interface

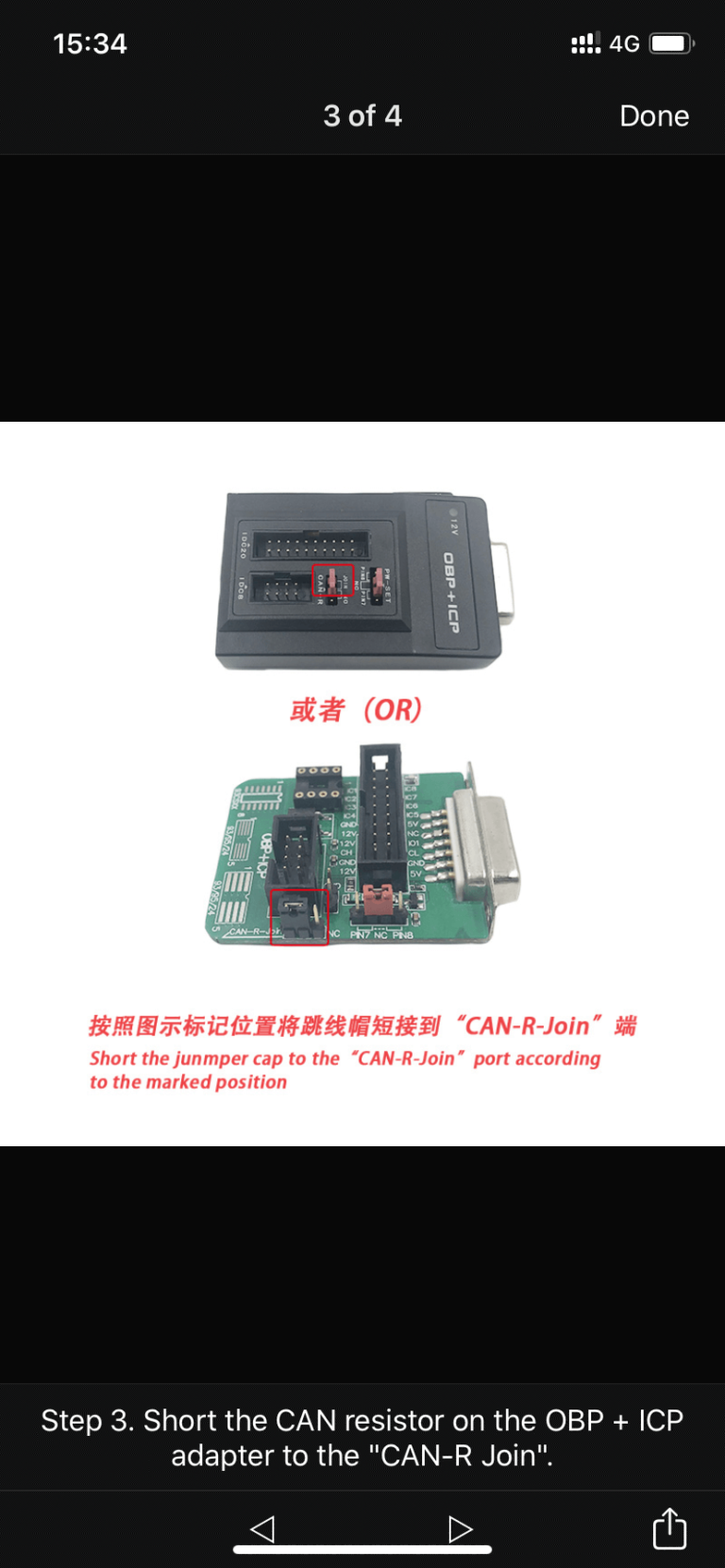

Step 3: Short the CAN resistor on the OBP+ICP adapter to the “CAN-R Join”

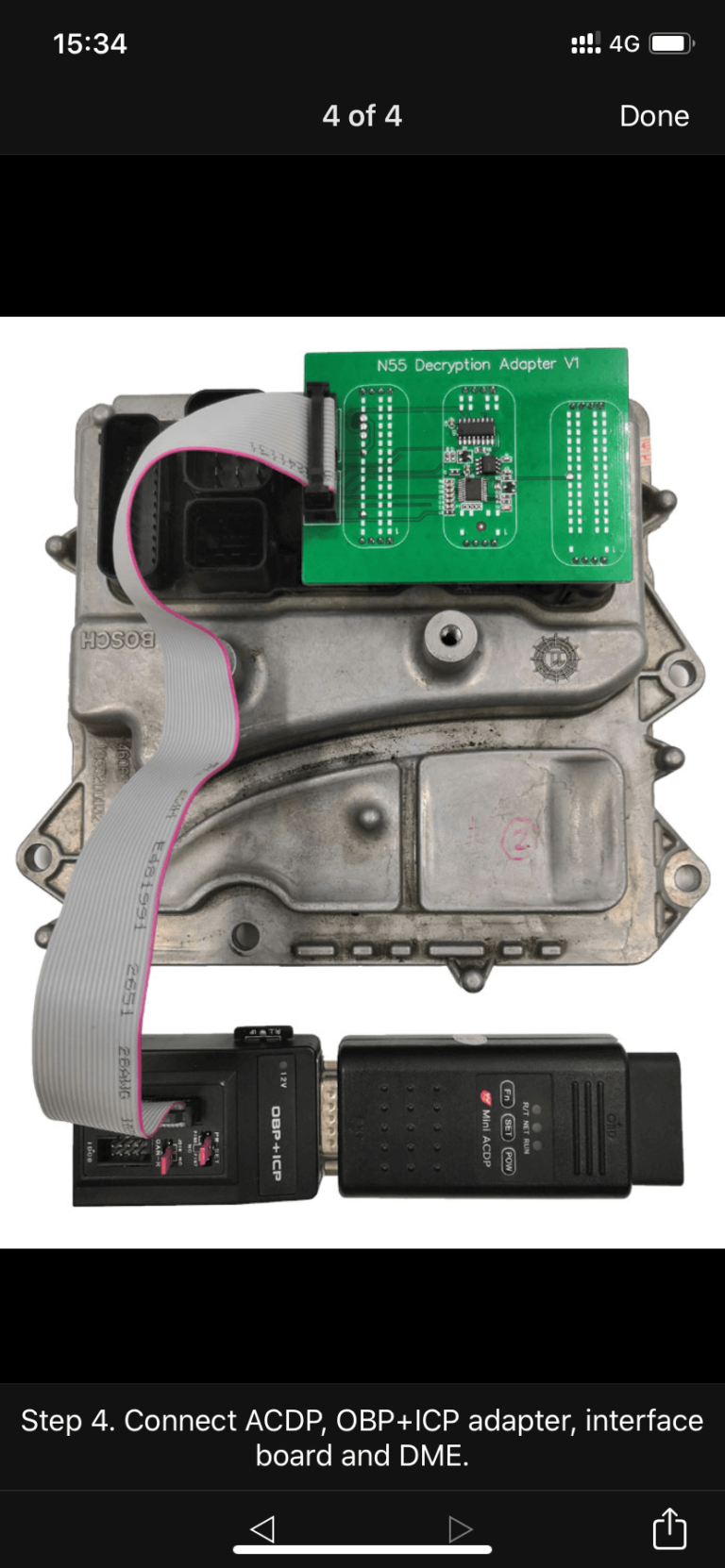

Step 4: Connect ACDP, OBP+ ICP adapter, interface board and DME

Step 5: Enter Mini ACDP APP

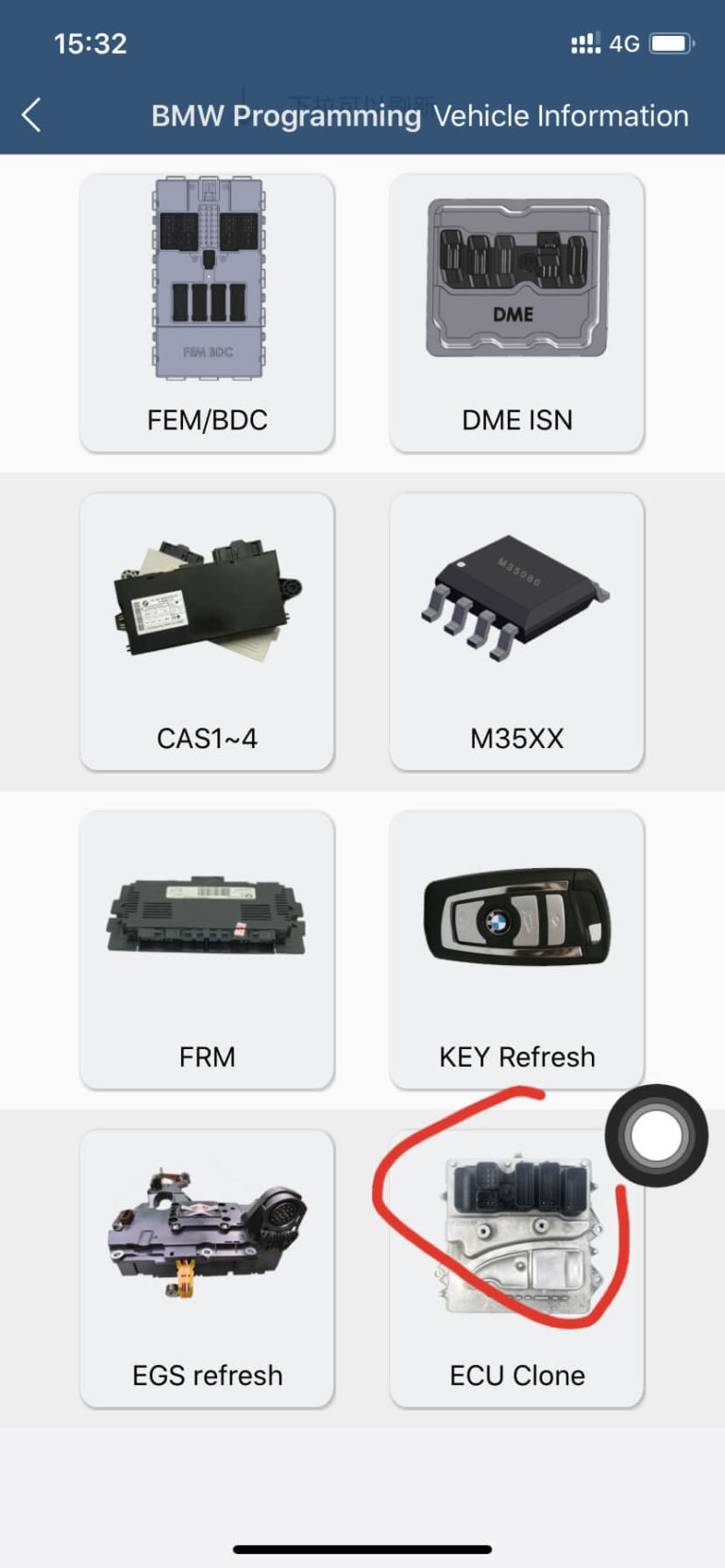

Select BMW-> ECU Clone

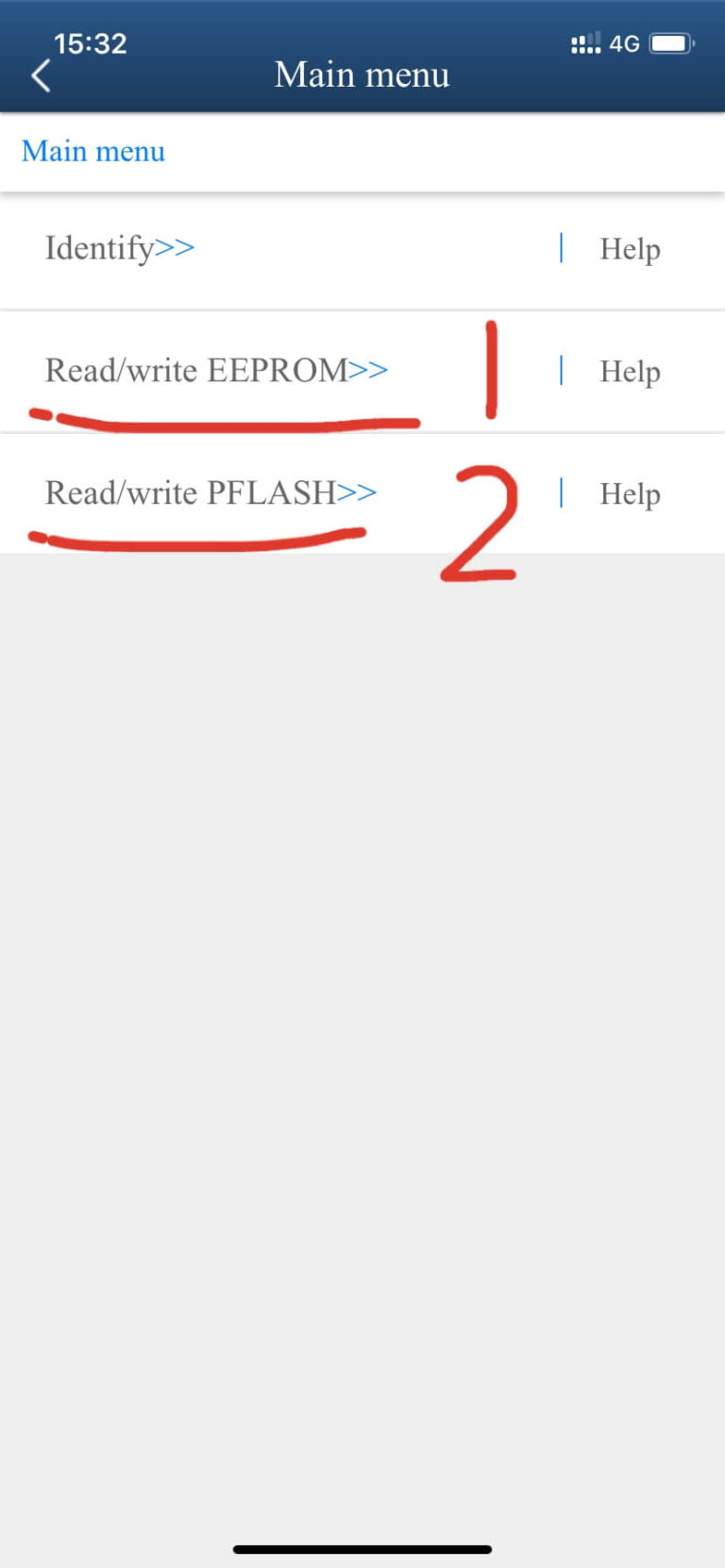

1. Read /write EEPROM
2. Read/Write PFLASH

1. Read /write EEPROM

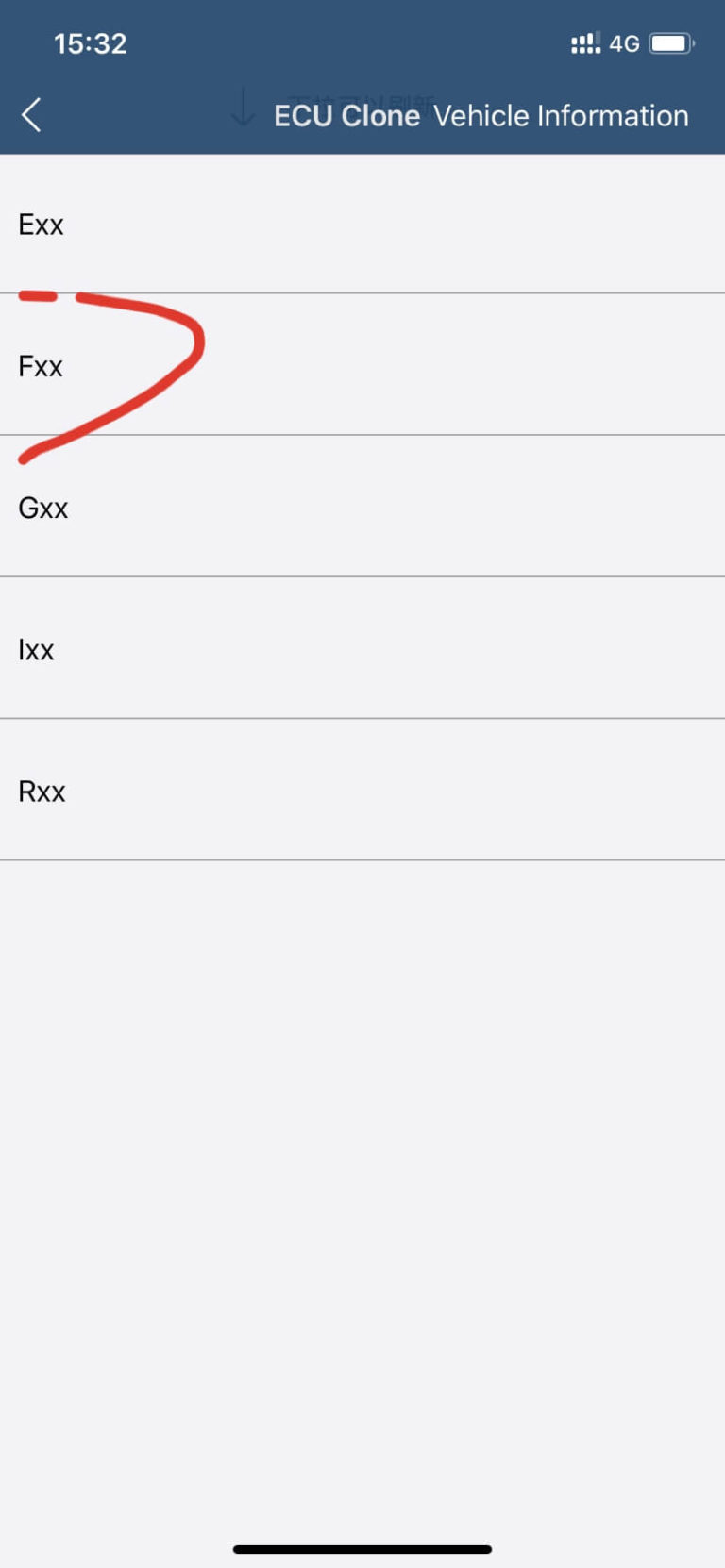

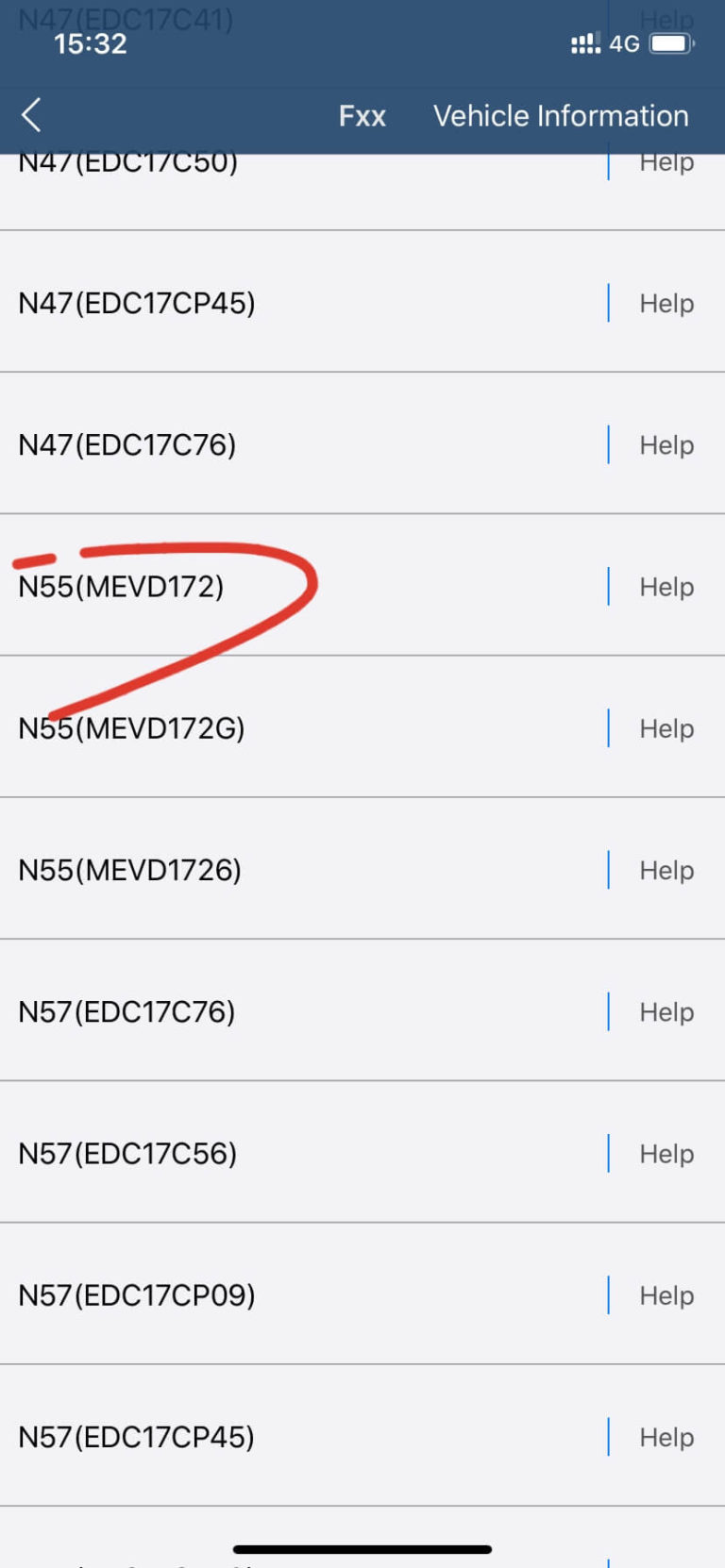

Tap N55 (MEVD172)->Fxx


Then follow the instruction on the screen to operate
That’s all!
