Autel MaxiSys Mini MS905 Automotive Diagnostic and Analysis System with LED Touch Display

The MaxiSys Mini MS905 is the ideal solution to manage your repair jobs in one mobile and smarter wireless tool. MaxiSys Mini MS905 has been developed for customers looking for a tool with ultra mobility and modern design while still delivering ultimate performance.

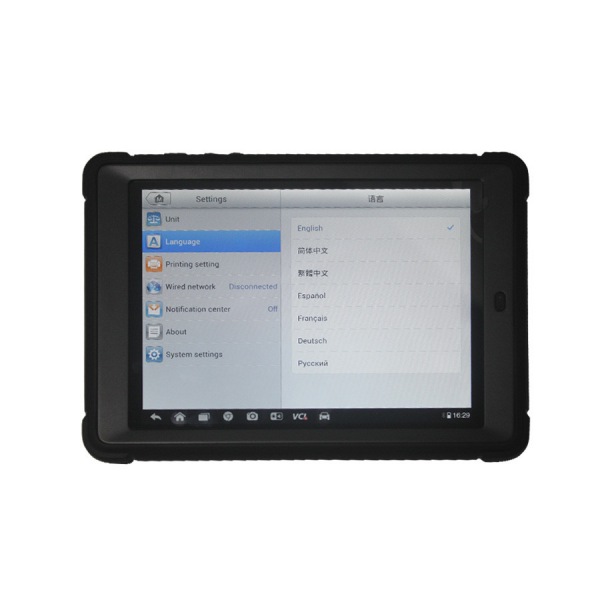

11

Top 3 Reasons to Get MS905:
1. Language: English,German,French,Spanish,Japanese,Portuguese
2. With 7.9” 1024×768 LED resolution capacitive touch screen
3. With 2GB RAM & 32GB On-board Memory

Features and Function:
Extraordinarily powerful Cortex-A9 quad-core processor
7.9” 1,024×768 LED-backlit glossy Multi Touch capacitive display with IPS technology
Internal reliable and fast 32GB Solid State Drive for better performance
Built-in 5-megapixel rear camera with autofocus and flashlight
Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources
Unique shop tough ergonomic design features strong rubber protection and housing;
Built-in rechargeable lithium-ion battery for up to 5 hours of continuous operation
USB, audio and auxiliary ports make it easy to connect accessories
The VCI connects wirelessly to the main unit with Long-Range Class 1 Bluetooth

Autel MaxiSys Mini MS905 Specification:
Operating System: AndroidTM 4.0, Ice Cream Sandwich
Processor: Samsung Exynos Quad-Core Processor 1.4GHz
Memory: 2GB RAM & 32GB On-board Memory
Display: 7.9” LED capacitive touch screen with 1024x768P resolution
Connectivity: Ethernet: RJ45 Ethernet Connection Cellular: 3G/4G module: WCDMA
Camera (rear): Rear-facing, 5.0 Mexgapixel, AF with Flashlight
Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: Microphone, Dual Speakers, 4-Band 3.5 mm stereotype/standard headset jack
Power and Battery: 5000 mAh 3.7 V lithium-polymer battery, Charging via 12 V vehicle power
Input Voltage: 12 V (9-24 V)
Power Consumption: 3.9 W
Operating Temperature: -10 to 55 ℃ (14 to 131 ℉)
Storage Temperature: -20 to 70 ℃ (-4 to 158 ℉)
Housing: Strong plastic housing with protective rubber boot

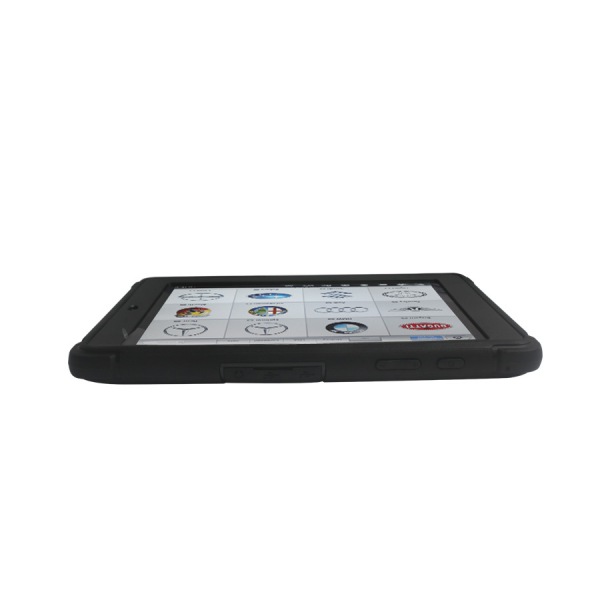

22



Autel MaxiSys Mini MS905 Automotive Diagnostic and Analysis System with LED Touch Display
