Autel Key Programmer support Mercedes Benz All key lost and add key programming and IMMO part replacement list.

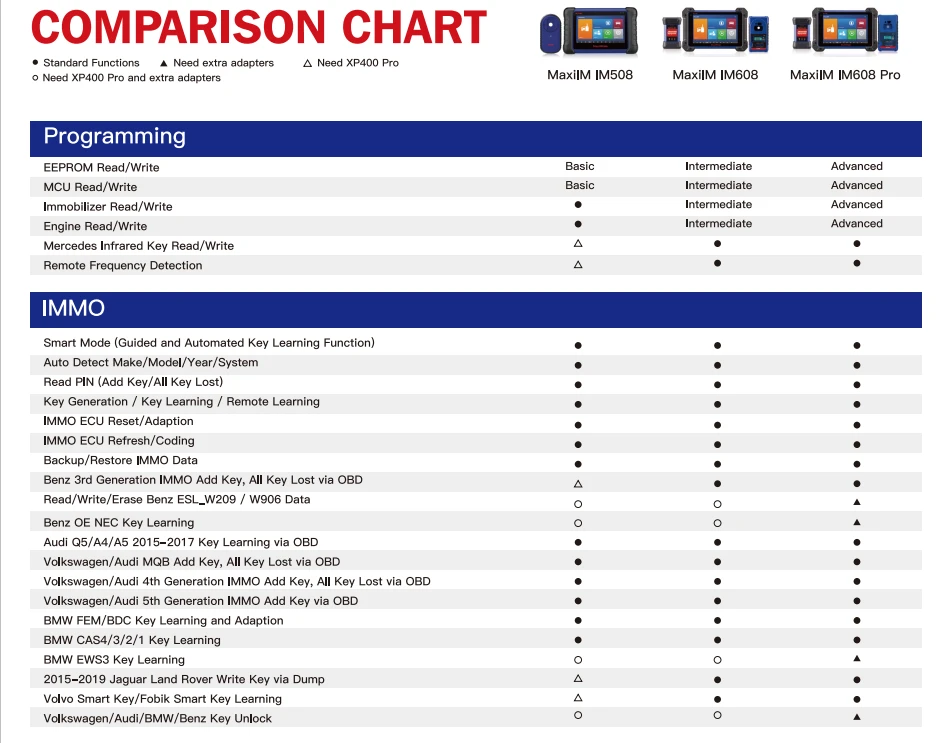

The Support List by Autel Key Programmer including Autel MaxiIM IM508 (Need XP400 Pro), Autel MaxiIM IM608, IM608 Pro. Please note some function need extra adapter.
Functions | Modes | EIS type | Supported EIS type |
Add key | OBD/on bench | EIS(CAN-line) | W164 -2008、W164 2009-、W166、W169、W172、W197、W204、W207、W209 2006-、W211、W212、W216、W218、W221、W246、W251 -2008、W251 2009-、W639/2009-、W906 |
EIS(K-line) | W202、W203、W208、W209、W210、W215(some supported)、W220、W230、W463、W639 | ||
All key lost | OBD | 3rd CAN EIS | W164 2009- 、W169、W172、W204、W207、W209/2006-、W211、W216、W251/2009-、W639/2009-、W906(use with G-BOX 8 time faster) |
On bench | 3rd Generation EIS: | W164 -2008、W164/2009-、W169、W172、W204、W207、W209/2006-、W211、W216、 W221、W251/2009-、 W639/2009-、W906(use with G-BOX 8 time faster) | |
On bench | EIS(K-line) | W202、W203、W208、W209、W210、W215、W220、W463、W639(use with G-BOX 8 time faster) | |
IMMO part replacement | OBD/on bench | EIS replacement (Read/write/erase) |
W164/-2008、W164/2009-、W166、W169、W172、W197、W204、W207、W209/2006-、W211、W212、W216、W218、W221、W246、W251/-2008、W251/2009-、W202(K)、W203(K)、W208(K)、W209(K)、W210(K)、W215 (K)、W220 (K)、W230 (K)、W463 (K)、W639 (K) |
OBD/on bench | ELV replacement (Read/write/erase) |
W204、W207、W208、W210、W212、W169(NEC)、W209(NEC)、W211(NEC)、W906(NEC)、W209(Motorola)、W211 (Motorola)、W906(NEC)、W639/2009-、W906(Motorola) |
