Autel IM508 IM608 V5.10 VW Advanced Mode Key Programming Guide

The V5.10 update for VW software on Autel IM508 & IM608 was released on 8/12/2021. Now the new version supports
MQB
IMMO IV
IMMO IV+MQB
key programming (Add Key & All Keys Lost) through online calculation.

The general steps are:
VW software installed>>Advanced mode>>Send request>>send the VIN number to the dealer>>Get the PIN code and CS code from the dealer>>Expert mode>>Manual input>>Add key(Key learning)/All Keys Lost(Make dealer key)

The detailed steps are:

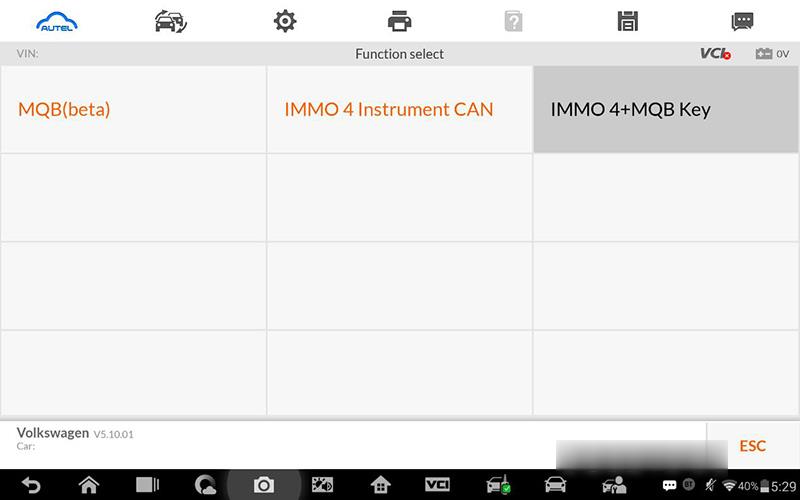

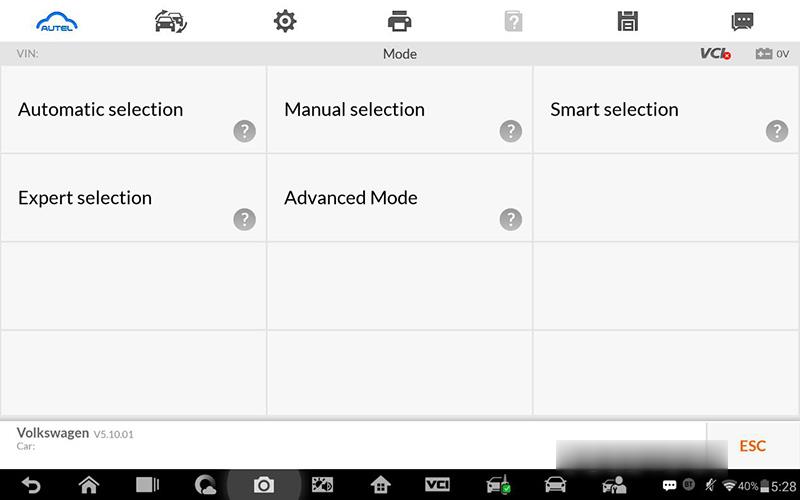

1.Go to Advance Mode

1)MQB

Advanced Mode>MQB(Beta)>Key learning
Advanced Mode>MQB(Beta)>All keys lost


2)IMMO IV

Advanced Mode>IMMO 4 Instrument CAN>Key learning
Advanced Mode>IMMO 4 Instrument CAN>All keys lost

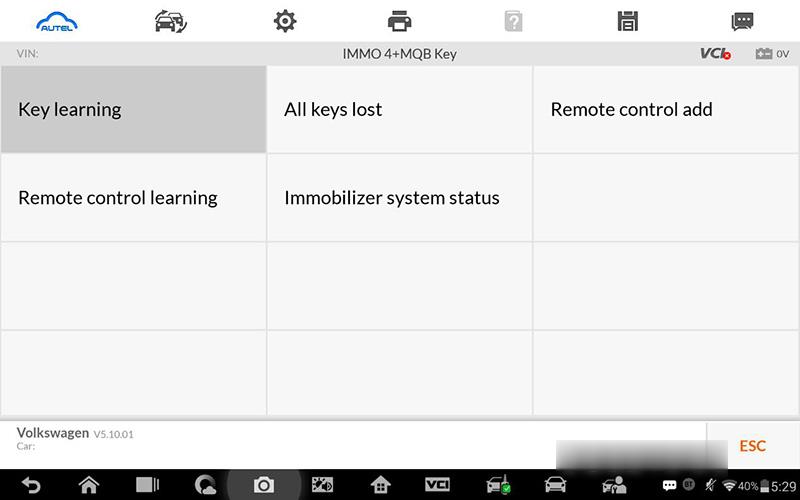

3)IMMO IV+MQB
Advanced Mode>IMMO 4 Instrument CAN>Key learning
Advanced Mode>IMMO 4 Instrument CAN>All keys lost


2.IMMO data from online calculation
1)Calculation request interface

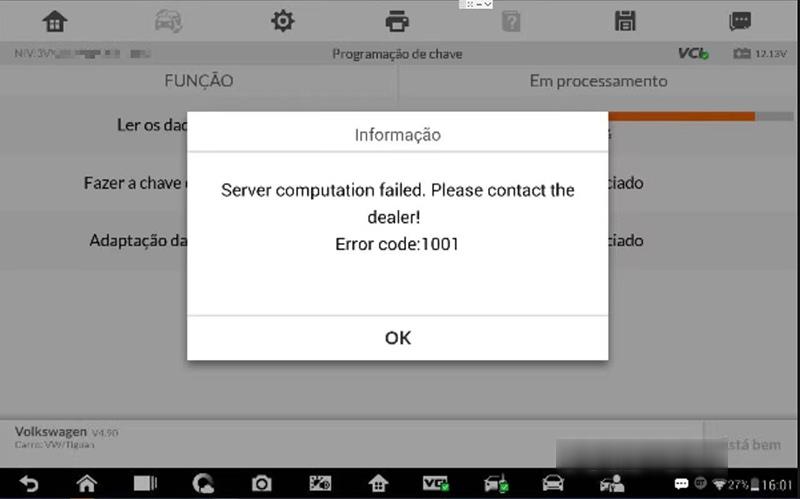

Sever computation failed. Please contact the dealer!
Error code:1001

2)Manually input PIN code and CS code to program key
a.MQB
Make dealer key:

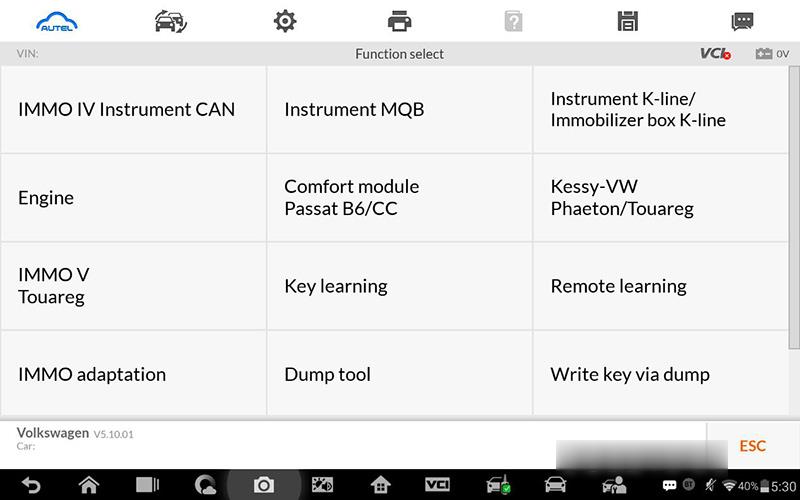

Expert Selection>Instrument MQB >VDO NEC 35XX>Make dealer key

Key learning:
Expert Selection>Instrument MQB >VDO NEC 35XX>Key learning

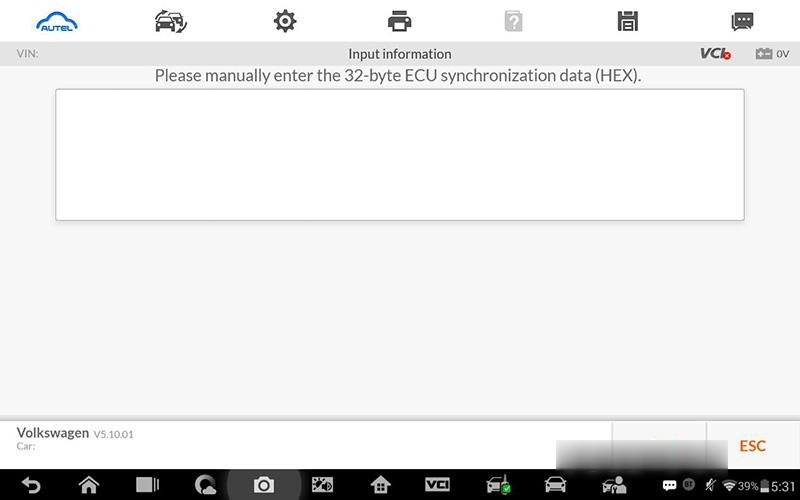

MQB make dealer key input CS code interface
(Without original key then has to input the 32 digits sync data)



MQB key learning input CS code interface

b.IMMO IV
Make dealer key:

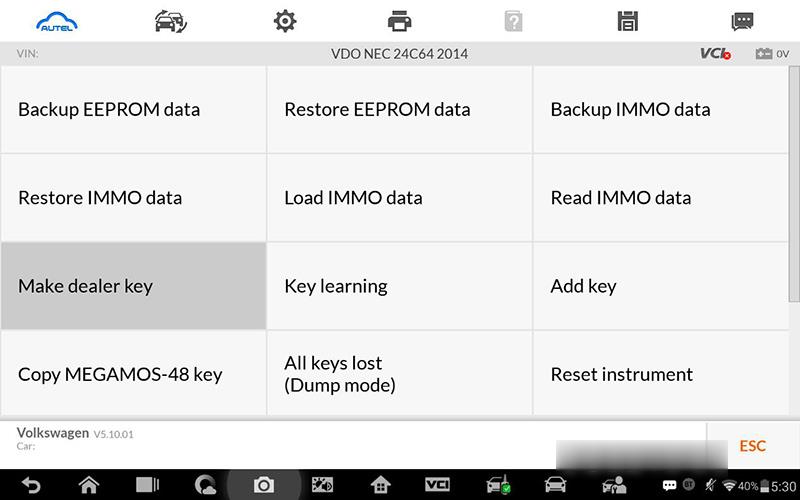

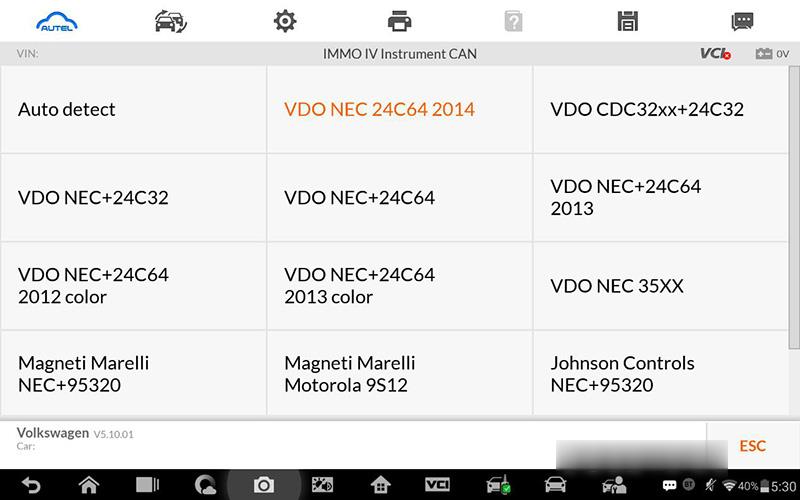

Expert Selection>IMMO IV Instrument CAN>VDO NEC 24C64 2014>Make dealer key

Key learning:
Expert Selection>IMMO IV Instrument CAN>VDO NEC 24C64 2014>Key learning

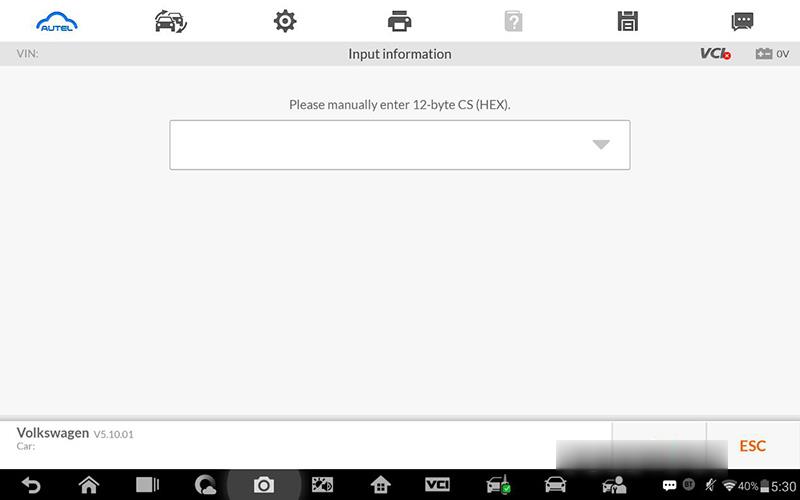

IMMO IV make dealer key input CS code interface

IMMO IV Key learning input pin code and cs code interface

c.IMMO IV+MQB
Make dealer key:

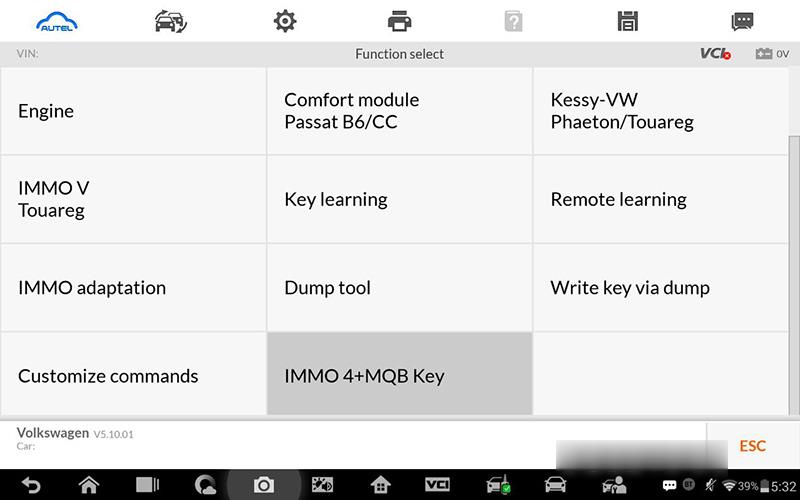

Expert Selection>IMMO 4+MQB key >Generate dealer key

Key learning:
Expert Selection> IMMO 4+MQB key >Key learning

IMMO IV+MQB make dealer key input cs code interface

IMMO IV+MQB Key learning interface

Hope this could help!
