The tutorial of how to use OBDSTAR MS80 Diagnostic Tool to do Throttle match for a 2018 Suzuki GW250 motorcycle.

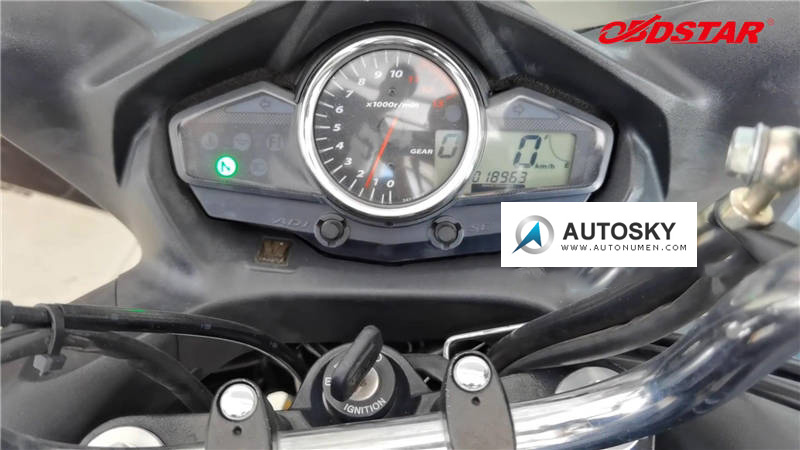

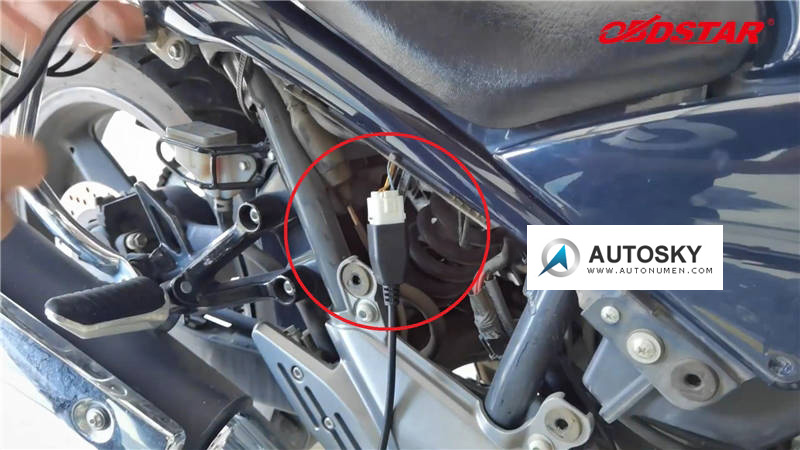

Using M012 cable to connect MS80 with GW250, as the pictures:

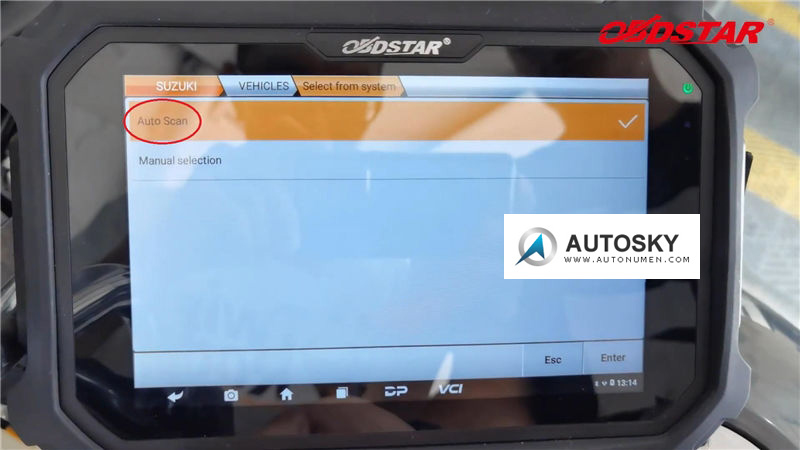

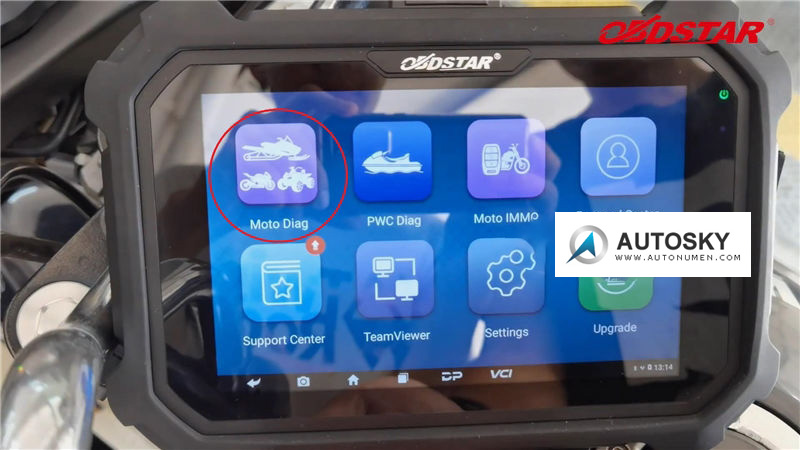

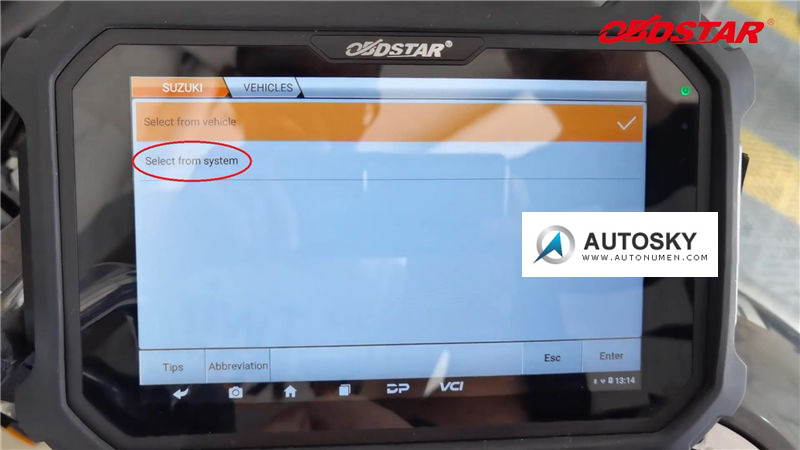

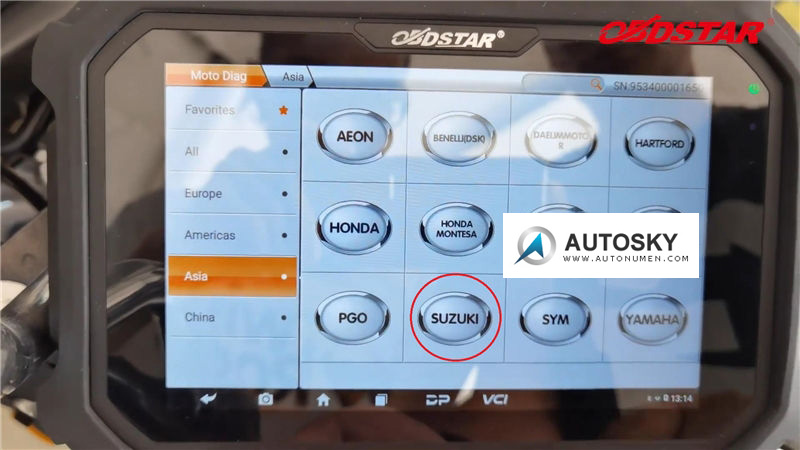

DiagProgram >> Moto diag >> Asia >> Suzuki >> Suzuki V30.03 >> Select from system >> Auto scan
Wait scanning until finished…

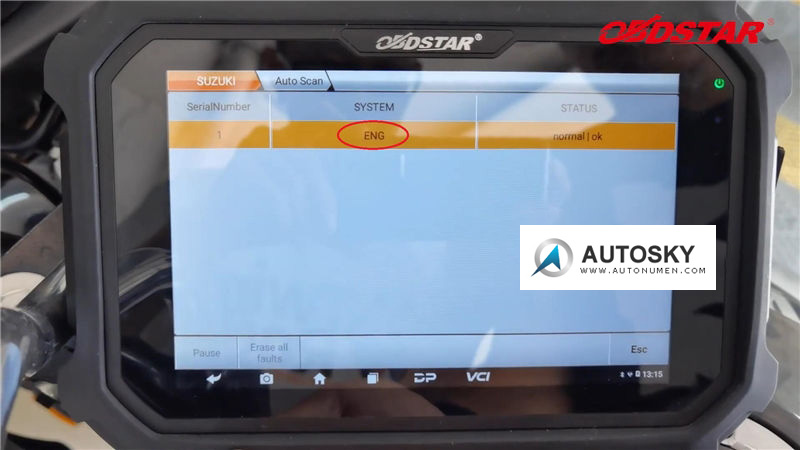

Press “ENG” system.

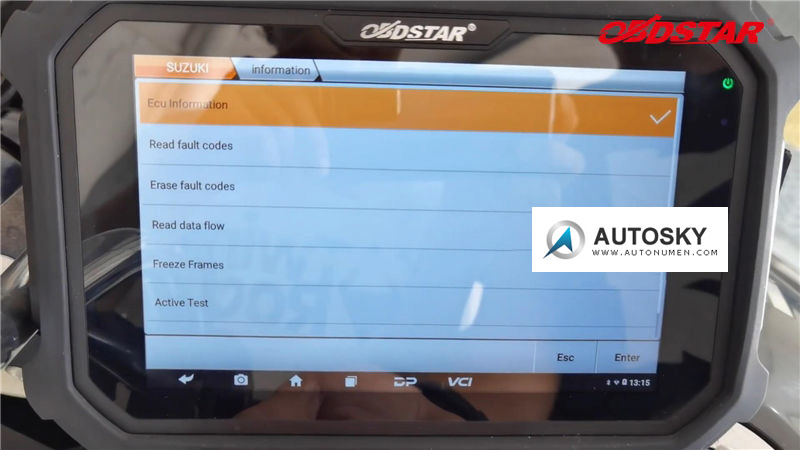

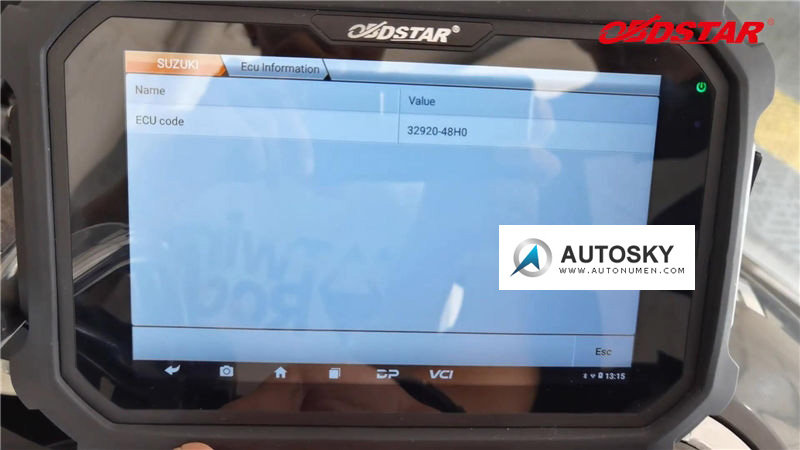

To check ECU code, can press ”ECU information”.

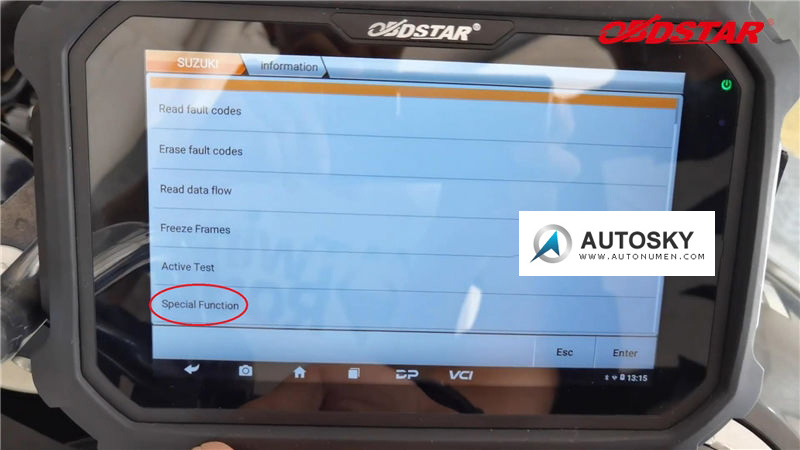

Go on to press

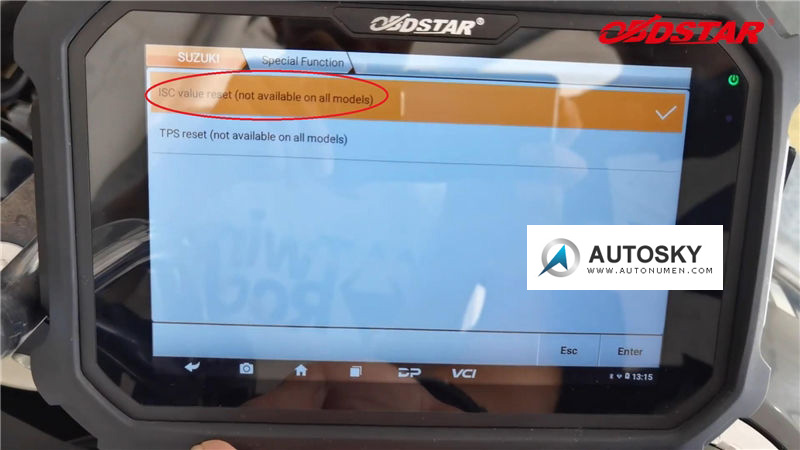

Special function >> ISC value reset (not available on all models) >> Enter

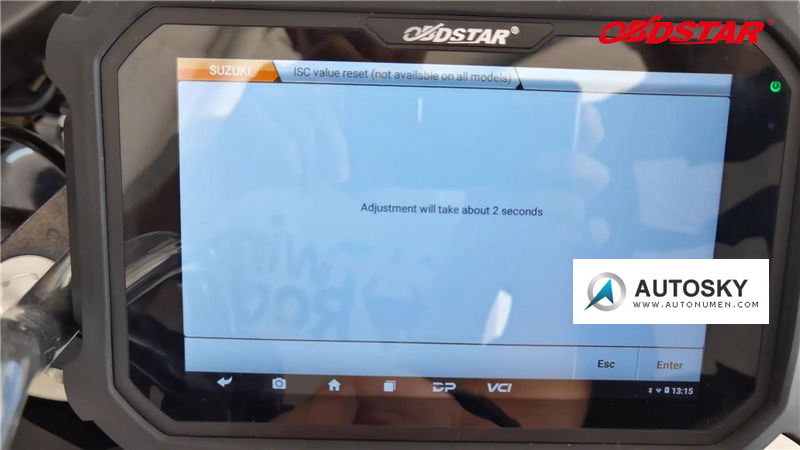

Adjustment will take about 2s, press “Enter”.

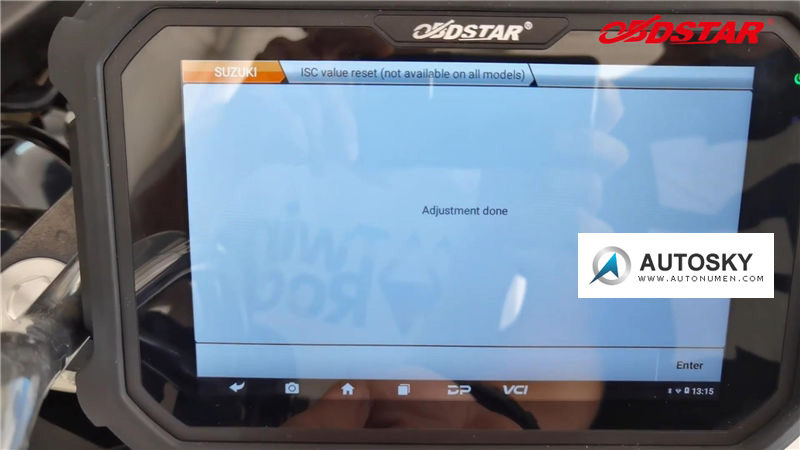

Adjustment done, press “Enter” to exit.

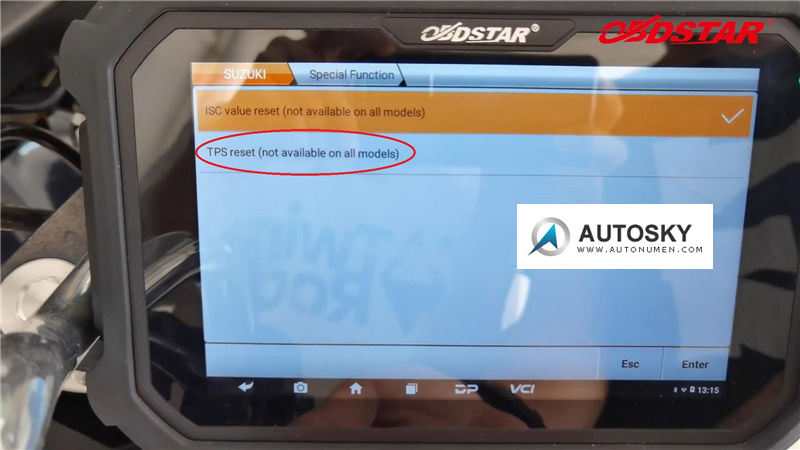

TPS reset (not available on all models) >> Enter
Adjustment will take about 2s, press “Enter”.
Adjustment done, press “Enter” to finish.
Completed!
OBDSTAR MS80 Scan Tool is specialized designed for motorcycle diagnosis, which supports to read & clear codes, data flow, action test, coding, etc.
More questions welcome to contact us.
